The YL4020 AC 5-Axis Waterjet Cutting Machine offers 4000 x 2000 mm cutting travel on a 5300 x 2900 mm gantry platform. 0-65° cutting-head swing, ±0.1 mm cutting accuracy and ±0.01 mm repeatability, AC Servo System control, 450 MPa standard working pressure (600 MPa optional) and CE certification.
| Quantity: | |
|---|---|
YL4020
Yuanli
YL4020
Application and machine selection
The YL4020 AC is a single-head gantry waterjet with 4000 × 2000 mm cutting travel. It is suited to larger stone panels, metal plate profiles and other work that needs more cutting space.
Its AC five-axis head provides a 0–65° swing range for controlled-angle cutting. Choose the configuration around your material, finished geometry and handling requirements.
Compare cutting travel with the largest outline you need to cut, including its orientation and workholding.
Distinguish the 4000 × 2000 mm cutting travel from the 5300 × 2900 mm platform dimensions.
Allow space for loading, the pump, the control cabinet and maintenance access when planning your workshop.
Send a drawing if you need bevels, internal openings or a customised setup.
Standard cutting head

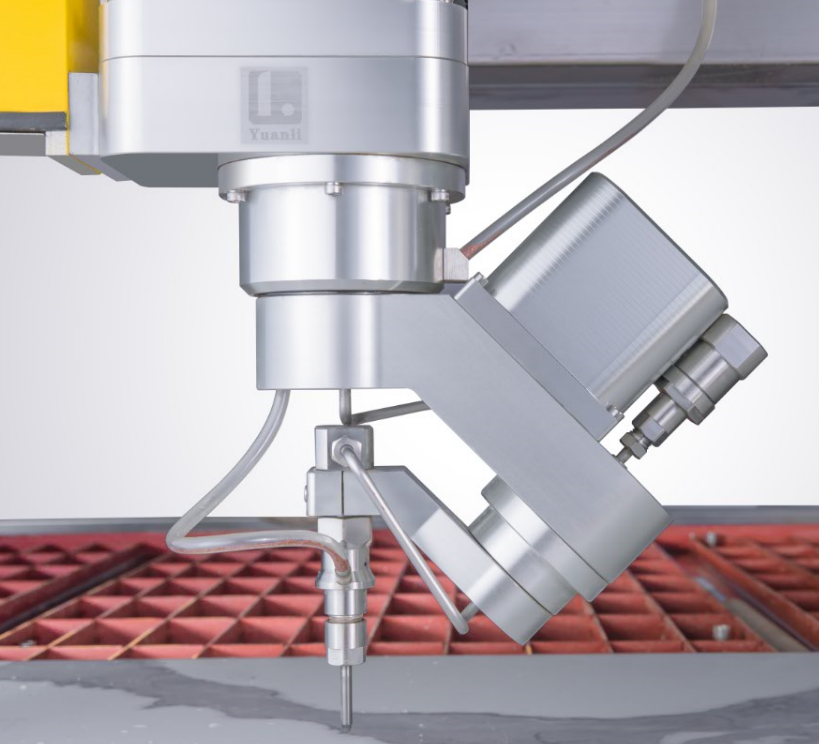

The AC five-axis waterjet cutting head is standard on this model. Its angular movement supports bevel and mitre work alongside conventional profile cutting.
Share the required angle, material thickness and finished shape so the cutting setup can be reviewed against your application.
Scope of configuration
| AC five-axis waterjet head | Standard. Cutting-head swing range: 0–65°. |
|---|---|
| Bridge saw function | Optional. Request a configuration review for combined saw and waterjet work. |
| Milling function | Optional. Confirm the required machining operations in your enquiry. |
| Drilling function | Optional. Confirm hole requirements and the proposed drilling configuration. |
Optional equipment is specified for the agreed project configuration. Ask for the scope of supply in the quotation.
Existing model specifications
| Model | YL4020 |
|---|---|
| Platform dimensions | 5300 x 2900 mm |
| X travel | 4000 mm |
| Y travel | 2000 mm |
| Machine type | Gantry |
| Cutting heads | 1 |
| Cutting-head swing range | 0-65° |
| Cutting accuracy | ± 0.1 mm |
| Repeatability | ± 0.01 mm |
| Fast positioning accuracy | ± 0.025 mm |
| Z travel | 150 - 210 mm, customizable |
| CNC control system | AC Servo System |
| Power supply | 220 V / 380 V / 415 V, 50/60 Hz |
| Working pressure | 450 MPa standard, up to 600 MPa optional |
| Typical materials | Metal, Composite materials, Sanitaryware, Ceramic, Stone, Sintered stone |
| Certification | CE |
Material and geometry examples
For a review of your own part, send its material, thickness and drawing together with the required finish.
Selection questions
The cutting travel is 4000 × 2000 mm; the platform dimensions are 5300 × 2900 mm. Use the travel to assess your part envelope and request an installation layout for workshop planning.
Start with your largest required cut, its orientation and loading arrangements. If the work fits a smaller platform, compare the available space and project configuration before choosing a larger machine.
They are optional functions. The AC five-axis waterjet head is standard; request the additional processes you need so the quotation can identify their scope.

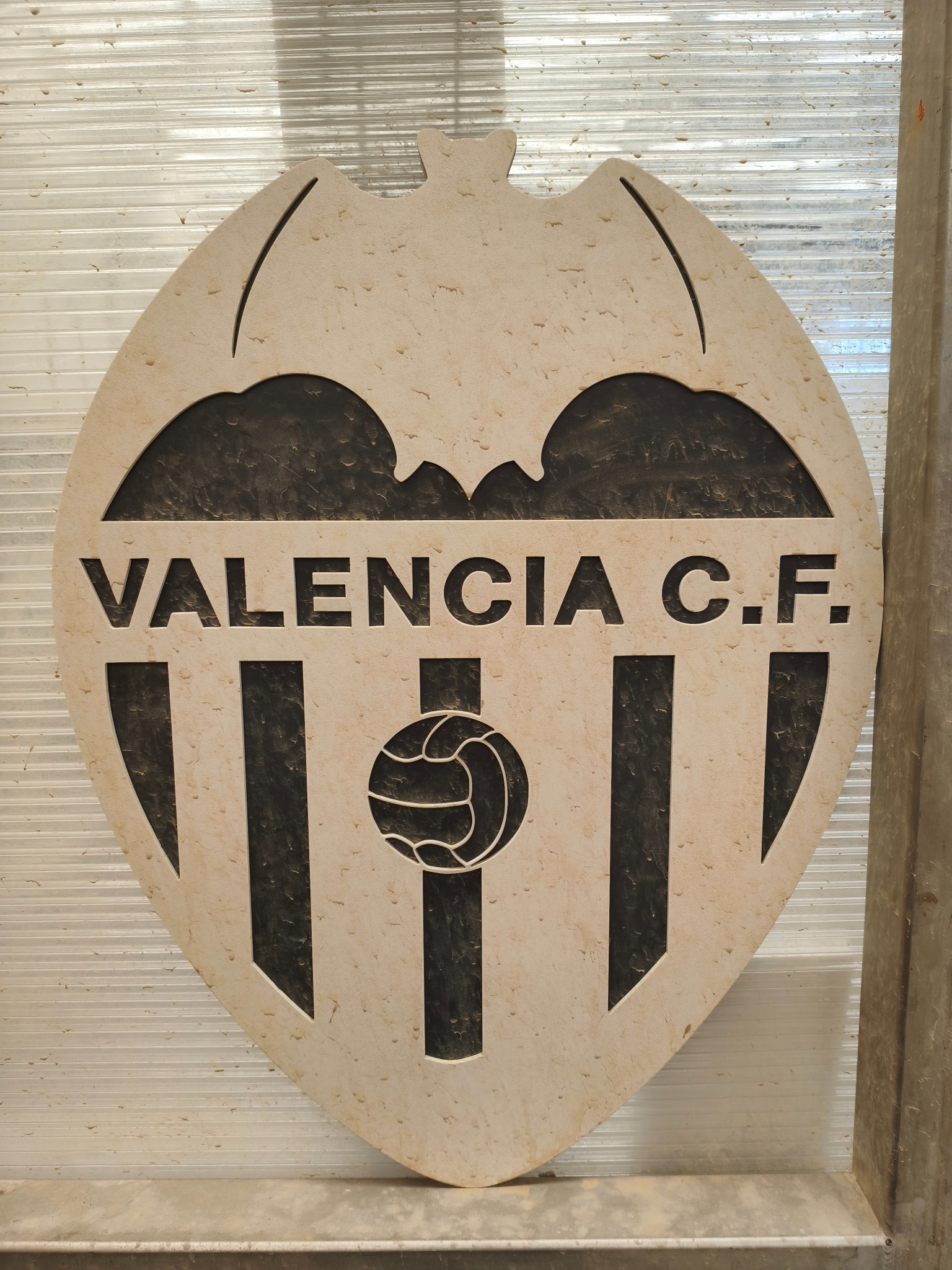

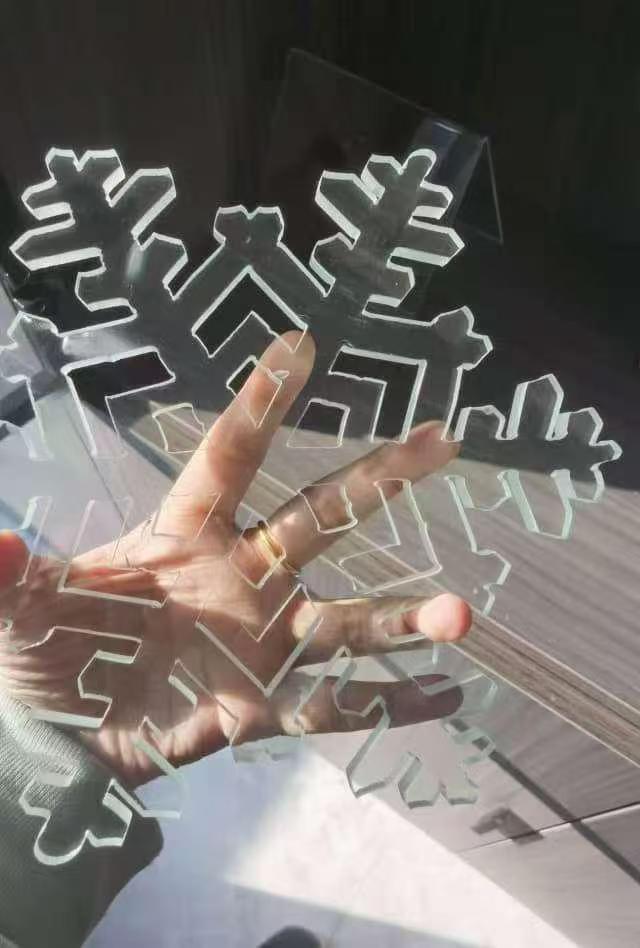

Include the material, thickness, finished shape and required angle. For the supplied examples, the materials are 10 mm glass and 25 mm ceramic; provide the details of your own work for a configuration review.
Send the material, thickness, largest workpiece dimensions, drawing or photo, required operations and delivery country. Include your target output and any workshop space constraints.
Discuss your application
Tell us what you need to cut, the material thickness and your required working area. We will review a suitable machine configuration with you.
