Purpose-built for stone fabrication facilities and countertop manufacturers, this 3020 5-axis AC water jet excels at miter cuts, sink cutouts and complex inlay patterns for stone processing. Powered by a 37kW drive system, it delivers 45-degree bevel cutting with ±0.1mm precision, creating seamless joints that require minimal hand finishing. Manufactured under ISO 9001 standards and built with a heavy-duty 4000kg frame, it ensures reliable 24/7 operational stability for stone production lines. It comes with on-site engineer commissioning and a 12-month core component warranty for stone processing partners worldwide.
Foshan Yuanli Precision Machinery Co., Ltd. is a professional waterjet cutting solution provider offering a full range of equipment for global industrial clients:
5-axis waterjet: Multi-angle cutting with articulated head, ideal for complex shapes and high-precision demands
3-axis waterjet: High precision and stable performance, suitable for a wide range of materials
Dual-head waterjet: Twin cutting head design for higher efficiency, saving time and labor costs
Gantry (bridge type) waterjet: Large cutting area and high rigidity, for heavy-duty and large-format cutting
Pure waterjet cutting: No abrasives and no heat-affected zone, for heat-sensitive and soft materials
We welcome global agent partners to grow together with us. We focus on key markets with strong growth potential, offering advanced technology, reliable quality, competitive pricing and high profitability for partners. Backed by comprehensive support and training, stable supply and spare parts availability, and customized solutions for local markets, we build long-term win-win partnerships.
Operating on a cold-cutting principle with zero thermal effect on workpieces, the Yuanli 3020 5-axis AC water jet is tailored for stone processing facilities and countertop fabrication shops requiring angled cutting and complex geometry work. The 5-axis AC cutting head supports ±60° continuous articulation, enabling 45° bevel cuts for seamless countertop joints, sink/faucet cutouts and decorative stone inlays that cannot be achieved in a single pass on 3-axis systems.
It covers all core stone production workflows: 45° bevel processing for quartz and sintered stone, kitchen countertop cutouts for sinks and faucets, marble and granite slab sizing, decorative stone inlay work and edge profiling. The cold-cutting process eliminates heat-affected zones, discoloration and material brittleness common with thermal cutting technologies, preserving the natural texture and structural integrity of stone materials.
The machine frame adopts welded steel construction normalized through stress-relief annealing to preserve structural stability during continuous high-load operation. All three linear axes use precision-ground ball screws and linear guide rails, paired with AC servo motors for closed-loop position control.

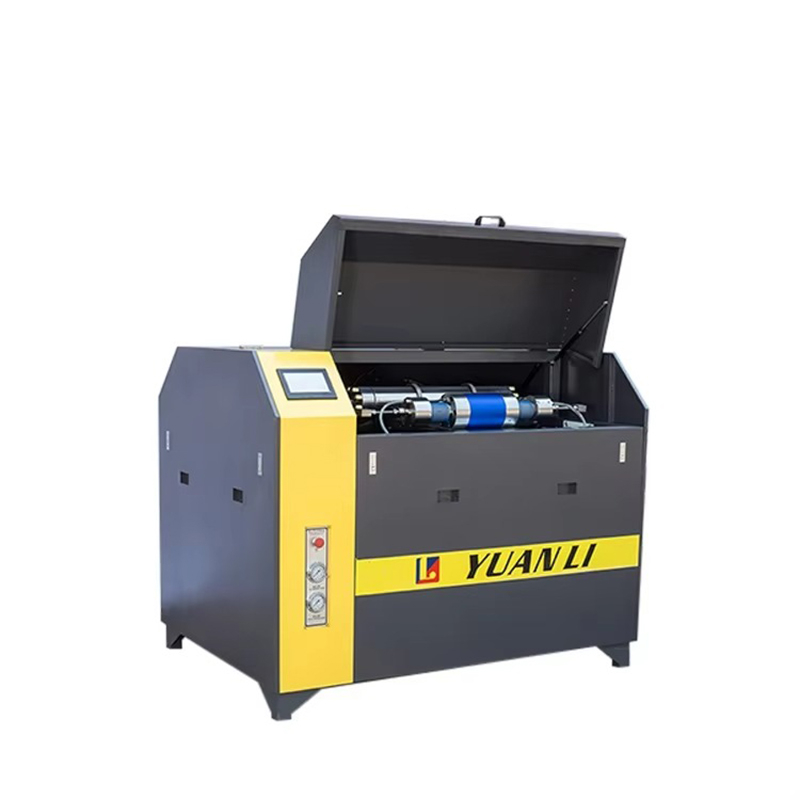

The intensifier pump delivers 420MPa operating pressure, with ceramic plungers and high-pressure seals engineered for extended service intervals. The 5-axis AC cutting head uses a direct-drive articulation system with zero-backlash gearing to maintain consistent angle accuracy across all cutting positions, ensuring uniform miter edges for seamless countertop joints.
The CNC control system supports DXF, DWG and NC file import, and is equipped with automatic nesting software optimized for stone slab layout to maximize material utilization and lower scrap rates. The abrasive delivery system uses a gravity-fed hopper with precision metering to ensure steady abrasive flow during cutting operations.
Technical Index | Parameter | Technical Index | Parameter |
Rated Voltage | 380V (220V/415V optional) | Core Components | PLC, Motor, Intensifier Pump |
Warranty Duration | 12 Months | Rated Power | 37kW (49.62hp) |
Manufacturing Base | Foshan, China | Machine Weight | 4000 kg |
Brand | Yuanli | After-sales Support | On-site field service available |
Product Model | 5-Axis Water Jet Cutting Machine | Working Table Dimensions | 3000mm × 2000mm |
Control System | AC Servo CNC System | Cutting Accuracy | ±0.1mm |
Repeat Positioning Accuracy | ±0.01mm | Rapid Positioning Accuracy | ±0.025mm |
Power Frequency | 50/60Hz | Certifications | ISO 9001, CE |
Axis Configuration | 5-Axis AC Cutting Head | Maximum Cutting Head Angle | ±60° |
Maximum Operating Pressure | 420MPa | Abrasive Flow Rate | 200-500g/min |
Nozzle Diameter | 0.26-0.35mm | Focusing Tube Inner Diameter | 0.76-1.02mm |
X-axis Travel Speed | 0-15m/min | Y-axis Travel Speed | 0-15m/min |
Z-axis Stroke | 200mm | Positioning Structure | Ball Screw + Linear Guide |
For stone and ceramic applications, the machine cuts marble and granite up to 200mm thick, sintered stone and porcelain slabs up to 120mm thick, and glass and ceramic materials up to 100mm thick. The 5-axis articulation enables fabricators to cut miter edges for seamless countertop joints without secondary edge processing, cutting total processing time per workpiece by 30-40% compared with 3-axis cutting followed by manual finishing. The cutting head maintains a consistent standoff distance across angled cuts, producing uniform edge quality across all surfaces.
For metal processing, the system cuts mild steel up to 150mm thick, stainless steel up to 120mm thick, aluminum and copper alloys up to 100mm thick, and composites including carbon fiber and laminated materials without delamination. The bevel cutting capability supports weld preparation cuts at standard 15° to 45° angles, eliminating secondary grinding operations in structural steel fabrication.
The system maintains ±0.1mm linear positioning accuracy across the full 3000×2000mm working area, with ±0.01mm repeatability for consistent quality across production batches. The 5-axis head maintains ±0.1° angle accuracy across all articulation positions, ensuring uniform bevel angles across large stone slabs. These tight tolerances support precision assembly requirements for seamless stone countertop installation.
The 37kW intensifier pump supports continuous 24-hour operation, with a recommended 15-minute cool-down period after 8 hours of uninterrupted cutting. Focusing tubes offer 80-120 hours of cutting service before replacement; high-pressure seals require servicing every 500-600 operating hours. The automatic nesting software improves material utilization by 15-25% compared with manual layout, reducing material waste in high-volume stone production environments.
Each machine includes on-site installation and commissioning by factory-trained technicians, plus 3-5 days of operator training covering machine operation, basic maintenance and cutting parameter optimization for stone processing. Remote diagnostic capabilities allow service engineers to troubleshoot control system issues via internet connection, reducing downtime for software-related problems.
The machine comes with a 12-month warranty covering manufacturing defects in materials and workmanship, with extended warranty packages available for purchase. Spare parts are stocked in regional warehouses, with standard wear parts available for shipment within 48 hours of order confirmation. Technical support is available via phone, email and video call during standard business hours.
It processes stone including marble, granite, quartz and sintered stone; metals including mild steel, stainless steel, aluminum, copper and brass; and other materials such as glass, ceramics and composites. Material-specific cutting parameters are preloaded in the control system for immediate use.
Maximum thickness differs by material: 200mm for marble and granite, 120mm for sintered stone, and 100mm for glass and ceramics. Thicker materials can be processed by reducing travel speed.
The standard configuration runs on 380V 50/60Hz three-phase power. 220V and 415V configurations can be ordered as factory options at the time of purchase.
Standard production lead time is 30-45 working days from receipt of deposit, depending on order volume and customization requirements. Shipping duration varies by destination port.
On-site training includes machine startup and shutdown procedures, control system operation, file preparation and nesting, routine maintenance procedures and basic troubleshooting. Additional training sessions can be arranged upon request.
