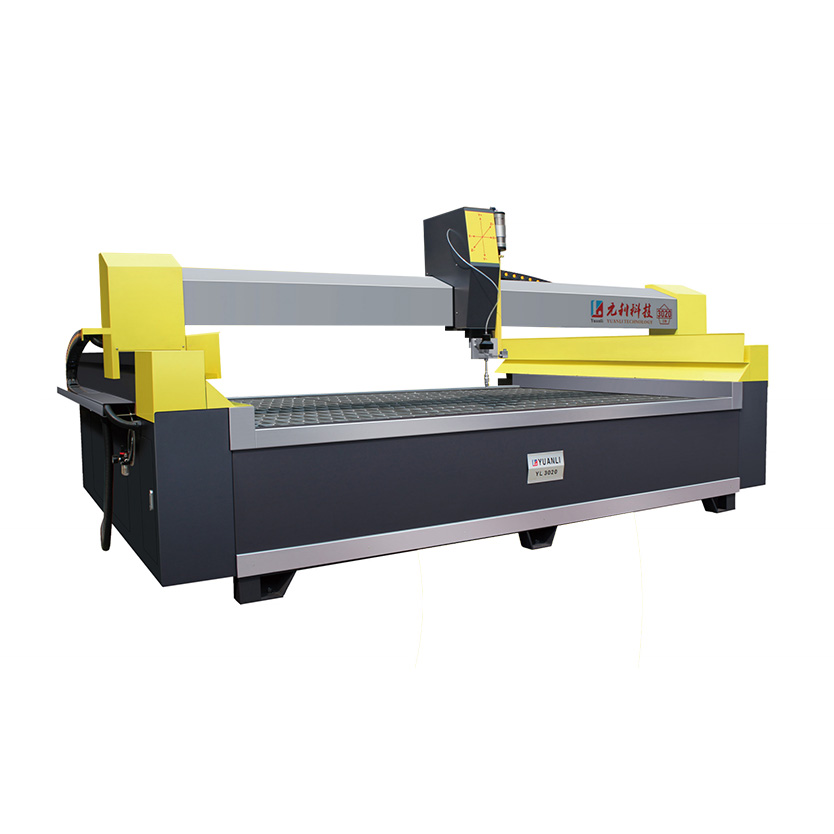

Customizable 3 Axis Cutting Platform
The traditional three-axis waterjet isa non-negligible part of the waterjet development process, and it is also one of the fastest and most stable products for waterjet cutting.
1. 3 axis double head,Complete double work at one time (Four head Customizable).
2. Close view of 3-axis cutting head.
TECHNICAL PARAMETERS
Model | YL1313 | YL2015 | YL2515 | YL3015 | YL3020 | YL4020 |
Institutional Style | Cantilever | Cantilever/Gantry | Cantilever/Gantry | Gantry | Gantry | Gantry |
Platform dimensions | 2700×2200mm | 3000×2900mm | 3500×2900mm | 4300×2500mm | 4300×2900mm | 5300×2900mm |
3300×2500mm | 3800×2500mm | |||||
Travel | 1200mm | 2000mm | 2500mm | 3000mm | 3000mm | 4000mm |
1200mm | 1500mm | 1500mm | 1500mm | 2000mm | 2000mm | |
150mm-210mm Customizable | ||||||
CNC control system | AC Servo System | |||||
Cutting accuracy | ±0.1mm | |||||
Repeatability | ±0.01mm | |||||
Fast positioning accuracy | +0.025mm | |||||
Power | 220V/380V/415V 50/60Hz | |||||
Elevating your facility's capabilities requires equipment that goes beyond basic functionality. This cutting platform is engineered with distinct advantages that directly impact your operational efficiency and bottom line.
Accelerated Throughput: The dual-head configuration allows simultaneous processing on two separate workpieces, effectively doubling your daily output without expanding the machine's footprint.
Scalable Architecture: For facilities with extreme volume demands, the system can be custom-engineered with up to four cutting heads, adapting fluidly to your scaling operations.
Unyielding Structural Integrity: Constructed with heavy-gauge industrial steel, the framework absorbs micro-vibrations, ensuring the cutting stream remains perfectly vertical and true.
Compact Footprint, Massive Output: Despite its immense cutting power, the 3-axis head is designed with a compact profile, allowing for nimble movements and maximizing the usable cutting envelope.
Future-Proof Investment: The modular nature of the cantilever and gantry designs means your equipment can adapt to evolving material trends and thicker substrates over its lifespan.
In high-stakes industrial manufacturing, tolerance control is the dividing line between profit and scrap. This platform guarantees the exactness your clients demand, ensuring that every component meets rigorous quality standards.
Micron-Level Accuracy: Achieving a cutting accuracy of ±0.1mm ensures that every interlocking part or intricate design aligns flawlessly upon assembly.
Flawless Repeatability: With a repeatability variance of just ±0.01mm, batch production runs remain perfectly consistent from the first piece to the ten-thousandth.
Dynamic Servo Control: The responsive AC Servo System translates digital commands into fluid physical motion, eliminating the jerky transitions that cause edge striations.
Zero-Defect Manufacturing: By maintaining such rigorous precision, the platform drastically reduces material waste and eliminates costly rework cycles.
Labor costs and machine idle times are silent profit killers. This system introduces a new paradigm of automated efficiency to your shop floor, allowing you to maximize output with minimal manual intervention.
Synchronized Multi-Head Cutting: The standard dual-head setup executes twin toolpaths simultaneously, slashing your cycle times by 50% on repetitive jobs.
Lightning-Fast Transit: A rapid positioning accuracy of +0.025mm means the cutting head moves between cut points with blistering speed and absolute certainty.
Reduced Operator Intervention: Automated positioning and synchronized cutting drastically lower the manual handling required per part.
Customizable Four-Head Array: For extreme high-volume contracts, upgrading to a four-head system transforms a single operator station into a massive production hub.
No two production facilities face the exact same material challenges. We offer an expansive matrix of sizes to ensure a perfect fit for your specific spatial and material requirements.
Expansive Model Range: From the agile YL1313 to the massive YL4020, select the exact footprint that maximizes your floor space return on investment.
Massive Working Envelopes: Accommodating platform dimensions up to 5300×2900mm allows for the seamless processing of oversized commercial sheets without repositioning.
Tailored Z-Axis Clearance: The standard 150mm-210mm Z-axis travel can be fully customized, providing the necessary clearance for exceptionally thick blocks or multi-layered material stacks.
Versatile Travel Options: With X/Y travel ranging from 1200mm up to a sprawling 4000mm, you gain the flexibility to handle both micro-components and architectural-scale panels.
The lifespan and sustained accuracy of any cutting equipment depend entirely on the bones of the machine. We utilize uncompromising structural designs to guarantee decades of reliable service.
Gantry and Cantilever Options: Choose the agile accessibility of a Cantilever design for easy material loading, or the unshakeable dual-sided support of a Gantry system for heavy-duty processing.
Vibration-Dampening Chassis: The sheer mass and metallurgical composition of the frame dissipate kinetic energy, preventing harmonic vibrations from reaching the cutting nozzle.
Wear-Resistant Guideways: Precision-ground linear guides ensure that even after thousands of hours of continuous operation, the friction remains negligible and the motion remains pristine.
Thermal Stability: The structural components are treated to resist thermal expansion, ensuring your tolerances hold true even during extended, multi-shift operations.
Consolidating your equipment roster saves capital and floor space. This 3-axis platform is an omnivorous cutting solution capable of processing an astonishing array of substrates.
Heavy Metals Processing: Effortlessly slice through thick aluminum, hardened steel, copper, and titanium without creating heat-affected zones (HAZ) that warp the material.
Delicate Non-Metals: Achieve splinter-free cuts on wood, shatter-free edges on glass, and pristine finishes on acrylics and advanced composites.
Stone and Tile Mastery: Perfect for architectural applications, cutting intricate inlays in marble, granite, and engineered stone with zero micro-fracturing.
Cross-Industry Application: Whether you are fabricating aerospace components, custom furniture, or industrial signage, this single platform adapts to your diverse contract requirements.
Advanced machinery should not require a team of software engineers to operate. Our intuitive control architecture bridges the gap between complex designs and effortless execution.
Intuitive AC Servo Interface: The control system provides real-time feedback and smooth acceleration curves, preventing mechanical shock during sudden directional changes.
Seamless Software Integration: Easily import toolpaths from industry-standard CAD/CAM environments (such as AutoCAD or Fusion360), streamlining the transition from the design office to the production floor.
Rapid Operator Onboarding: The logical, user-centric control panel flattens the learning curve, allowing new technicians to achieve expert-level results in a fraction of the time.
Diagnostic Monitoring: Built-in system diagnostics continuously monitor servo health and positioning data, alerting operators to maintenance needs before they impact production.
Procuring industrial equipment is the beginning of a long-term partnership. We safeguard your investment with a comprehensive, globally responsive support network designed to keep your operations running smoothly.
One-Stop Service Ecosystem: From initial facility consultation and customized manufacturing to final installation, we manage the entire deployment process.
Rapid Technical Support: Our dedicated engineering team is on standby to provide immediate troubleshooting, minimizing potential downtime and keeping your lines running.
Comprehensive After-Sales Care: Benefit from scheduled maintenance protocols, readily available replacement parts, and continuous system optimization advice.
Tailored Customization Solutions: As your business evolves, our technical team remains available to engineer retrofits or upgrades, ensuring your machine grows alongside your enterprise.
Partnering with Foshan Yuanli Precision Machinery Co., Ltd. means aligning your production with a legacy of engineering excellence. We do not just build machines; we engineer competitive advantages for our clients.
Decades of Specialized Expertise: As a premier manufacturer deeply rooted in ultra-high-pressure CNC technology, our research and development drive the industry forward.
Stringent Quality Assurance: Every platform undergoes rigorous laser-interferometer testing to verify absolute positioning accuracy before it ever leaves our facility.
Global Footprint: Our equipment powers top-tier fabrication facilities worldwide, a testament to our unwavering reliability and international compliance standards.
Direct Manufacturer Value: By sourcing directly from our manufacturing hub, you secure elite-tier industrial machinery at a highly competitive investment point.
