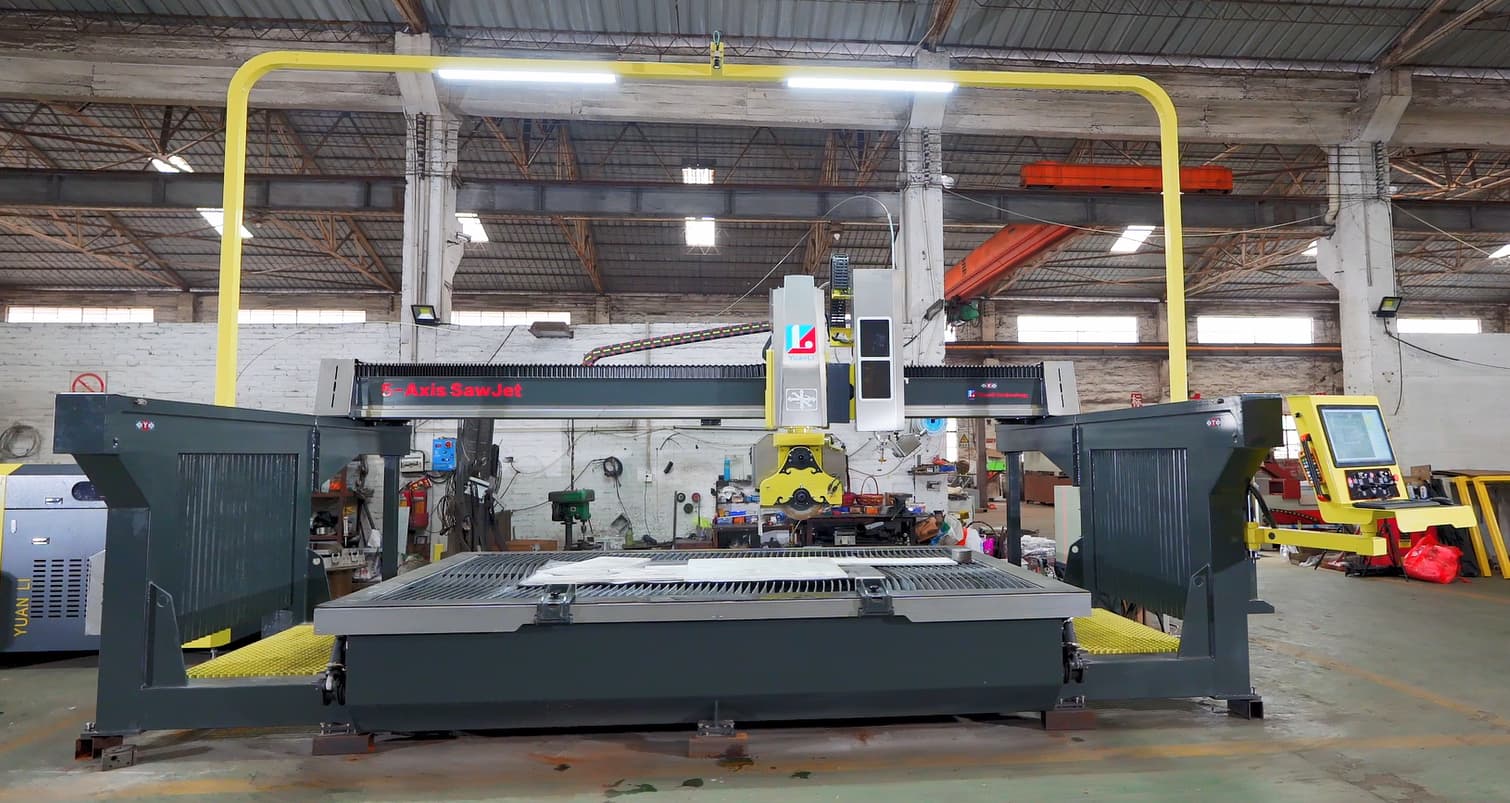

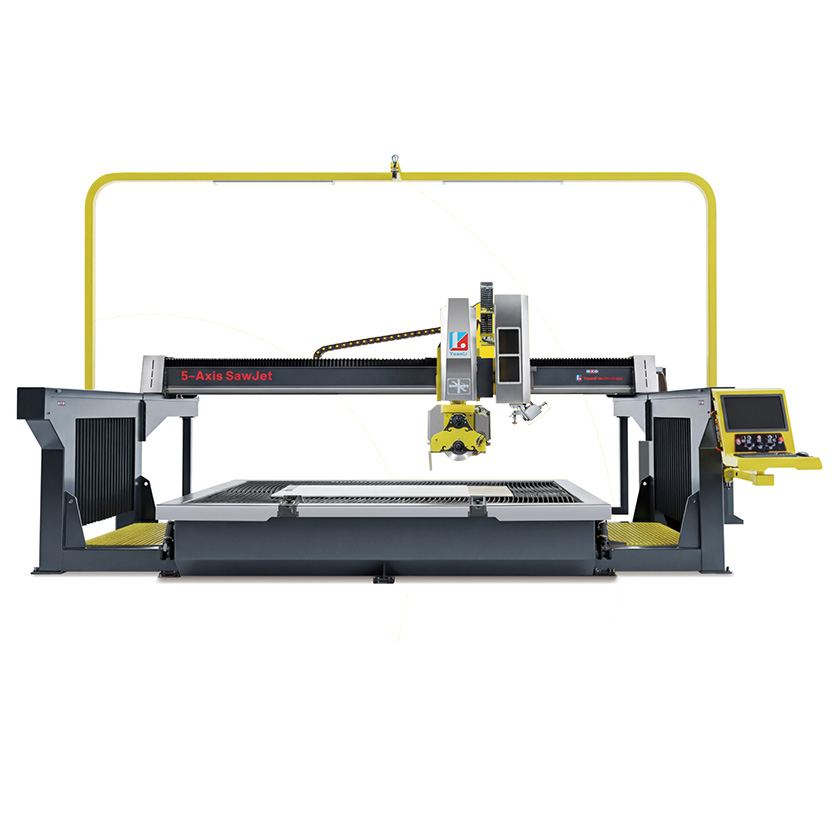

YL3620 sawjet CNC/5Axis
This machine can not only perform efficient Line cutting by Blade Saw, but also can process various curves and small angles by Water jet. It can process stones with high hardness , such as sintered stone, porcelain, ceramic, granite etc. Making it easy for stone chamfering, basin hole and internal angles processing. The processing method of this machine is flexible and convenient, with a high degree of automation and simple operation. It is currently the most advanced stone processing machine in the stone industry.
TECHNICAL PARAMETERS：
Model | YL3620 sawjet CNC/5Axis |
|---|---|
Remarks：standard configuration | 1. Table can flip to 85 degree. 2. Water tank and machine chassis are hot-dip galvanized. 3. Electric control box is sealed and equipped with an industrial air conditioner |
Control system | Quality Industry computer + RTCP CNC controller + CNC software(WEIHONG) + YUHAI Servo Motor |
Servo driver and motor | Weihong |
X.Y. Z-axis Transmission | X-axis adopts Taiwan #35 Linear Guide Rail + helical rack and gear + planetary reducer. Y-axis adopts Taiwan #30 Linear Guide Rail + helical rack and gear. Z-axis adopts Taiwan #45 Linear Guide Rail+ Ball screw+ planetary reducer. |
X axis speed | 40m/min |
Y axis speed | 30m/min |
Z axis speed | 8m/min |
Max. Saw blade cutting size (mm) | L3600 x W2000 x H90 |
Max. water jet cutting size (mm) | L3300 x W2000 x H60 |
Work schedule (mm) | X:3660Y:2250 Z:320 |
Blade diameter (mm) | ₵350-400 |
Cutting disc flange diameter (mm) | ₵50 |
Saw blade motor power (kw) | 22 (Self-developed five-axis specialized permanent magnet main motor with Frequency) |
Saw blade speed (r/min) | 0-4000 |
Waterjet motor power (kw) | 37 |
Total power (kw) | 69 |
Dimensions (mm) | 5800x 3950x3960 |
Dimension With Front Sliding Door(Optional) (mm) | 6250x 4850x3960 |
Water consumption (m³/h) | 3 |
Air pressure required (Bar) | 6 |
Total weight (Kg) | 7520KG |
Standard configuration： (1) Mono-block Structure with Man-Machine interaction(√) (2) With A Camera, Photo layoutfunction(√) (3) With Automatic laser measuring probe for thickness(√) (4) With An automatic Tool Setting Gauge(√) (5) With an industrial computer and a touch-screen.(√) (6) 22kw 5-axis special permanet magnet motor, which is 40% power saving.(√) (7) With Automatic lubrication system (√) (8) This Worktable can be Flipped over 85°, easy to load plate (√) (9) Vein Matching Function(√) (10) Software update for free(√) | |
Optional: (1) Front sliding doors with power off protection safety lock | |
QUOTATION ( FOB G u a n g z h o u PRICE): USD7,2000 OPTIONAL 1 (4 pieces of front sliding doors): +USD2,000 OPTIONAL 2 (1 . 5 years free spare parts warranty, excluding wear and tear parts)：+USD3,500 | |

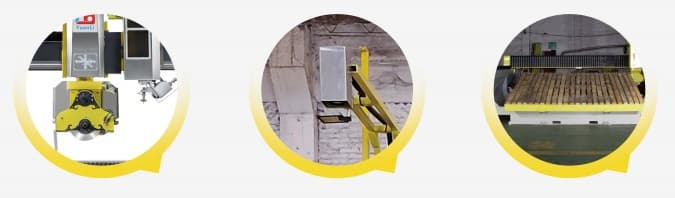

FEATURES:
1. With high voltage system
 | |
Power | Chinatop 3 motor 37KW |
Oil pump discharge capacity | 80ML/R |
Flow | 3.7L/min |
Nozzle | 0.33mm |
Rated pressure | 450Mpa/Psi |
Working pressure | 320-380Mpa/Psi |
Boost ratio | 24:1 |
Inner hole size of sand tube | 1.02 mm |
Max. sand qty | 0-350g/min |
Max. stroke | 50times/min |
power | 380V three phase industrial power |
Cooling | High air volume fan with heat sink |
2. With Automatic Sand-feeding system
Capcity：100 KL Working Pressure：0.2-0.3MPa This system provides a sand storage function for waterjet cutting machine, automatically transferring abrasive to the sand pan, which is easy to operate and can improve the automation level of the equipment and reduce the labor intensity of operators. The 100-liter volume ensures the required amount of sand for cutting continuously for 200 to 300 minutes. |  |
|---|---|

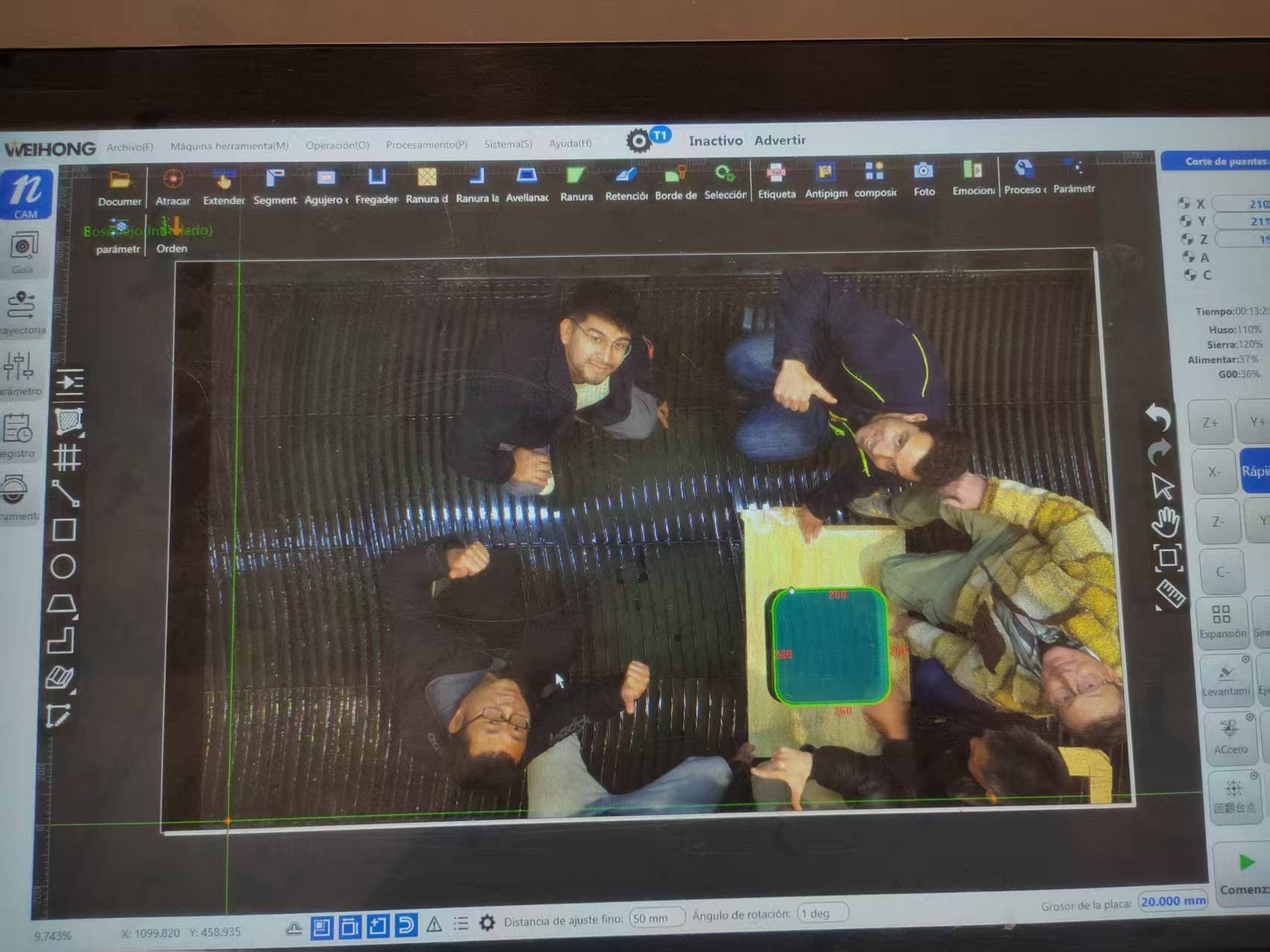

3. This machine is equipped with an industrial camera to catch an image of the plates on the workbench. Operators can place the drawing design on the plates and program on it.
 | ||

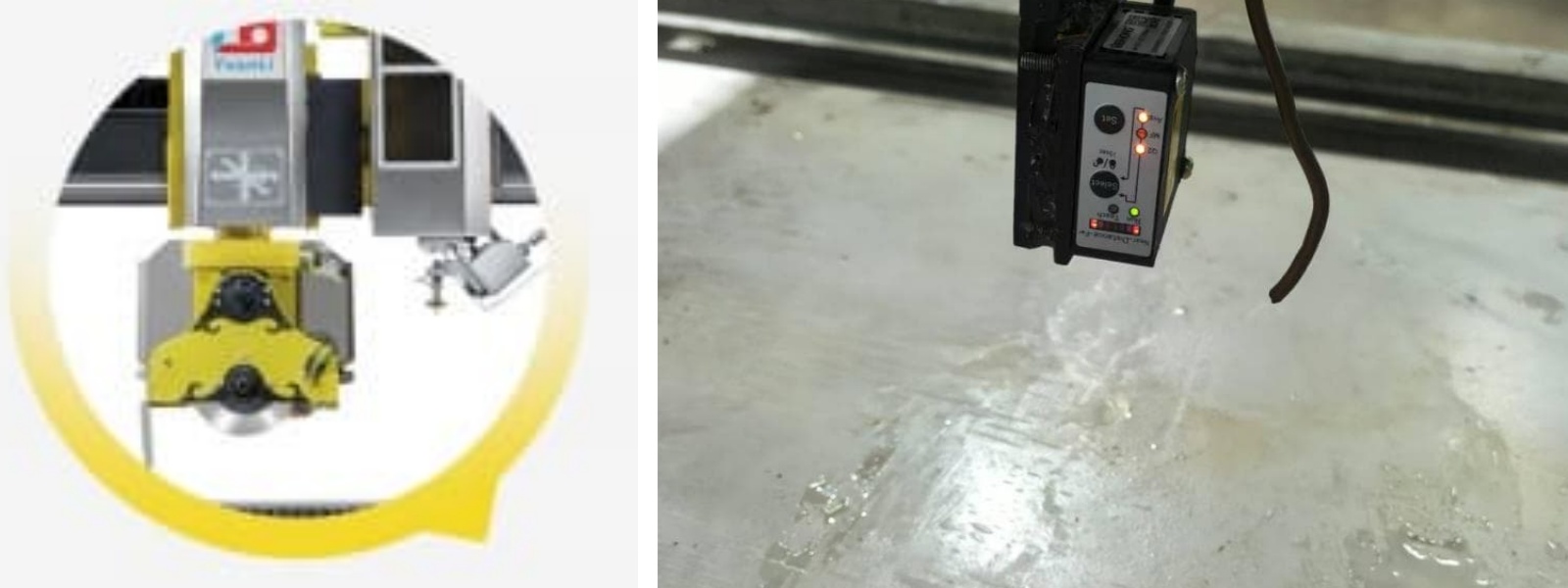

4. This machine is equipped with a tool setting Gauge to automatically measure the diameter of the saw blade, and a laser thickness measuring Probe to measure the thickness of the stone.
5. This machine is equipped with high-end RTCP five-axis CNC controller + industrial touchscreen computer + smart cutting software, and is driven by bus servo. The system has built-in convetional shape library and countertop templates library, supporting data size input. Operators can also import DXF format drawing file or design drawings by collection point coordinate drawing function. The operation of this machine is simple and easy to learn. It can access the Internet through wired network, WiFi or mobile phone wireless sharing. The system is easy to get updated, Zhongli Machinery can assist operators to solve operationa questions and troubleshoot through remote linking.
 |
6. This machine has powerful functions, is a high-end smart 5-AXIS CNC SMART BRIDGE SAWJET specially developed by our company for the home furnishing and cabinet countertop processing.
APPLICATION:

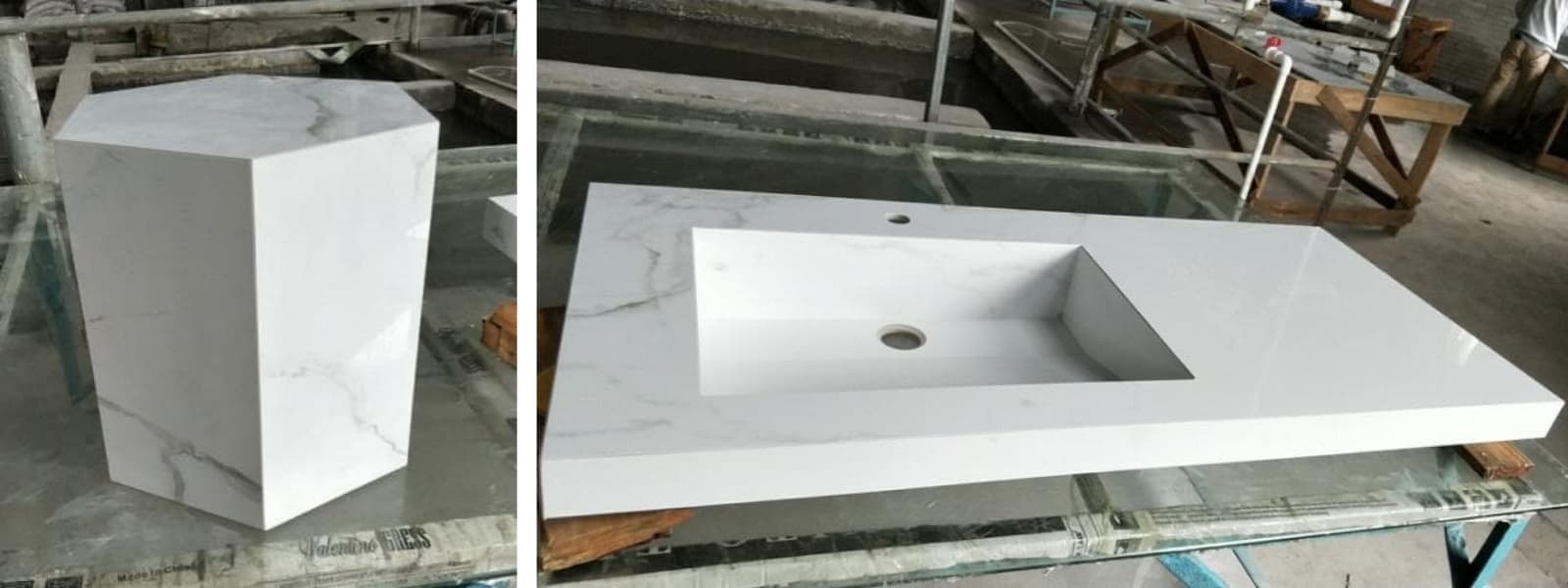

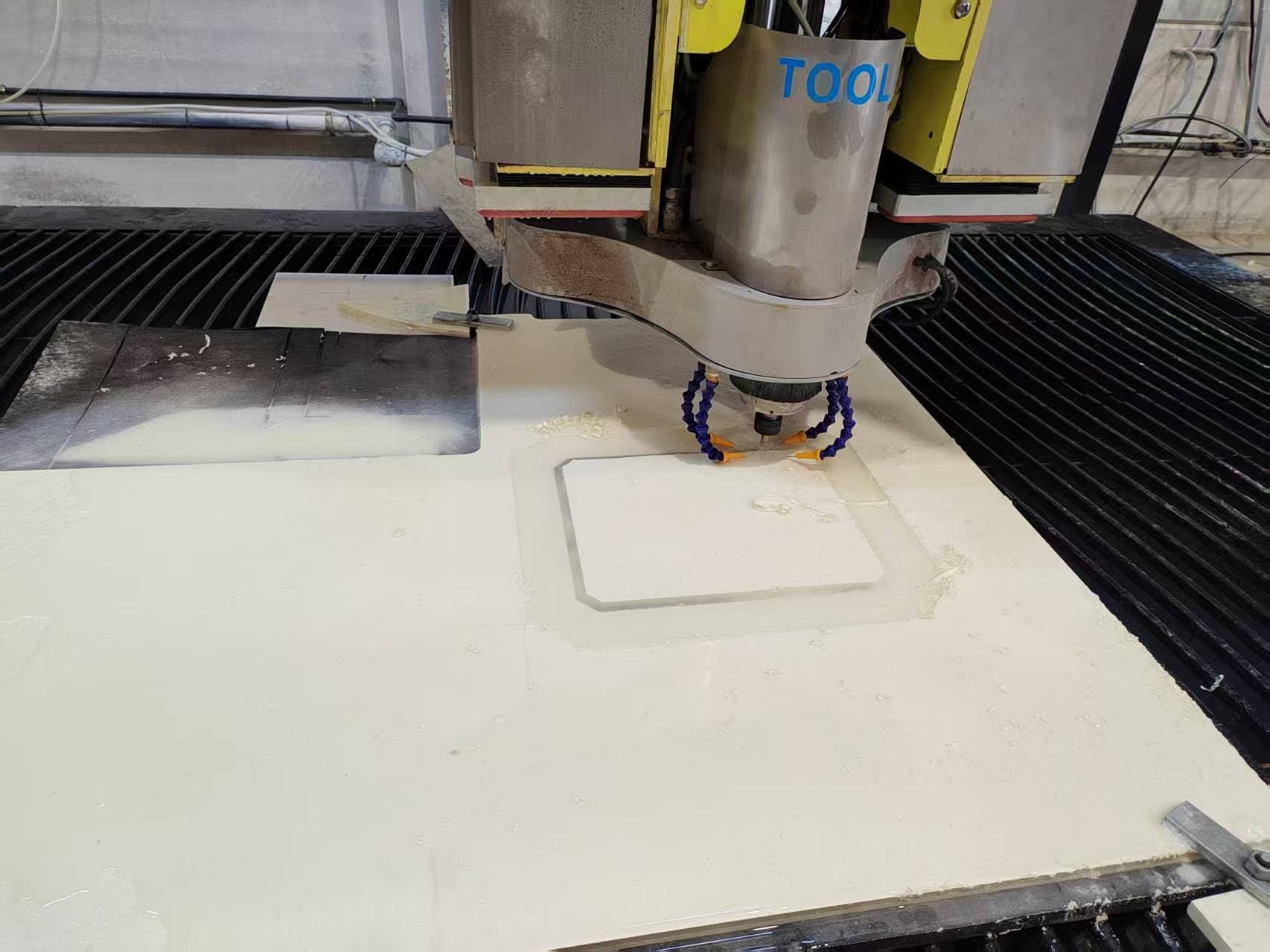

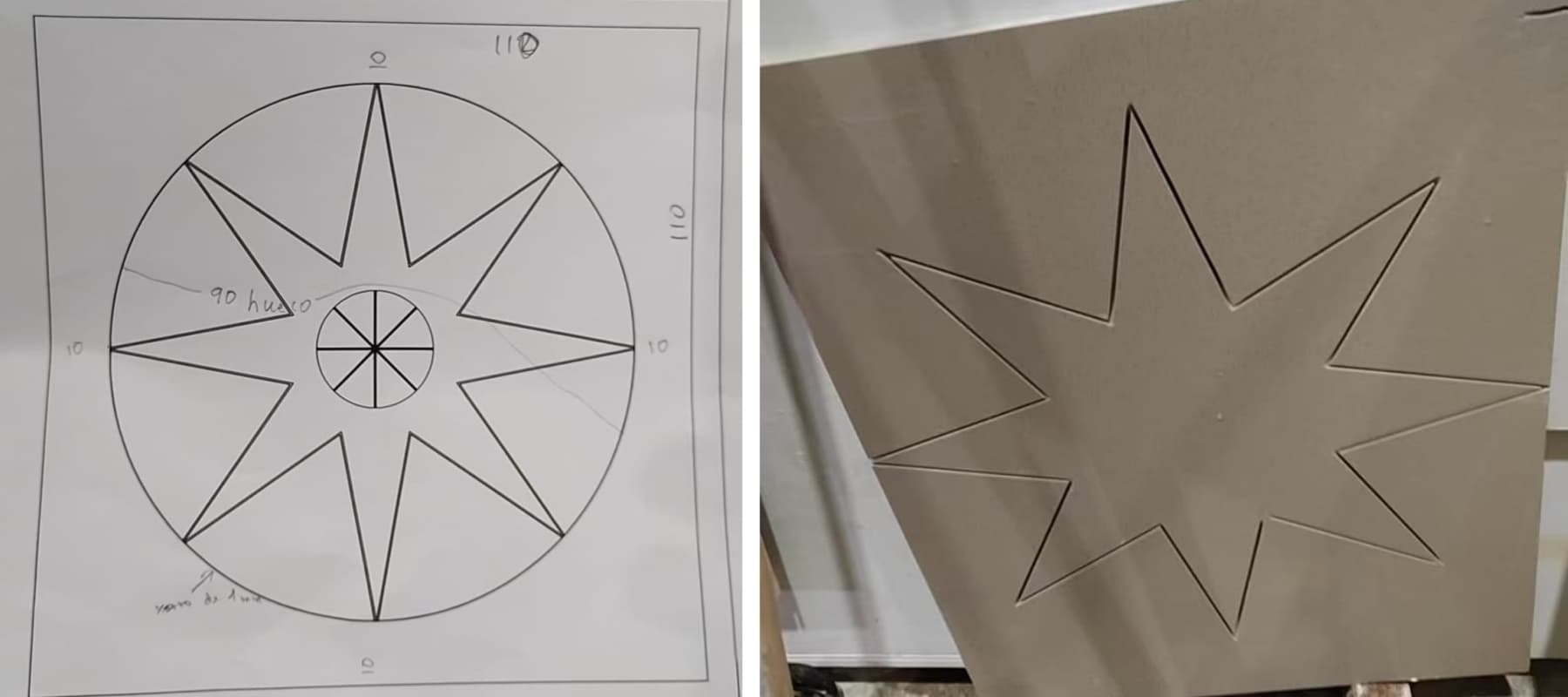

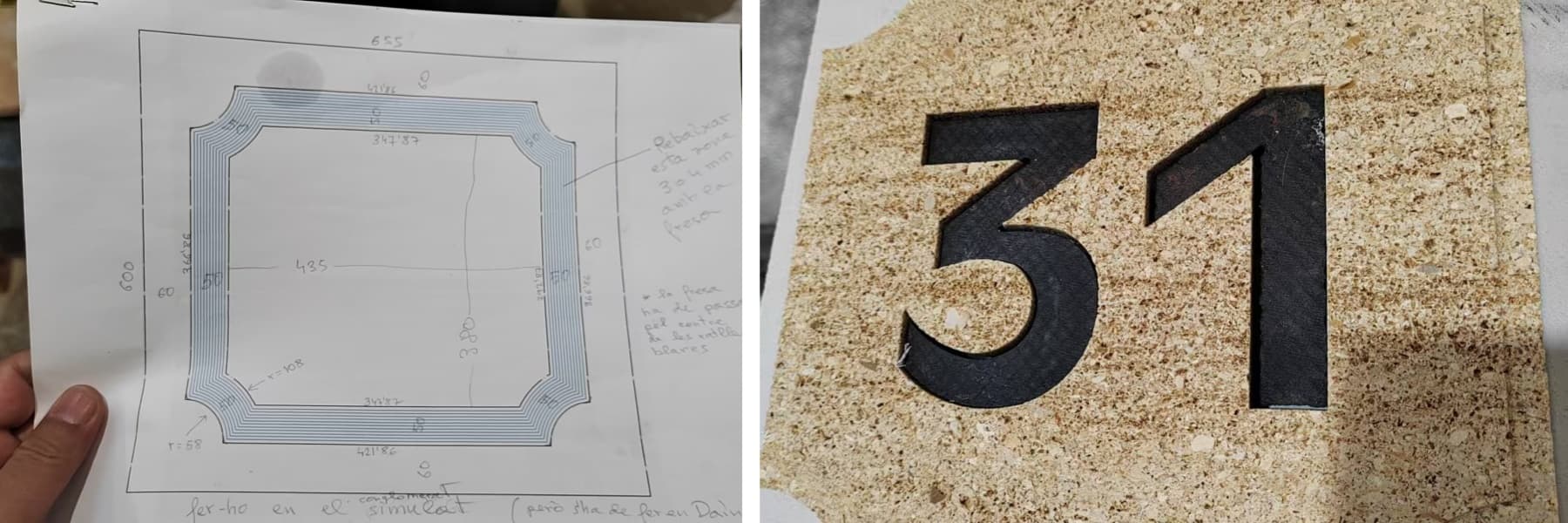

Customer Case:
Training and install success,photo with client:
Maximizing shop floor efficiency requires equipment that not only performs flawlessly but also anticipates the operational challenges of modern stone fabrication. This cutting center is meticulously engineered to deliver unyielding performance, ensuring your production line never misses a beat.
Industrial-Grade High Voltage System: Driven by a top-tier 37KW motor, the high-pressure pump delivers a staggering rated pressure of 450Mpa. This ensures a continuous, piercing water stream that slices through the densest materials with clinical precision.
Uninterrupted Abrasive Delivery: The 100-liter automatic sand-feeding system maintains a steady flow of abrasive to the cutting head. Operating at 0.2-0.3MPa, it holds enough capacity for 200 to 300 minutes of continuous cutting, drastically reducing operator intervention.
Intelligent Visual Layout: An overhead industrial camera captures the slab's exact dimensions and grain patterns directly on the workbench, allowing operators to overlay digital templates with pinpoint accuracy to minimize waste.
Automated Calibration: Equipped with an automatic tool setting gauge and a laser thickness measuring probe, the machine continuously self-calibrates, adapting to blade wear and slab variations without manual measuring.
Advanced Control Architecture: The RTCP 5-axis CNC controller, paired with an industrial touchscreen and bus servo drives, offers a seamless interface. It supports DXF imports, wired or wireless connectivity, and remote troubleshooting, making complex programming highly intuitive.
Selecting the right equipment partner is just as critical as selecting the right machinery. As a dedicated manufacturer and supplier, we are committed to elevating your operational capabilities through uncompromising quality and comprehensive support.
Direct Manufacturer Accountability: By sourcing directly from the factory, you benefit from transparent communication, strict quality control, and highly competitive pricing without middleman markups.
Unmatched Technical Expertise: Our engineering team possesses deep, hands-on knowledge of stone fabrication challenges, ensuring our machinery is designed to solve real-world production bottlenecks.
Robust Supply Chain: We utilize only premium, globally recognized components—from Taiwanese linear guides to advanced CNC controllers—guaranteeing operational reliability and easy access to replacement parts.
Comprehensive After-Sales Ecosystem: We provide extensive installation guidance, operator training, and lifetime remote diagnostic support to ensure your facility experiences zero unnecessary downtime.
Continuous Innovation: We are dedicated to the relentless pursuit of technological advancement, offering free software updates to keep your machinery at the cutting edge of the industry.
To assist you in making an informed procurement decision, we have compiled detailed answers to the most common technical inquiries regarding our 5-axis cutting center.
The integration of both technologies on a single platform eliminates the need to move heavy slabs between separate machines.
The diamond blade rapidly executes all straight-line cuts at speeds up to 40m/min.
The waterjet seamlessly takes over for intricate curves, sink holes, and tight internal angles.
This dual-action process reduces overall processing time by up to 50% compared to using standalone machines.
Stone fabrication environments are notoriously harsh, which is why durability is engineered into every component.
The machine chassis and water tank are hot-dip galvanized to provide superior corrosion resistance.
All precision guide rails and gears are protected by heavy-duty bellow covers to keep abrasive dust out.
The electrical control box is completely sealed and features an integrated industrial air conditioner to maintain optimal temperature and humidity for the sensitive CNC components.
Absolutely. The software is specifically tailored for premium custom fabrication where aesthetics are paramount.
The overhead industrial camera captures a high-resolution image of the slab.
Operators use the Vein Matching function to digitally align the stone's natural patterns across different cut pieces.
This ensures a flawless, continuous visual flow on waterfall edges and large multi-piece island countertops.
Proper site preparation is essential for the optimal performance of the machine.
Power: Requires a robust 380V three-phase industrial power supply to support the 69KW total power draw.
Air: A steady compressed air supply of 6 Bar is necessary for the pneumatic systems.
Water: The system consumes approximately 3 cubic meters of water per hour during continuous waterjet operation.
Natural stone and even some engineered materials can have slight thickness variations that severely affect miter joint quality.
The machine is equipped with a highly sensitive laser thickness measuring probe.
It scans the slab to detect any microscopic variations in depth across the surface.
The CNC software automatically compensates for these discrepancies in real-time, adjusting the Z-axis to guarantee perfectly flush 45-degree chamfers and seamless joints.
