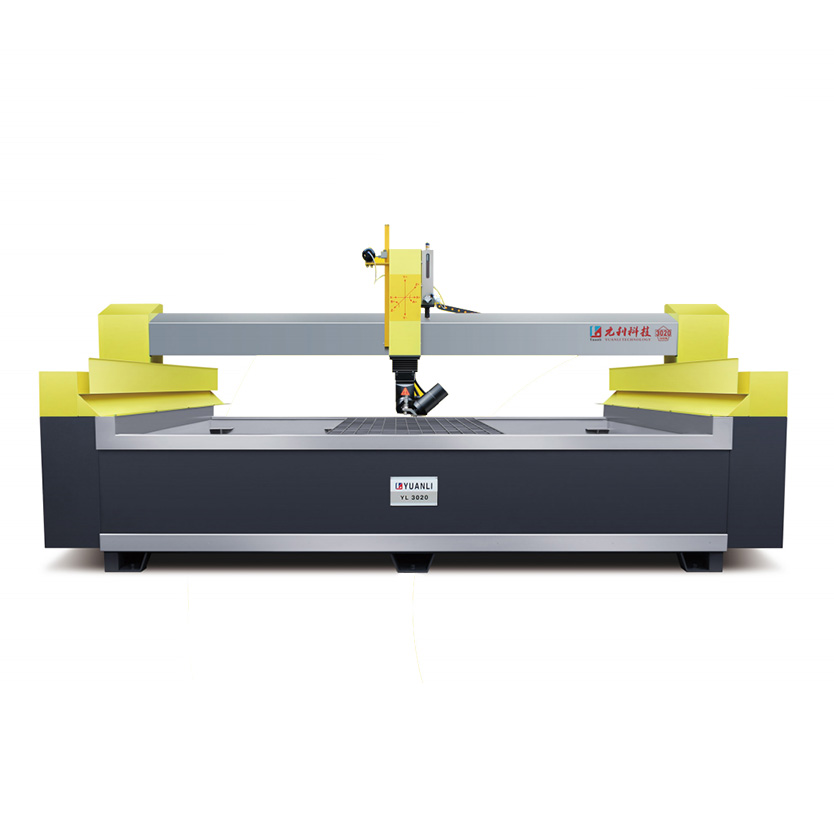

Precision Ab 5 Axis Waterjet Cutter

Precision Ab 5 Axis Waterjet Cutter

Applications

The AB 5-axis waterjet cutting system is used for contour cutting where edge taper is a consideration, and for stone and ceramic mosaic and inlay work.

• Contour cutting where edge taper matters

• Stone and ceramic mosaic and inlay work

• Parts cut from sheet or slab in one setup

Material, thickness, tolerance and the achievable edge result are confirmed against the actual workpiece. Send us your drawing and requirements so we can review whether this configuration suits your part.

Machine Configuration

The machine is available in several platform sizes, in cantilever or gantry style. Tell us your working size, material, thickness and production requirements and we will propose a configuration for your work.

• Platform dimensions and travel: see the table below

• Pump, cutting head, control system and accessories: quoted according to the selected model

• Optional settings such as the 150 mm-210 mm customisable height are confirmed in the quotation

On mobile, swipe the table horizontally to view all specifications.

TECHNICAL PARAMETERS

Cut Quality and Sample Evaluation

Cut quality and taper control depend on the material, its thickness, cutting speed, abrasive and the selected configuration. The result on your part is confirmed by evaluating the actual workpiece.

If you need to judge suitability before ordering, send us:

• your drawing or file

• material and thickness

• the tolerances you need

• the edge quality you expect

We will review the application with you and discuss how sample evaluation can be arranged for your part.

Software, Maintenance and Support

Ask us to confirm the controller, software version, supported drawing formats and programming functions included in your quotation. Maintenance, training and technical support arrangements will be confirmed for the selected configuration and destination.

Request a Configuration & Quote

Send your material, thickness, maximum workpiece size, drawing and tolerance requirements. Include the quantity or expected production volume and delivery country so we can review your application and discuss a suitable configuration.

Request a Configuration & Quote

Frequently Asked Questions (FAQ)

How does the AB 5-axis system improve edge quality compared to standard 3-axis machines?

On a 3-axis machine the cutting stream lags as it cuts deeper into the material, which produces a taper on the cut edge. The AB 5-axis system tilts the cutting head during the cut to compensate for this lag. How much taper can be compensated, and the result on your part, depends on the material, its thickness, cutting speed, abrasive and the selected configuration - we confirm this against your workpiece.

Can this equipment handle thick metal plates without inducing heat distortion?

Waterjet cutting is a cold-cutting process: the material is eroded by a high-pressure stream of water and abrasive instead of being melted, so the cutting process itself does not introduce a heat-affected zone. Whether a particular thickness can be cut within your tolerance at an acceptable cutting speed is confirmed for your material and part.

What level of maintenance is required for the high-pressure pump and servo systems?

The machine uses an AC servo system with linear guides and ball screws, and the high-pressure side uses wear parts such as seals and check valves that are replaced on a schedule. The maintenance intervals, the wear-parts list and the applicable schedule for your configuration are confirmed with your quotation.

Is the CNC software compatible with our existing CAD files?

Ask us to confirm the controller, software version, supported drawing formats and programming functions included in your quotation.

How is the motion system protected in a wet, abrasive environment?

The drive and guide components are separated from the cutting area and protected by covers and seals. The protection design for the selected configuration is confirmed in the quotation.
