Factory
Foshan Yuanli Precision Machinery Co., LTD. was founded on 20th,May,2003 ISO certificated producing line, CE standard. Our factory is located in Xiabai third Industrial Zone in Foshan with anadvanced production base which covers an area of more than 8,000 square meters and around 150 employees.
Yuanli Water Jet Cutting Machine Parameters
1. Cutting table
Photo | Description | Main parts name | Brand/supplier |

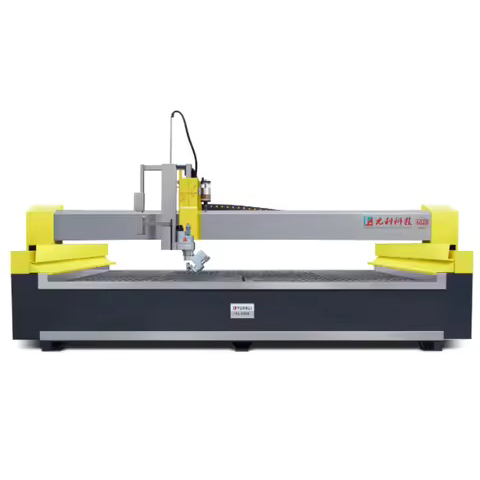

| | 1. YL3020 AC 5 axis Gantry type This cutting table meet the needs of various cutting materials, Integrated machine structure, More stable and efficient operating environment. Diameter of Sand pipe Nozzle: 1.02mm Diameter of Gemstone Nozzle: 0.33mm | Beam Material/High Pressure Water Switch | Casting Structure/Pneumatic High Pressure Water Switch |
Heat Treatment of Machine | Low Temperature Annealing Heat Treatment of X and Y Beams | ||
Lubrication system | Fully sealed oil bubble type | ||
 The screw guide adopts all stainless steel closed oil bubble structure, which reduces maintenance cost and is durable. | 2. Cutting Scope: X 3000mm* Y 2000mm*Z 150mm | Ball screw | TBI/ Taiwan |
3. Maximum Fast Moving Speed:10000mm/min | |||
4. Fast positioning Accuracy: +/- 0.025mm | Guide-way | TBI/ Taiwan | |
5. Cutting Accuracy: +/- 0.1mm X-Axis accuracy: ≦±0.05mm per 300mm Y-Axis accuracy:≦±0.05mm per 300mm | |||
6. Repearability: +/- 0.01mm | Servo motor | Using Nalky（weihong）BUS-TCP (Wisdom) | |
7. Platform dimensions: 4300mm*2250mm*1700mm | |||
8.Power: 380V 50 hz | |||
2. High pressure PUMP
Photo | Description | Main parts name | Brand/supplier | ||
 | 1. Maximum pressure: 450Mpa(65000psi) | Motor | Jiangsheng, china top 3 brand | ||
2. Working pressure: 320~380Mpa | Axial Plunger pump | Avic Liyuan/ Plunger variable pump | |||
3. Maximum flow rate: 3.7L/min | Electro-hydraulic reversing valve | Ward | |||
4. Plunger pump power: 37kw | Water pump | Pedrollo, Italy | |||
5. Maximum pressure of oil pump: 31.5Mpa | Hp Cylinder | GMT / America | |||
Noise level: < 85db | Check tube assembly | HYPERTHERM | |||
Motor rated power: 66A | Oil pump | Parkar/ America | |||
Size: 1800mmx1300mmx1430mm | HP seal kits | Taiwan | |||
Power supply: 380V 60hz Weight: 1000kgs | Seals | Taiwan | |||
Water cooling system | SH, China | ||||
Main Feature 1. Continuous and stable ultra-high pressure can greatly improve the cutting speed on the premise of ensuring the cutting quality. 2. It has omnidirectional safety protection devices such as pressure detection, limit alarm and automatic protection. 3. High-power motor cooperates with cooling oil pump and automatic variable displacement oil pump. 4. The unique design inside the oil pipeline makes the cylinder flexible in reversing direction, less resistance and low noise. 5. Advanced pressure auto-regulating pump can ensure the pressure of low-pressure water intake to remain stable. 6. The use of precise water filters makes the water used for cutting more pure and prolongs the use time of the components of the high-pressure system greatly. | |||||
3. CNC control system : Mobile design, convenient operation; built-in display design, protection equipment, convenient cleaning. | |||||
Photo | Description | Main parts name | Brand/supplier | ||
 | Size: 750mm*600mm*1600mm | PLC | MITSUBISHI, JAPAN | ||
CNC control system | NcStudio V10 | ||||
Weight: 120kgs | Program software | CNC Weihong | |||
Electrical element | Siemens element | ||||
Weak electric machine | OMRON, JAPAN | ||||
Servo driver | Weihong | ||||
Main Feature： 1. The general AUTO CAD drawing software is skillfully combined with the automatic programming software, which can generate the NC program of CNC control system response conveniently and quickly. 2. Special communication transmission software and USB to realize fast and bidirectional transmission between PC and CNC. 3. The new CNC numerical control system can make the feeding speed of arc cutting 0-15m/min. The system has the function of self-inspection, support and diagnosis, and is more convenient for maintenance. 4. CNC numerical control system, with larger memory and more stored processing programs, can greatly reduce processing assistance time; 5. Independently developed international advanced water jet automatic typesetting CAD/CAM software; 6. It can be compatible with many international graphic design software formats, such as ASC, IGS, DXF, DWG, etc. 7. Independent power supply to key components such as driver, CNC and PLC provides independent anti-interference power supply, which can avoid inexplicable shutdown events and improve the integrity and accuracy of parts processing. 8. The software of NC system is based on WIN7 system, which gives full play to the powerful advantages of real man-machine conversation and multi-task function. The operator can do other work such as drawing at the same time when the machine is working. 9. CNC system software can make installation package (software installation work) according to the current parameters of the machine at any time. Users can install CNC system software at any time. Without modifying any parameters, the machine can work normally and effectively improve the maintenance and reliability of the system. | |||||
4. Sand supply system | |||||
Photo | Description | ||||
 | Working pressure: 0.2 MPa | ||||
Size: 700φ*950 | |||||
Main Feature 1. Pressure feeding system uses 0.2 MPa compressed air to push abrasives in pressure vessel intermittently through hoses to the annular sand tank on the worktable. The sand flow is automatically distributed according to the needs of cutting. The gas flow rate is small, the velocity of sand flow is slow, the wear rate is very small, and the failure rate is close to zero. 2. The automatic sand feeder can use air pressure to send the sand placed in the barrel 5 meters away to the mini-bucket automatically, and stop automatically when it is full. If it is not enough, it will automatically replenish and work reliably and stably. 3. 100-liter automatic sand feeder, which can hold 150 kg of sand, is stable and durable. It has automatic alarm function without sand. It indicates that sand feeding can be used by up to two Water jet heads. | |||||
Full Sets of waterjet cutting machine: Cutting table, High pressure PUMP, CNC control system, Sand supply system, built-in HP pump fan cooling system.
Quotation
Product Name | YL3020 AC 5 axis Water jet cutting machine |
Payment Terms | 30% By T/T in advance |
70% should be paid before shipment | |
Guarantee period | 12 month (From the date of successful installation) |
Delivery time | 20 working days After received 30% Downpayment. |
Packages | Load in a 40 feet container with thin firm |
Standard Complete Machine Price (US Dollars) | FOB Guangzhou 42500USD/set |
CUTTING SPEED FOR REFERENCE
Item No. | Thickness (mm) | Cutting Through Speed For Reference mm/min(60# Garnet) | ||||||
Mild metal | Stainless Steel | Marble | Ceramic (Normal) | Aluminum | Titanium | Glass | ||
1 | 1.5 | 1000 | 980 | 4000 | ||||
2 | 2 | 850 | 850 | 2700 | ||||
3 | 3 | 700 | 650 | 1700 | ||||
4 | 5 | 550 | 560 | 1500 | 950 | 2000 | ||
5 | 8 | 320 | 300 | 900 | 530 | 1380 | ||
6 | 10 | 300 | 280 | 1820 | 2500 | 750 | 422 | 900 |
7 | 12 | 240 | 220 | 1550 | 650 | 338 | 800 | |
8 | 15 | 190 | 150 | 1220 | 530 | 260 | 700 | |
9 | 18 | 150 | 120 | 1100 | 440 | 210 | 670 | |
10 | 20 | 130 | 100 | 950 | 390 | 180 | 600 | |
11 | 25 | 105 | 80 | 700 | 300 | 145 | ||
12 | 30 | 85 | 65 | 550 | 240 | 120 | ||
13 | 35 | 70 | 55 | 450 | 200 | 98 | ||
14 | 40 | 60 | 45 | 400 | 170 | 85 | ||
15 | 50 | 45 | 36 | 300 | 142 | 64 | ||
16 | 60 | 32 | 23 | 250 | 110 | 53 | ||
17 | 80 | 20 | 18 | 180 | 80 | 39 | ||
18 | 100 | 15 | 12 | 130 | 60 | 28 | ||
About Spare parts:
List of present accessories for free delivery | |||
1. Toolbox | |||
2. Accessories | |||
Name | Unit or Specs | Quantity | |
YL01 | Sandpipe | Piece | 2 |
Gemstone | Piece | 15 | |
YL02 | Sand Pipe Jacket | Piece | 4 |
YL03 | Water switch seal needle | Piece | 4 |
YL05 | The valve core | Piece | 4 |
Valve pad | Piece | 4 | |
YL08 | Sand body | Piece | 4 |
YL09 | Water valve seat | Piece | 4 |
YL16 | Magnels | Piece | 4 |
YL18 | High-pressure hydrosphere | Piece | 2 |
Others | Water Filter Element | Piece | 4 |
Inlet valve o-ring | Piece | 4 | |
Oil block O ring | Piece | 4 | |
Thimble | Piece | 4 | |
Oil pump combination pad | Piece | 4 | |
O ring for reversing support(left） | Piece | 4 | |
O ring for reversing support（right） | Piece | 4 | |
Installation and Preparation of customer:
1. installation |
After the user has prepared and confirmed the required installation conditions according to the company's equipment installation process, he will appoint after-sales technicians to the user's site for equipment installation guidance and on-site debugging. |
Users are responsible for the installation of equipment provided by Yuanli Company in accordance with civil requirements for construction, so as to meet the installation conditions; |
Users are responsible for the unloading of equipment in the factory, and put the equipment in place. |
Users are responsible for providing free lifting equipment and general tools (such as wire rope, soft sling, wrench, screwdriver, etc.) for installation and commissioning process. |
Users are responsible for the installation of necessary materials, such as hydraulic oil, external power supply cables, water pipes, etc. |
Users are responsible for delivering power supply, water source, gas source and drainage pipe to the working area. |
Users are responsible for assigning technicians to the site to cooperate with after-sales technicians for equipment installation. |
2. Installation conditions |
（1）Electric power requirement |
380V (three-phase four-wire), power supply must be grounded wire |
Distribution box (380V inside, 100A leakage switch) |
16 square cables, 1 cable, length according to site installation location to purchase |
(2）Gas source requirement |
Users provide gas source and 8 mm diameter pipe from gas source to cutting platform valve |
Users provide air pipes and spray guns from air source to water tank for cleaning workpieces and equipment maintenance |
（3）Water source requirement |
Cutting water inlet pressure: 2-4 KG/cm2, minimum water supply for cutting: 8l/min |
Users should be equipped with appropriate water supply pipes to equipment according to the requirements of factory site and after-sales technicians. |
Hydraulic Oil Requirements for Hydraulic Oil Guideway: Machine Tool - Lubricating Oil; Supercharger - 46 # Anti-wear Hydraulic Oil. |
Machine Installation
SERVICE AND SUPPORT:
Directly phone support 24hrs a day (+86-18520971183)
Email: sales01@ylwaterjet.com
1. For on site installation and training: the buyers take responsibility for technician’s air-ticket,hotel and food,USD80 per day.
2. Free warranty for the machine is one year(except wearing parts and the replacement of wearing parts).
3. Training of personnel as requirement of customer.
4. To guarantee long term supply of spare parts.
5. lifetime service, maintenance.
6. the buyers have the special price when there are new products updating and new technologies.
7. Quick response time: when the user’s machine any fails,response within 12 hours after receipt of written notice.by phone,email or fax.the seller will help buyers solve problem ASAP.
Cutting sample by AC 5 axis:
Photo offered by customer.
More video and sample case(customer case) please contact with Yuanli sales dept.
Yuanli-Focus on waterjet production,Design TWENTY years
Yuanli waterjet Considers All For You……
Yuanli Is Your Best Friend Forever!
Thanks for choosing Yuanli waterjet.
Selecting the right equipment manufacturer is a critical strategic decision for your facility. As a premier manufacturer with decades of specialized experience, we offer more than just machinery; we deliver a competitive edge.
Decades of Engineering Excellence: With over twenty years dedicated exclusively to the design and production of precision cutting systems, our expertise is woven into every weld and circuit of our machines.
Certified Quality Standards: Operating out of an expansive 8,000 square meter advanced production base, our manufacturing lines are strictly ISO certified and fully compliant with rigorous CE safety and quality standards.
Direct-from-Source Value: By partnering directly with the manufacturer, you bypass intermediary markups, securing top-tier industrial equipment at highly competitive direct pricing.
Future-Proof Technology: We continuously innovate our designs. Our partners benefit from exclusive pricing on future technological upgrades and new product releases, keeping your facility at the cutting edge.
Unwavering Partnership: We view every installation as the beginning of a lifelong relationship. From initial consultation to lifetime maintenance, we are committed to being your most reliable operational ally.
The machine requires a 380V (three-phase four-wire) power supply with a dedicated ground wire, connected to a distribution box with a 100A leakage switch using 16 square cables. For the water source, an inlet pressure of 2-4 KG/cm² and a minimum flow rate of 8L/min are necessary. Additionally, a 0.2 MPa compressed air source is required for the abrasive delivery system.
Traditional open guideways are highly susceptible to damage from abrasive garnet dust and moisture. Our fully sealed, oil-immersed structure completely isolates the ball screws and guide-ways from the external environment. This continuous lubrication minimizes friction, drastically reduces mechanical wear, and virtually eliminates the need for daily manual greasing, saving significant maintenance labor.
Yes, the proprietary CAD/CAM software is highly versatile and fully compatible with standard international graphic design formats, including ASC, IGS, DXF, and DWG. The advanced NcStudio V10 system seamlessly translates these files into precise 5-axis toolpaths, allowing for intricate 3D cutting and dynamic beveling without requiring third-party conversion software.
The lifespan of high-pressure components is heavily dependent on water quality and thermal management. Our system utilizes a 37kw motor paired with a dedicated cooling oil pump and advanced water filters. By maintaining optimal hydraulic fluid temperatures and ensuring ultra-pure water reaches the intensifier, the degradation of high-pressure seals and check tubes is significantly delayed, ensuring long-term stability.
Prior to our technicians' arrival, your facility must unload the equipment and place it in the designated operational area. You must provide lifting equipment (such as soft slings and wire ropes), basic hand tools, and necessary materials like 46# anti-wear hydraulic oil and machine tool lubricating oil. Furthermore, all external power cables, water pipes, and air lines must be routed to the installation zone.
