Built for small fabrication workshops and on-site construction teams, this compact multi-function 5-axis water jet integrates 45° bevel cutting capability into a space-saving, transportable frame. Powered by a 37kW AC servo system, it delivers industrial-grade ±0.1mm precision across metal, stone, glass and composite materials despite its reduced footprint. With an integrated engine and pump assembly and a total weight of 4250kg, the unit ships as a pre-tested, ready-to-deploy package for fast commissioning. Each unit comes with a full machinery test report, video outgoing inspection, and access to our Germany-based showroom for European industrial buyers evaluating flexible cutting solutions.

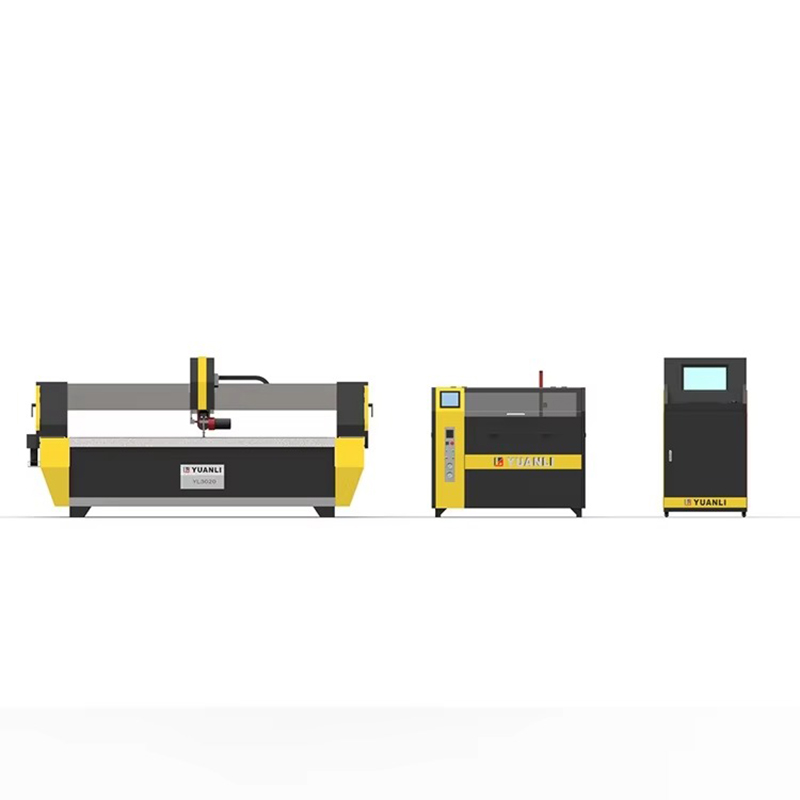

For workflows centered on vertical straight cuts, the 3-axis setup delivers a reliable cold-cutting solution for flat sheet processing. It fits stone slab sizing, ceramic tile cutting, metal plate fabrication and glass processing where 90° straight edges meet production needs. Compared with 5-axis systems, this configuration features a more compact footprint and lower upfront investment, making it suitable for entry-level production facilities and high-volume straight-cut operations.
It covers standard production tasks including marble and granite slab sizing, ceramic/porcelain tile cutting for flooring and walls, sink and faucet cutouts in countertop blanks, mild steel and stainless steel plate processing for fabrication shops, aluminum sheet cutting, and decorative/industrial glass fabrication. The cold-cutting process generates no heat-affected zone, allowing immediate part handling without cooling time and eliminating thermal distortion in thin materials.

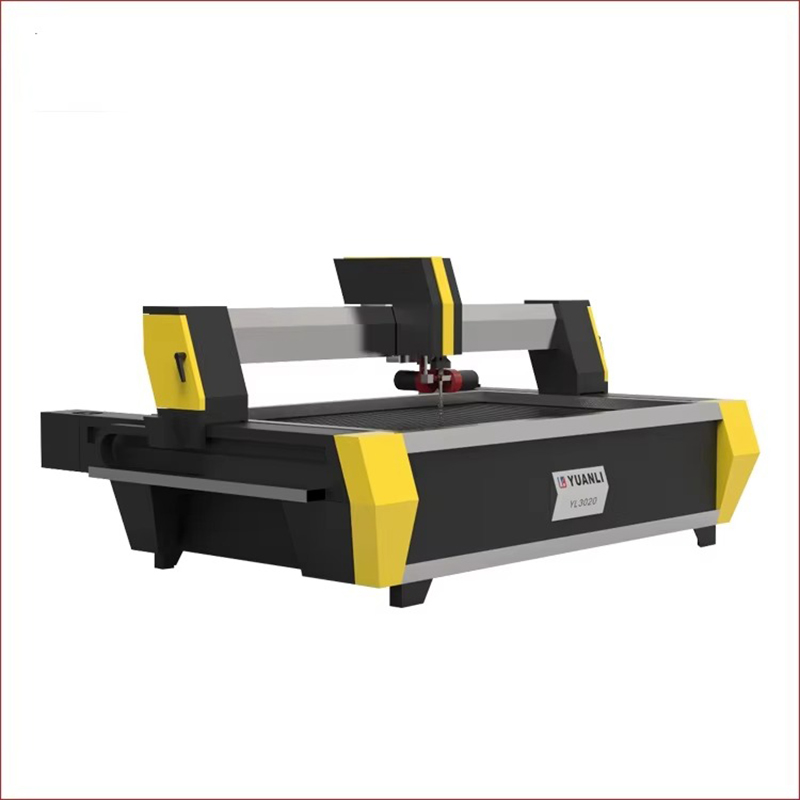

The machine adopts a fabricated steel frame with precision-machined mounting surfaces for linear motion components, assembled and aligned in a temperature-controlled factory environment. X and Y axes use helical rack and pinion drives paired with AC servo motors, delivering higher travel speeds than 5-axis setups for improved straight-cut throughput. The Z axis uses a ball screw drive with 150mm travel for nozzle height adjustment and material thickness adaptation.

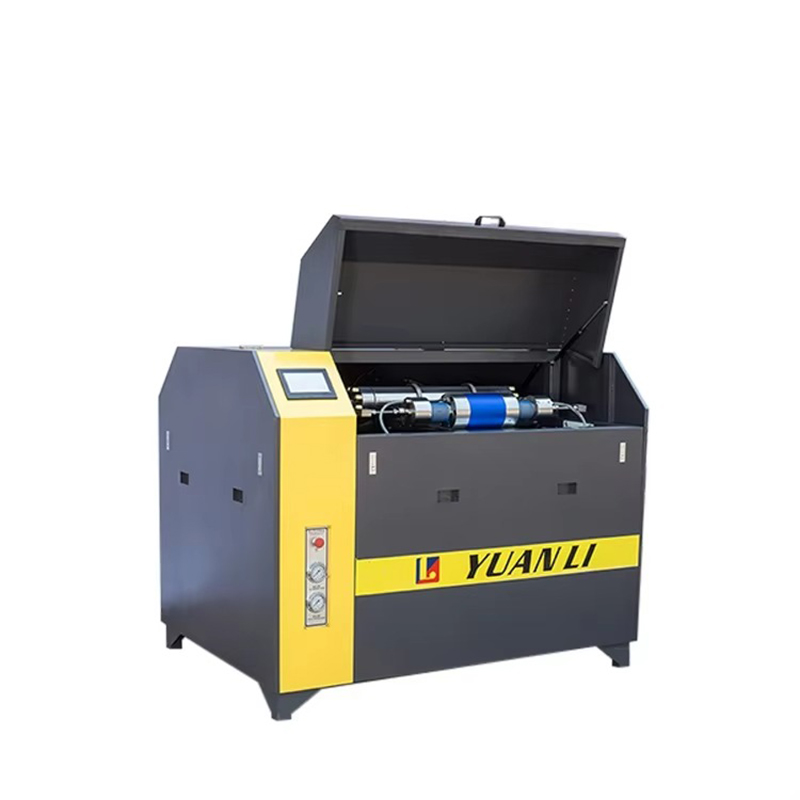

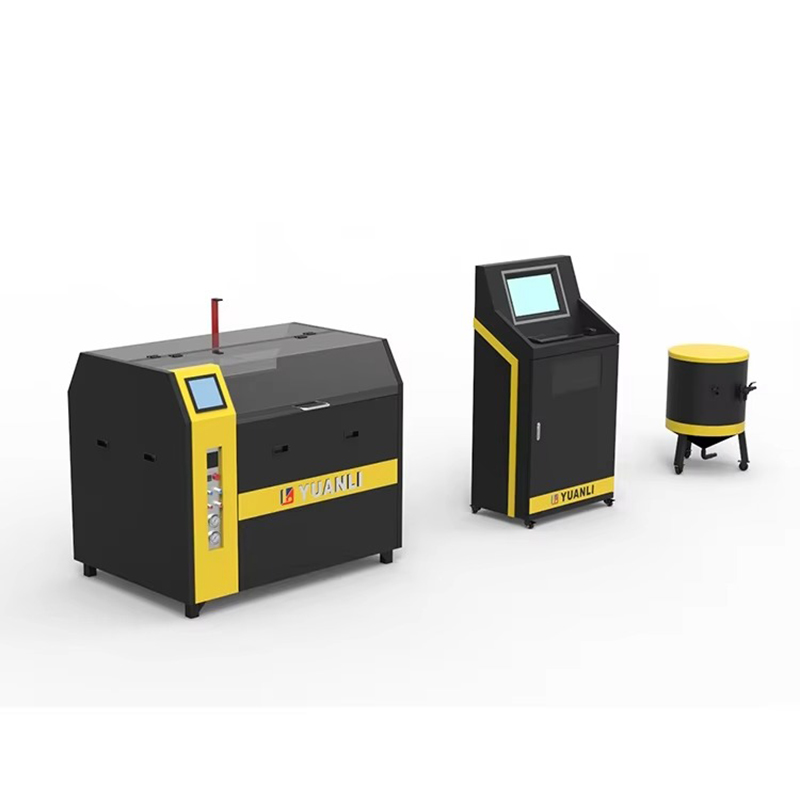

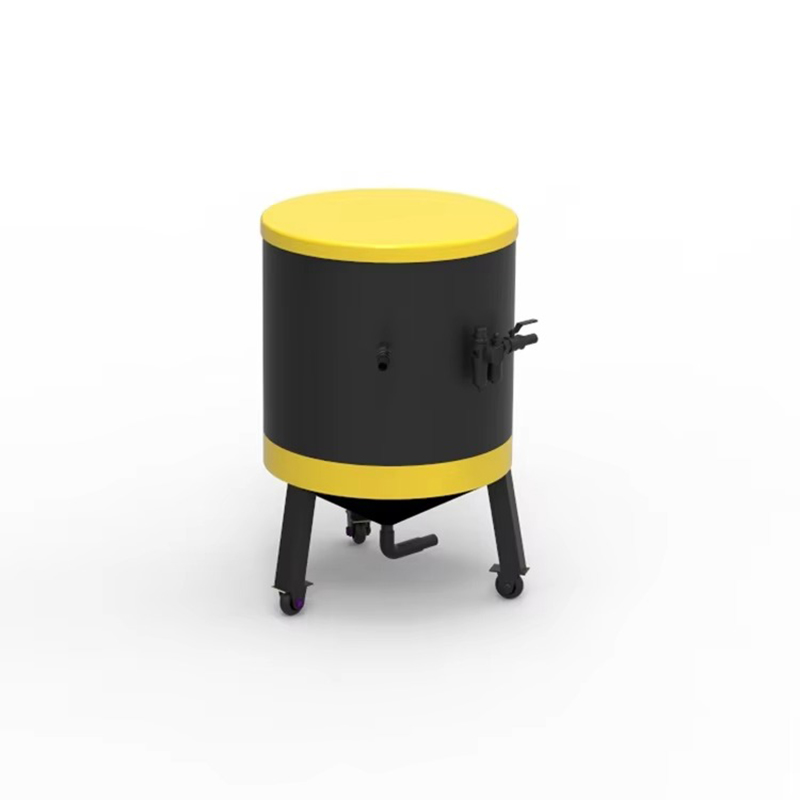

A 37kW intensifier pump delivers 420MPa operating pressure, with a hydraulic drive system designed for continuous duty cycles in production settings. The fixed-angle straight cutting head with manual abrasive metering reduces maintenance complexity compared with articulated 5-axis heads.

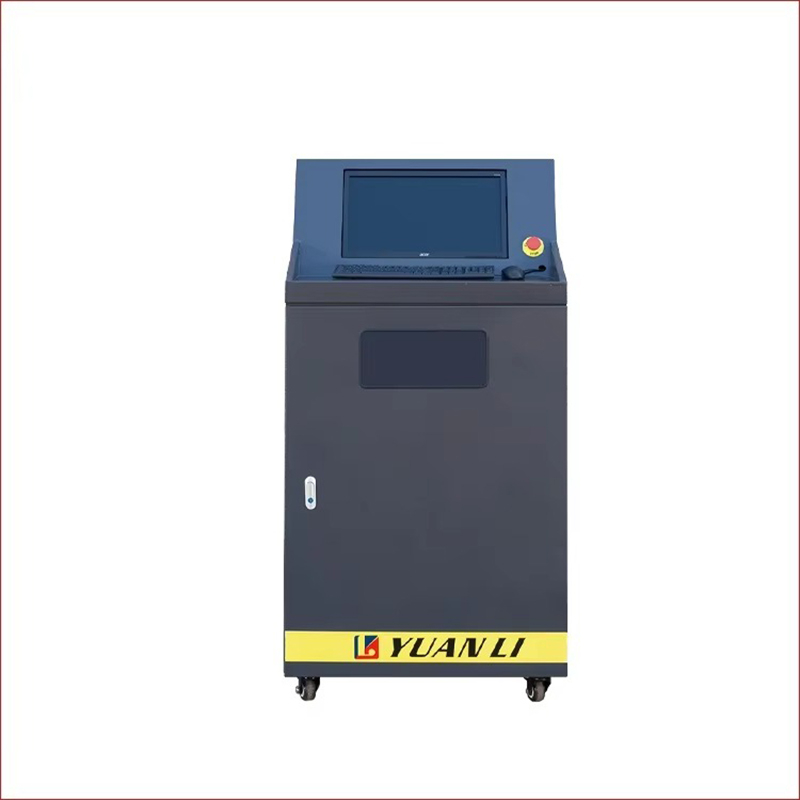

The CNC control system includes a 15-inch industrial touchscreen, supports standard CAD file formats, and offers basic nesting functionality for material optimization.
Technical Item | Specification | Technical Item | Specification |
Voltage | 380V (220V/415V optional) | Core Components | PLC, Motor, Intensifier Pump |
Warranty | 12 Months | Rated Power | 37kW (49.62hp) |
Origin | Foshan, China | Machine Weight | 3000 kg |
Brand | Yuanli | After-sales Service | Field service available |
Product Name | 3-Axis Water Jet Cutting Machine | Cutting Table Size | 3000mm × 2000mm |
Control System | AC Servo CNC System | Cutting Accuracy | ±0.1mm |
Repeatability | ±0.01mm | Fast Positioning Accuracy | ±0.025mm |
Power Frequency | 50/60Hz | Certification | ISO 9001, CE |
Axis Configuration | 3-Axis Straight Cutting Head | Maximum Operating Pressure | 420MPa |
Abrasive Flow Rate | 200-500g/min | Nozzle Diameter | 0.26-0.35mm |
Focusing Tube Inner Diameter | 0.76-1.02mm | X-axis Travel Speed | 0-20m/min |
Y-axis Travel Speed | 0-20m/min | Z-axis Travel | 150mm |
Positioning Method | Rack and Pinion + Linear Guide | Water Orifice Diameter | 0.30mm |
For stone fabrication, the machine cuts marble and granite slabs up to 180mm thick, sintered stone and porcelain panels up to 100mm thick, and ceramic tiles for commercial and residential projects. The fixed vertical cutting head produces consistent 90° edges suitable for standard slab installation with on-site joint finishing. The 3000×2000mm table accommodates standard large-format slabs, reducing setup times for full-size stone panel processing. The 20m/min travel speed boosts throughput for high-volume tile and slab sizing.
For metal fabrication, the system cuts mild steel up to 120mm thick, stainless steel up to 100mm thick, and aluminum/copper sheets up to 80mm thick, delivering perpendicular edges ready for welding and assembly without additional edge squaring. For glass processing, it cuts laminated, float and decorative glass up to 80mm thick without edge chipping or cracking common with mechanical cutting. It also processes rubber, foam and composites for gasket and industrial component production.
The system maintains ±0.1mm linear positioning accuracy across the full work envelope, with ±0.01mm repeatability for consistent part quality across batch runs. The rack and pinion drive delivers 20m/min rapid travel speed, cutting non-cutting idle time and lifting overall throughput by around 25% compared with ball-screw 5-axis configurations on equivalent paths. This makes the 3-axis setup well suited for high-volume production of simple-geometry parts.
The fixed cutting head design lowers maintenance demands compared with articulated 5-axis systems, with fewer moving parts and no angle calibration required during routine service. Focusing tubes provide 80-120 hours of cutting service before replacement; high-pressure seals require inspection and replacement every 600 operating hours. Abrasive consumption ranges 200-500g/min based on material thickness and cut quality, with water consumption of 3-4 liters per minute during cutting.
Each machine includes factory-supervised installation and commissioning, plus 3 days of standard operator training covering operation, file preparation, routine maintenance and safety procedures. The simplified control interface shortens the learning curve, with most users achieving independent operation within one week of installation. Remote diagnostic software allows technicians to troubleshoot and adjust parameters without on-site visits.
The machine carries a 12-month warranty against material and workmanship defects from the commissioning date. Wear parts including nozzles, focusing tubes and seals are covered against manufacturing defects for 30 days after installation. A complete spare parts kit with common wear items ships with each machine for initial operation; ongoing spare parts are delivered via international courier or sea freight based on urgency. Technical support is available during standard working hours, with emergency support for critical production issues.
3-axis machines cut vertically for straight 90° edges, designed for flat material processing and standard part production. 5-axis machines feature an articulated cutting head for angled cuts, bevels and 3D shapes. 3-axis systems offer higher travel speeds and lower purchase and maintenance costs.
It cuts marble and granite up to 180mm thick, sintered stone up to 100mm thick, and ceramic tile 3-20mm thick at production speeds. Thicker materials can be processed at reduced feed rates.
The 3-axis frame supports a 5-axis cutting head upgrade, which requires control system updates and mechanical modifications. Facilities expecting bevel cutting needs within 2 years should evaluate 5-axis configurations at initial purchase.
Standard machines require 380V three-phase power at 50/60Hz with minimum 50A capacity. 220V and 415V configurations are available as factory options.
The machine footprint is approximately 4500mm × 3200mm, with 1000mm clearance recommended on all sides for maintenance access and material handling.
