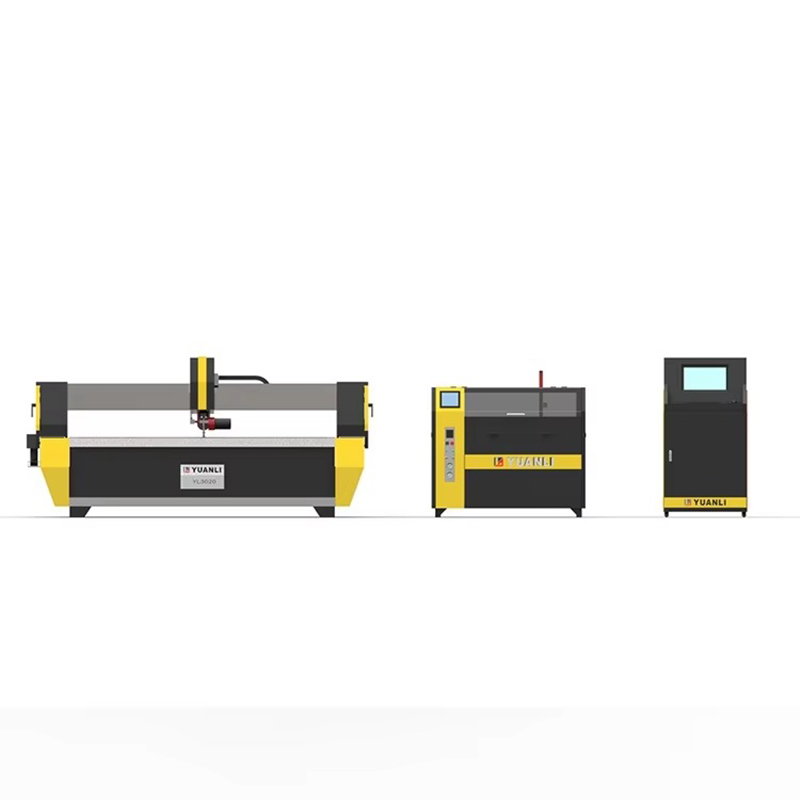

This 3020 5 axis AC Water Jet cutting machine is engineered specifically for glass processing production lines, addressing common pain points in glass fabrication including edge chipping, inconsistent bevel angles, and time-consuming secondary polishing. The AC 5-axis cutting head supports angled cutting in a single setup, which reduces manual rework steps for glass components such as shower enclosure panels, decorative glass partitions, and appliance glass parts. The machine operates with a 37kw rated power system and 380V industrial power supply, suitable for continuous operation in commercial production environments.
The machine uses cold Water Jet cutting technology with no thermal effect during processing, which eliminates heat-affected zones on glass surfaces. This reduces the risk of glass cracking, edge chipping, and material deformation caused by thermal cutting methods. The cutting process produces smooth edges that reduce required polishing time for finished glass parts, supporting consistent output quality for mass production orders.
voltage | 380V | core components | PLC, Motor, Pump |
warranty | 1 Year | rated power | 37kw (49.62hp) |
place of origin | China | weight (kg) | 4500 |
brand name | yuanli | After-sales Service Provided | Engineers available to service machinery overseas |
Product name | Water Jet cutting machine | Warranty | 12 Months |
Voltage | 220V/380V/415V | CNC control system | AC servo system |
cutting accuracy | ±0.1mm | repeatability | ±0.01mm |
Fast positioning accuracy | ±0.025mm | Power | 50/60HZ |
Certification | iso ce | - | - |
The machine supports cutting of flat glass, laminated glass, and decorative patterned glass for architectural projects. It can process irregular shapes, drilled holes, and angled edges for glass railings, curtain wall panels, and interior decorative glass parts, meeting tolerance requirements for on-site installation.
For bathroom glass production, the 5-axis head completes 45° bevel cuts for seamless shower enclosure joints in one pass, reducing assembly gaps. It also cuts sink holes, faucet holes, and custom shapes for bathroom vanity tops, as well as flat and shaped glass panels for home appliances such as refrigerators and ovens.

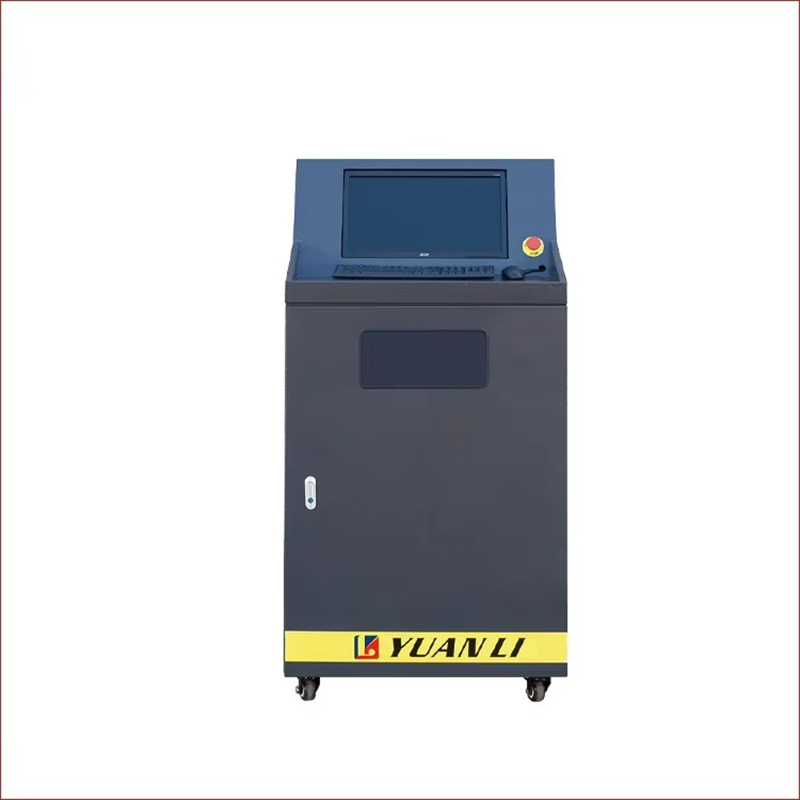

The machine comes with an AC servo CNC control system that supports programmed cutting paths, reducing manual operation requirements for complex shapes. For overseas industrial users, the manufacturer provides engineer on-site service for installation, commissioning, and operational training. The equipment is packaged as a single unit for delivery, with standard export packaging to prevent damage during international shipping.
The machine supports cutting glass up to 80mm thickness, with consistent edge quality across different glass types including float glass, laminated glass, and pre-processed tempered glass.
Yes, the AC 5-axis cutting head supports bevel angles from 0 to 60 degrees, allowing one-step forming of angled edges for glass joints and decorative edges without secondary processing.
The equipment supports 220V, 380V, and 415V power configurations, which can be adjusted to match industrial power standards in different regions.
