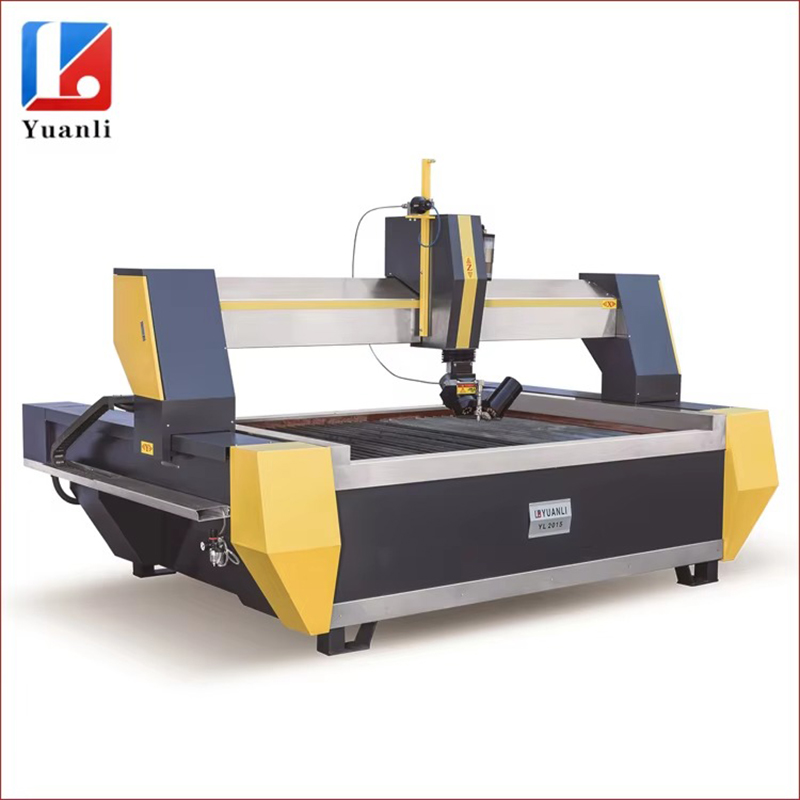

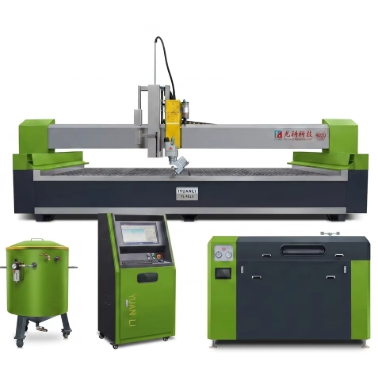

The YUANLI YL3020 5-axis Water Jet cutting machine delivers cold cutting processing without thermal deformation. Designed for stone fabrication, metal processing, and composite material manufacturing, this system integrates an AC servo drive, PLC control, and high-pressure pump to support continuous production for commercial procurement teams. The machine operates at 220V/380V/415V and carries ISO certification, with factory test reports and outgoing inspection videos provided with each unit.
The YL3020 achieves a cutting accuracy of ±0.1mm and a repeatability of ±0.01mm. Fast positioning accuracy measures ±0.025mm, supporting consistent part quality across batch production runs. The traverse speed reaches 6000 mm/min, enabling efficient movement between cutting paths.
The 5-axis AC head provides angular cutting for bevel and chamfer applications, including 45-degree cuts for quartz and sintered stone countertops. This configuration supports seamless joint preparation, edge profiling, and welding preparation cuts across various material thicknesses.
The machine uses an AC servo system for motion control, paired with a PLC-based control architecture. Core components include the servo motor, high-pressure pump, and programmable controller, all covered by a 12-month warranty period.
The system has a footprint of 4200×3600mm (165.35×141.73in) and a total weight of 4250kg, requiring reinforced factory flooring. The unit supports both 50HZ and 60HZ power supplies to accommodate regional electrical standards.
The YL3020 handles marble, granite, quartz, sintered stone, and porcelain slab cutting. Common applications include kitchen countertop fabrication, sink hole cutting, faucet hole drilling, decorative inlay work, and curved edge shaping for bathroom fixtures.
For metal operations, the machine cuts mild steel, stainless steel, aluminum, copper, brass, and titanium alloys. It also processes laminated glass, carbon fiber, and other composite materials, supporting multi-material fabrication workflows.
Parameter | Value |
Machine type | Water Jet Cutters |
Voltage | 220V/380V/415V |
Frequency | 50/60HZ |
CNC control system | AC servo system |
Cutting accuracy | ±0.1mm |
Repeatability | ±0.01mm |
Fast positioning accuracy | ±0.025mm |
Traverse speed | 6000 mm/min |
Core components | PLC, Motor, Pump |
Machinery test report | Provided |
Video outgoing-inspection | Provided |
Warranty | 12 months |
Warranty of core components | 1 Year |
Weight | 4250 kg |
Dimension (L×W) | 4200×3600mm (165.35×141.73in) |
Place of origin | China |
Brand | Yuanli |
Key selling point | Multifunctional |
The AC 5-axis head supports angular cutting up to 45 degrees, suitable for miter joints and chamfered edge applications in stone and metal fabrication.
Yes, each unit comes with a machinery test report and an outgoing inspection video, documenting performance verification prior to delivery.
The system supports 220V, 380V, and 415V electrical configurations, compatible with both 50HZ and 60HZ power grids.
The machine carries a 12-month general warranty, with core components including the PLC, motor, and pump covered by a 1-year warranty term.
