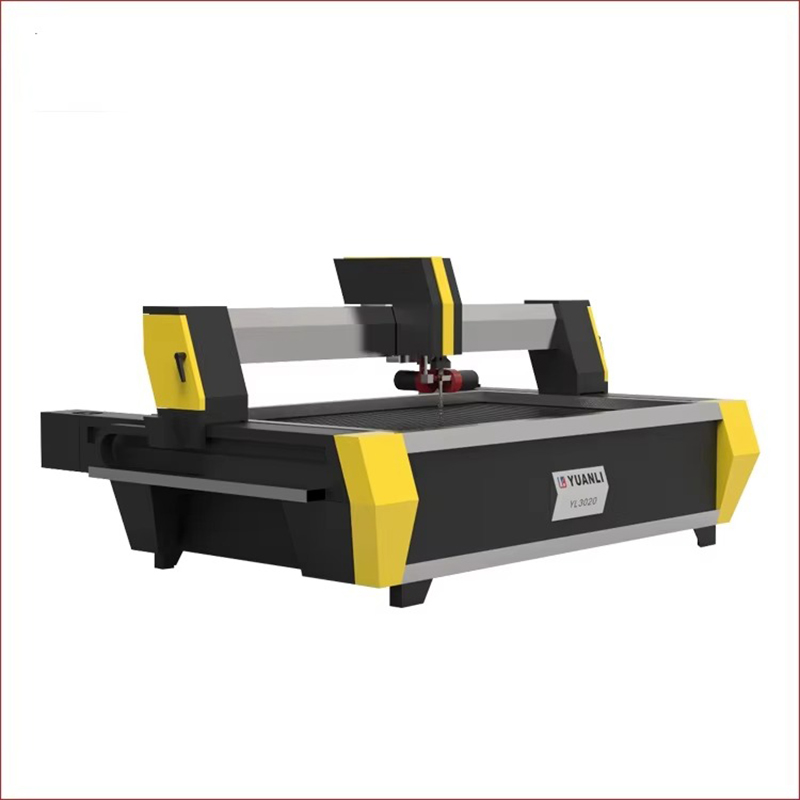

The YL-3020 AC 5-axis water jet cutting machine employs an abrasive cold cutting process that generates no heat affected zone (HAZ) on workpiece surfaces. Designed with a 3.0×2.0m cutting table, this model targets stone fabrication facilities and marble medallion production lines requiring angled and bevel cutting capabilities. The AC servo drive system delivers controlled motion across five axes, enabling compound angle cuts for seamless joint applications in countertop manufacturing.
Parameter | Value | Parameter | Value |
Cutting accuracy | ±0.1mm | Repeatability | ±0.01mm |
Fast positioning accuracy | ±0.025mm | Number of axes | 5 |
Table size | 3.0×2.0m | CNC control system | AC servo system |
Weight | 3500 kg | Core components | PLC, Motor, Pump |
Parameter | Value | Parameter | Value |
Rated power | 37KW (49.62hp) | Voltage | 220V/380V/415V |
Power frequency | 50/60Hz | Certification | CE |
Warranty period | 12 months | Place of origin | China |
Brand | Yuanli | Machinery test report | Provided |
This 5-axis Water Jet system supports 45-degree bevel cutting for quartz and sintered stone slabs, making it suitable for kitchen countertop processing, sink hole and faucet hole cutting, and seamless countertop joint fabrication. It handles marble and granite slab cutting, decorative marble inlay work, stone edge bevel processing, complex stone pattern cutting, and large-format sintered stone fabrication.
Beyond stone applications, the machine cuts mild steel thick plates, stainless steel components, aluminum sheets, copper and brass sections, and titanium alloy materials. It also supports laminated glass cutting, decorative glass pattern work, ceramic slab processing, and carbon fiber composite cutting for multi-material production environments.
The cold cutting mechanism eliminates thermal deformation and HAZ-related material changes, preserving the original structural properties of metals, stones, and composites. Cut edges show minimal burr formation, which reduces the need for polishing and secondary finishing operations in production workflows.
The AC servo CNC system delivers consistent positioning performance for batch production runs. The 5-axis configuration enables angled cuts in a single setup, reducing material handling time for parts that require bevel edges for welding preparation or assembly fitment.
The system processes stone materials including marble, granite, quartz, and sintered stone, plus metals such as mild steel, stainless steel, aluminum, copper, and titanium. It also cuts glass, ceramic, and carbon fiber composite materials.
The machine delivers ±0.1mm cutting accuracy and ±0.01mm repeatability across all axes, with positioning accuracy of ±0.025mm for 5-axis bevel cutting operations.
The system supports 220V, 380V, and 415V electrical configurations to match different regional facility standards, with a rated power of 37KW.
The machine includes a 12-month warranty period. Each unit comes with a machinery test report and outgoing inspection video documentation before shipment. Core components include PLC, motor, and pump systems with documented spare part availability.
