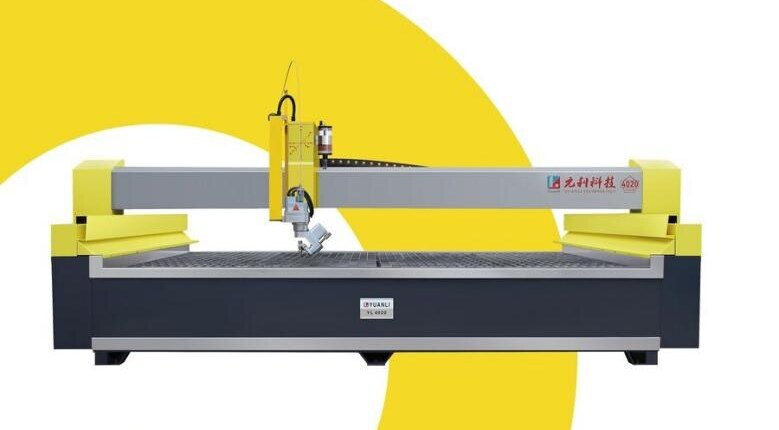

YL3020 AC 5-Axis Waterjet Cutting Machine - 3000 x 2000 mm Gantry
The YL3020 AC 5-Axis Waterjet Cutting Machine offers 3000 x 2000 mm cutting travel, covering full-size stone slabs with clamping margin while retaining full 5-axis bevel capability.
Key Features
3000 x 2000 mm cutting travel - covers full-size stone slabs with clamping margin
0–65° cutting-head swing range — achieves vertical, inclined, bevel and complex angle cuts in one setup. For stone work 45° is the most common angle.
AC servo control system with 220/380/415 V power supply for global installation
Working pressure 450 MPa standard, up to 600 MPa optional
Probe scheme and oil-bubble sealed screw guide-way
Technical Specifications
| Model | YL3020 |
|---|
| Platform dimensions | 4300 x 2900 mm |
|---|
| X travel | 3000 mm |
|---|
| Y travel | 2000 mm |
|---|
| Machine type | Gantry |
|---|
| Cutting heads | 1 |
|---|
| Cutting-head swing range | 0-65° |
|---|
| Cutting accuracy | ± 0.1 mm |
|---|
| Repeatability | ± 0.01 mm |
|---|
| Fast positioning accuracy | ± 0.025 mm |
|---|
| Z travel | 150 - 210 mm, customizable |
|---|
| CNC control system | AC Servo System |
|---|
| Power supply | 220 V / 380 V / 415 V, 50/60 Hz |
|---|
| Working pressure | 450 MPa standard, up to 600 MPa optional |
|---|
| Typical materials | Metal, Composite materials, Sanitaryware, Ceramic, Stone, Sintered stone |
|---|
| Certification | CE |
|---|
YL-Series Platform Dimensions & Working Sizes
| Parameter | YL1313 | YL2015 | YL2515 | YL3015 | YL3020 | YL4020 |
|---|
| Machine type | Cantilever | Cantilever / Gantry | Cantilever / Gantry | Gantry | Gantry | Gantry |
| Platform dimensions (mm) | 2700 × 2200 | 3000×2900 / 3300×2500 | 3500×2900 / 3800×2500 | 4300 × 2500 | 4300 × 2900 | 5300 × 2900 |
| X travel (mm) | 1200 | 2000 | 2500 | 3000 | 3000 | 4000 |
| Y travel (mm) | 1200 | 1500 | 1500 | 1500 | 2000 | 2000 |
| Z travel | 150–210 mm, customizable |
| CNC control system | AC Servo System |
| Cutting accuracy | ±0.1 mm |
| Repeatability | ±0.01 mm |
| Fast positioning accuracy | ±0.025 mm |
| Power supply | 220 V / 380 V / 415 V, 50/60 Hz |
All YL-series platforms are built on the same platform family. Platform size, head count, imaging and cutting pressure are configured to your application — tell us what you need to cut and we will recommend a suitable configuration.
Applications

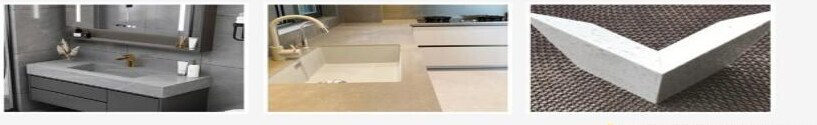

Full-size slab processing, large countertop and island production, sintered stone and ceramic cutting, and metal / composite part manufacturing.
Why Choose Yuanli
Yuanli builds the YL3020 AC 5-Axis Waterjet Cutting Machine with an integrated machine structure, probe scheme and oil-bubble sealed screw guide-way. Every unit is CE certified and can be configured with 220 V / 380 V / 415 V power supply and working pressure from 450 MPa standard up to 600 MPa optional.
