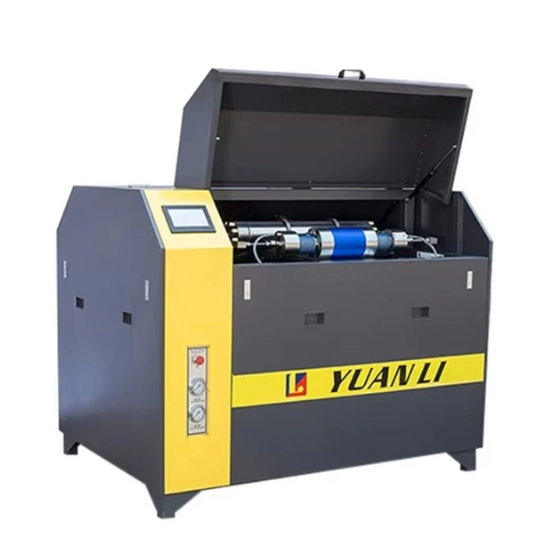

The Economical Yuanli Water Jet Cutting Machine is a standard 3-axis cold cutting unit designed for routine material processing in small to medium-scale industrial operations. This model delivers consistent cutting performance for common materials while controlling initial equipment investment costs, making it suitable for business operations with standard thickness processing requirements and steady production volumes.
This model supports routine stone processing tasks including standard countertop cutting, sink hole drilling, marble and granite slab cutting for small fabrication shops, and basic edge bevel processing. It handles standard thickness sintered stone and quartz materials for residential and commercial countertop production runs.
For metal processing, the unit cuts standard thickness mild steel sheets, stainless steel plates, aluminum sheets, copper, and brass materials for general fabrication work. It supports straight cuts and basic contour cutting for structural parts and standard metal components that do not require tight tolerance precision forming.
The machine cuts standard laminated glass, flat glass for decorative applications, and ceramic tiles for regular fabrication orders. It supports basic pattern cutting for glass and ceramic parts without requiring specialized configuration adjustments.
Parameter | Value | Parameter | Value |
Equipment Type | Water Jet Cutters | Voltage | 220V/380V/415V |
Power Frequency | 50/60Hz | Warranty | 12 Months |
Core Components | PLC, Motor, Pump | Place of Origin | China |
Machine Weight | 4560kg | Brand Name | Yuanli |
Overall Dimensions | 4200×3500mm (165.35×137.80in) | After-Sales Service | Engineers available to service machinery overseas |
Product Name | Water Jet cutting machine | CNC Control System | AC servo system |
Cutting Accuracy | ±0.1mm | Repeatability | ±0.01mm |
Fast Positioning Accuracy | ±0.025mm | - | - |
Packaging Details | 1. Whole machine wrapped in stretch film; 2. Spare parts packed with soft protective material to prevent transit damage | Port of Dispatch | Guangzhou/Shenzhen |
Selling Units | Single item | - | - |
The cold cutting process produces no heat affected zone during operation, avoiding thermal deformation of standard thickness workpieces. Cut edges have minimal burrs, reducing required polishing steps for routine processing tasks. The unit supports 45° bevel cutting for standard welding and joint preparation work.

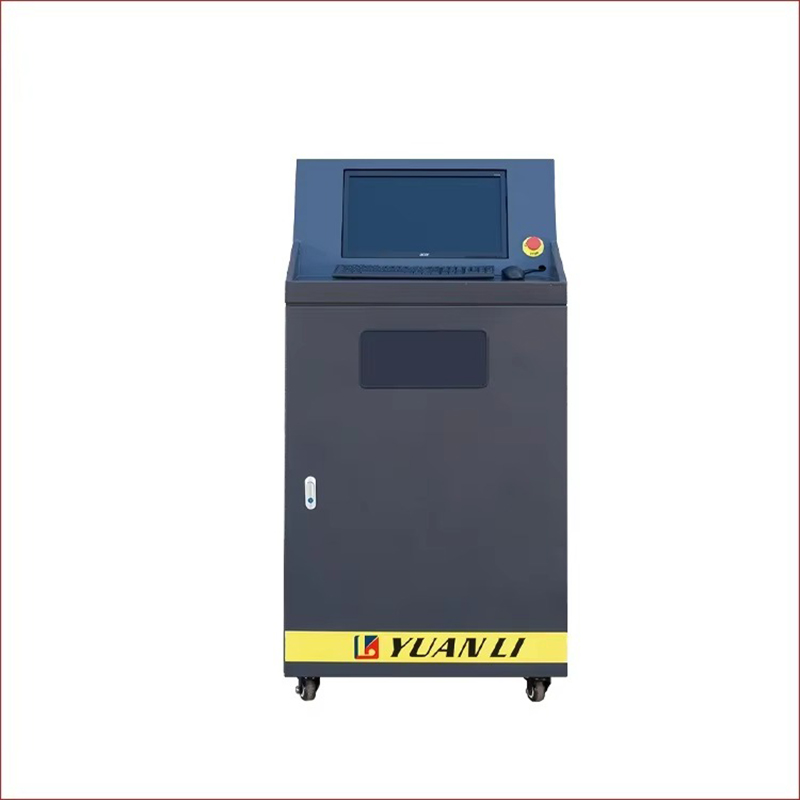

The AC servo control system supports pre-programmed cutting paths for standard part geometries. The ±0.1mm cutting accuracy meets tolerance requirements for most conventional industrial processing tasks. The control interface supports basic CAD file import for standard cutting path programming.

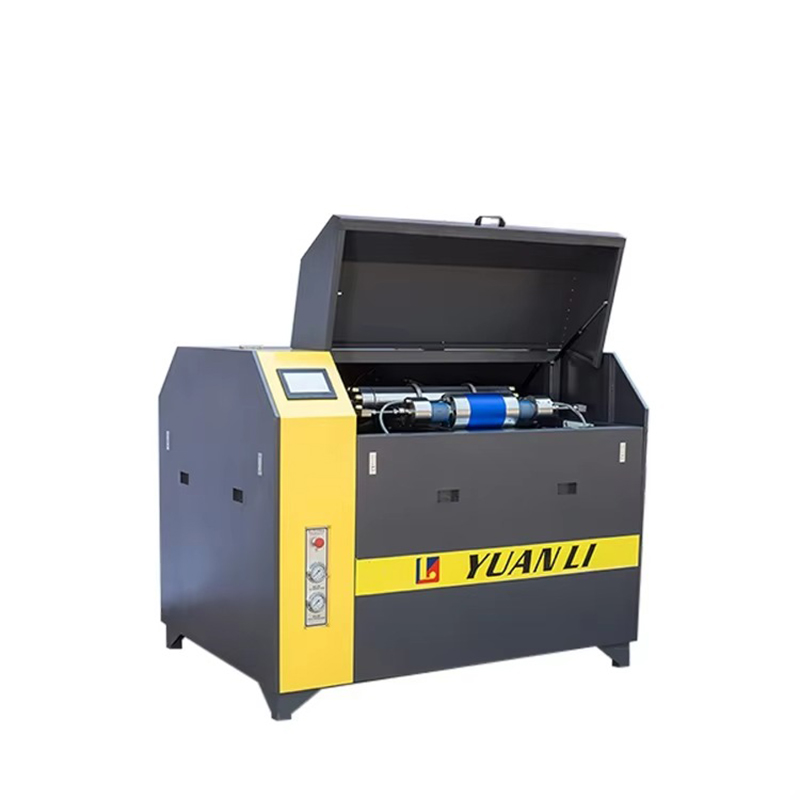

The unit uses standardized core components including PLC, motor, and high-pressure pump, reducing spare part replacement costs and simplifying daily maintenance procedures. The frame structure is designed for steady operation during 8-hour daily production cycles, matching the workflow needs of small-scale processing operations.
All economical model units include the same 12-month core component warranty as standard Yuanli Water Jet machines. Pre-delivery inspection includes functional testing of all core systems, with inspection documentation provided to buyers before shipment. Overseas engineering support is available for on-site installation and operator training for commercial users as requested.
This model is configured for routine, standard-thickness material processing with core functionality matching industrial requirements, while optimizing component selection to reduce initial purchase cost for users with regular production volumes.
This unit supports 220V, 380V, and 415V power inputs, compatible with 50/60Hz regional power systems.
This model is designed for standard thickness materials used in routine processing. For thick plate or high-precision complex cutting requirements, the 3020 standard 3-axis model is recommended for heavy-duty applications.
Purchase includes 12 months of core component warranty, pre-delivery functional testing, and access to overseas engineering support for installation, commissioning, and maintenance guidance.
