Custom 3-Axis Waterjet Cutting Machine
YUANLI offers configurable 3-axis waterjet cutting machines for flat profiles and programmed contours. Machine structure, working dimensions and cutting-head configuration can be selected to suit your workpieces, workshop layout and production requirements.
Featured Project: Custom 6 × 3 m Machine

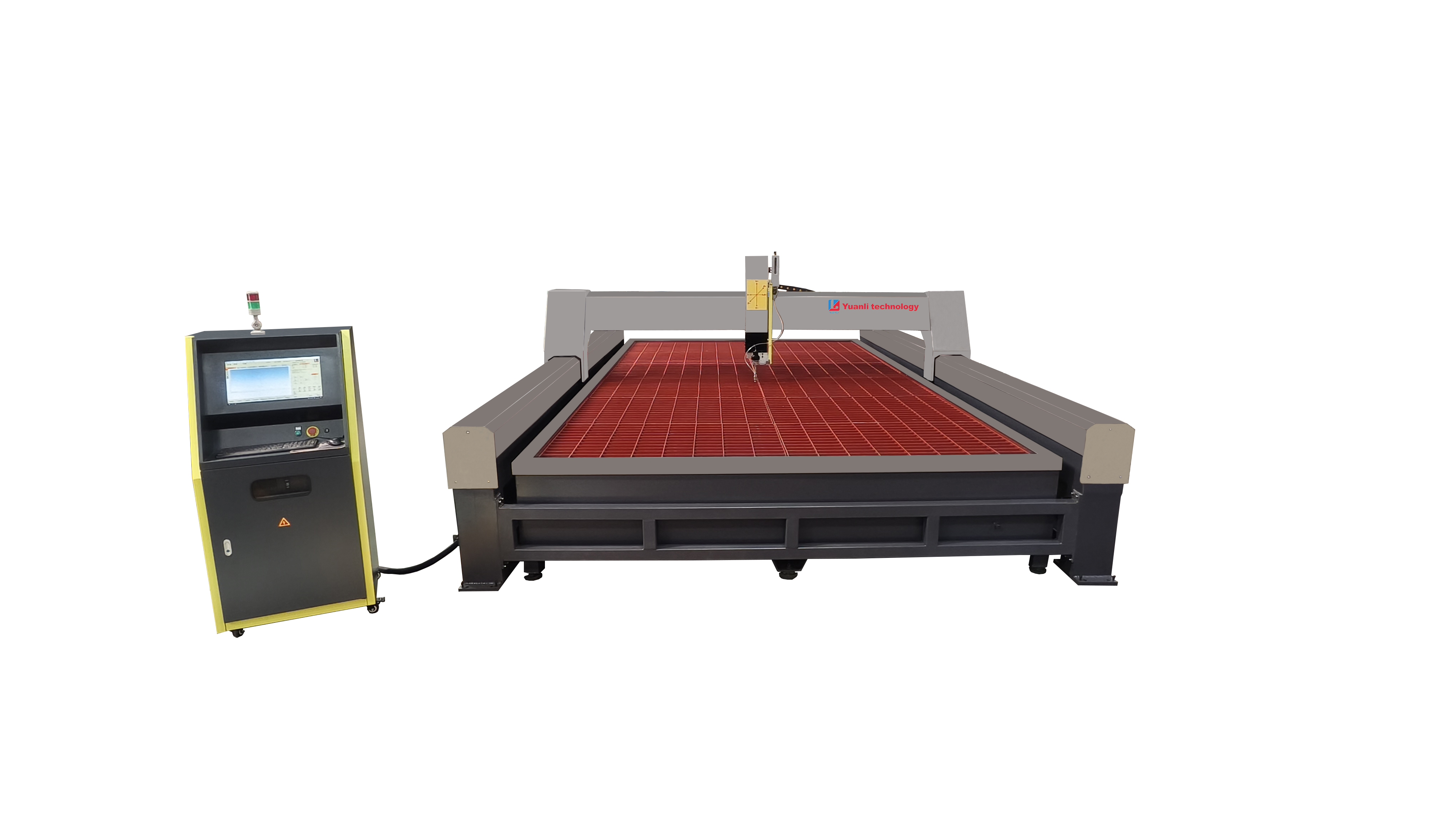

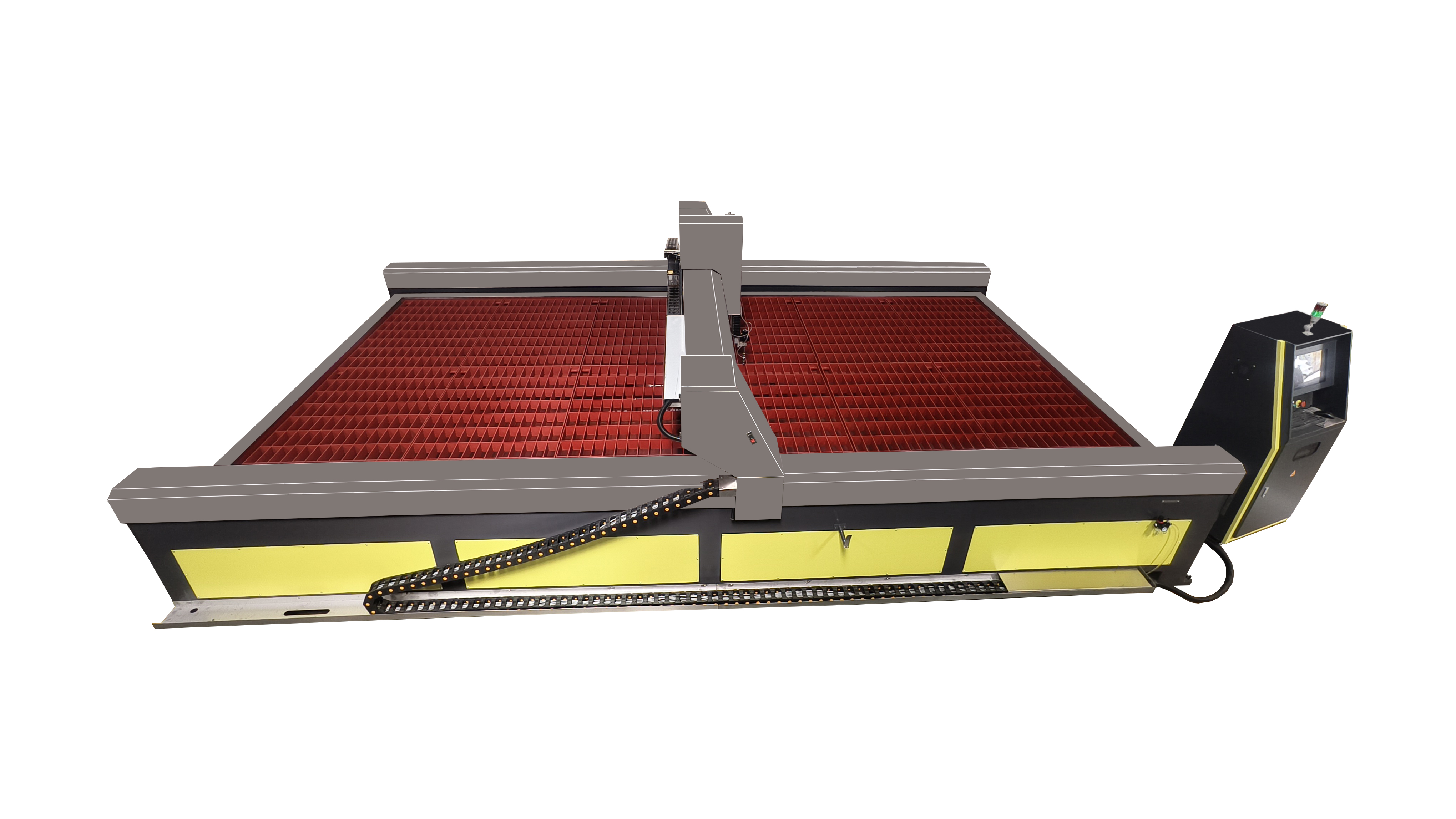

The machine shown in the photographs is a custom 6 × 3 m waterjet cutting machine.
This project illustrates one available configuration. Your machine can be configured with different working dimensions, structural arrangements and cutting-head quantities. Final dimensions, equipment specifications and installation requirements are confirmed in the quotation and approved machine layout.
Configuration Options
| Item | Available options |
|---|
| Cutting system | CNC 3-axis waterjet |
| Machine structure | Gantry or cantilever |
| Frame arrangement | Separate machine frame and cutting tank configuration available |
| Cutting heads | Single, dual or multiple heads |
| Working dimensions | Custom sizes according to project requirements |
| Pump and accessories | Selected for the material, thickness and production requirements |
| Final configuration | Confirmed following application review |

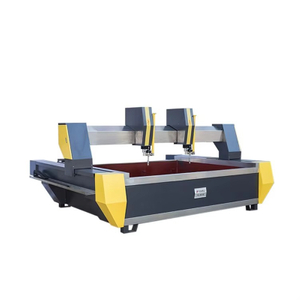

Single, Dual or Multiple Cutting Heads
A single-head configuration can be selected for varied cutting jobs. Dual-head and multi-head configurations can be evaluated for suitable repeat-part applications.
For a multi-head proposal, please provide your part drawings, required head spacing and production quantity. Head arrangement, usable cutting area and pump capacity must be reviewed together. Multiple heads do not automatically provide independent cutting paths.
Tell Us What You Need to Cut
To help us recommend a suitable configuration, please send:
Material type and thickness range
Maximum workpiece size and required cutting area
Drawings or sample photographs
Required tolerances and edge quality
Single-head, dual-head or multi-head preference
Expected production quantity
Workshop layout, available access and loading method
Electrical supply and delivery country
If you are unsure which structure or cutting-head arrangement to choose, share your application with us. Our team will review your requirements and propose a suitable machine configuration.
See the Cutting Result Before You Decide
A free test cut can help you assess whether the cutting result meets your requirements. Send your drawing, material, thickness and expected edge quality. Sample availability and shipping arrangements will be confirmed before testing.
Request a Custom Configuration
Watch the Custom 6 × 3 m Machine
See the featured YUANLI custom 6 × 3 m waterjet cutting machine in our video.
Watch the Machine Video on YouTube
