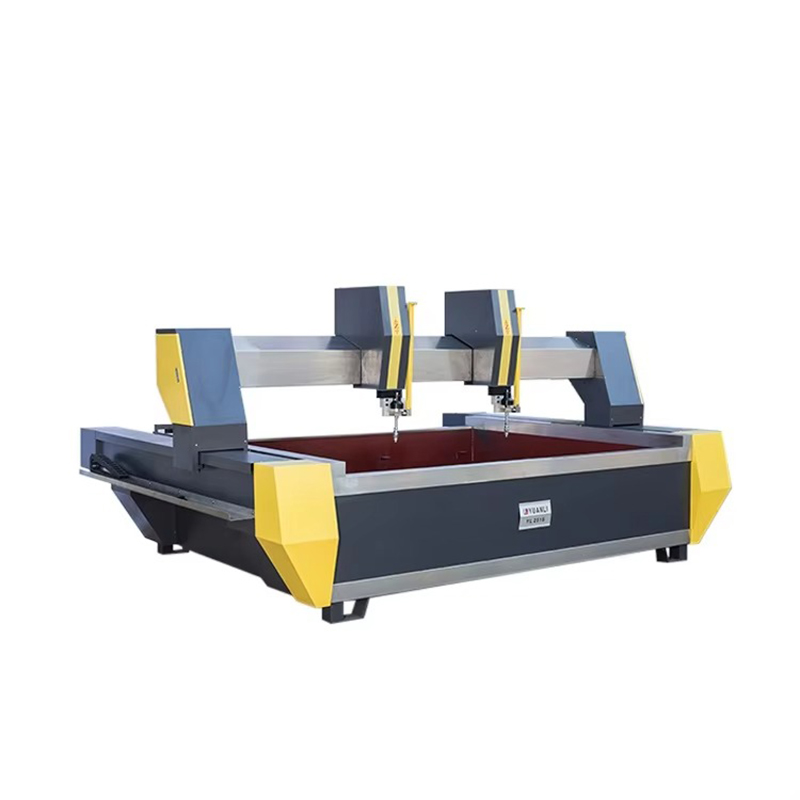

Foshan Yuanli Precision Machinery Co., Ltd. designs the 2515 AC 5-axis CNC Water Jet cutter as a multi-functional cutting solution for industrial applications requiring bevel cuts and complex geometry processing. With 15+ years of experience in Water Jet equipment manufacturing, Yuanli integrates AC five-axis linkage technology into the standard 2500×1500mm cutting platform, supporting both flat cutting and angled cutting operations in a single setup. The cold cutting process eliminates thermal distortion, making the system suitable for precision metal fabrication, stone processing, and advanced composite material manufacturing.
The AC five-axis cutting head includes two additional rotary axes beyond standard X/Y/Z linear motion: the A-axis provides ±60° swing angle, while the C-axis supports infinite 360° rotation. This configuration allows the cutting head to maintain perpendicular alignment to material surfaces during bevel operations, producing taper-free edges and angled cuts without secondary setup. The system achieves angle positioning accuracy of ±0.5°, meeting requirements for welding preparation and precision joint fabrication.

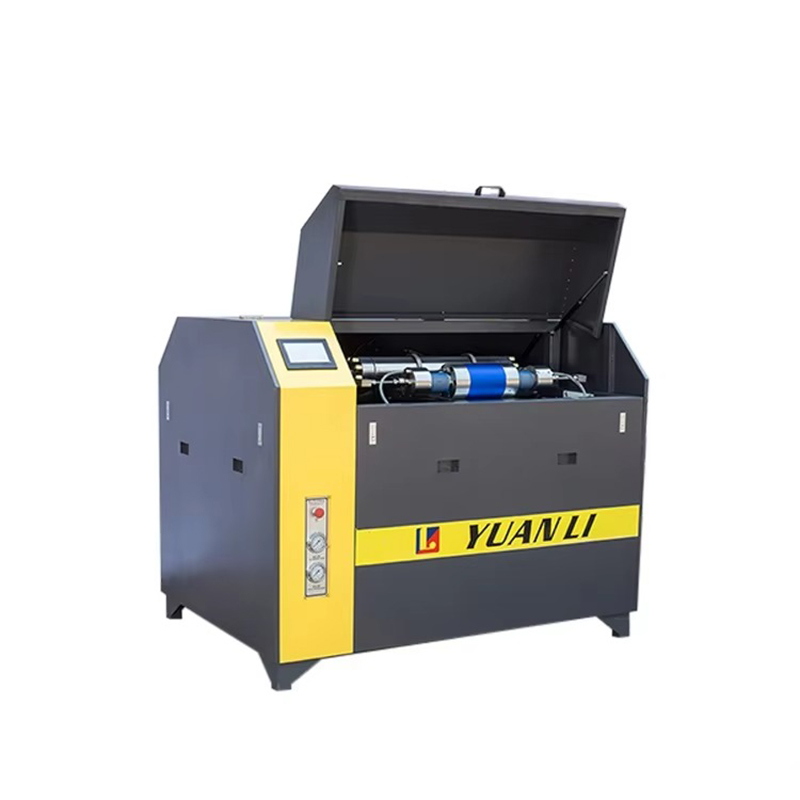

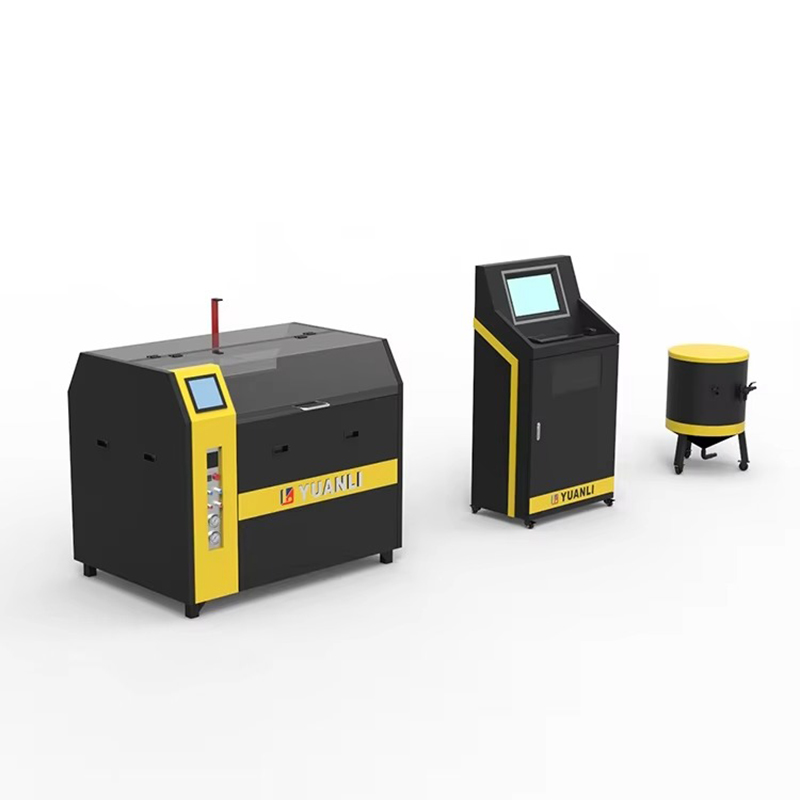

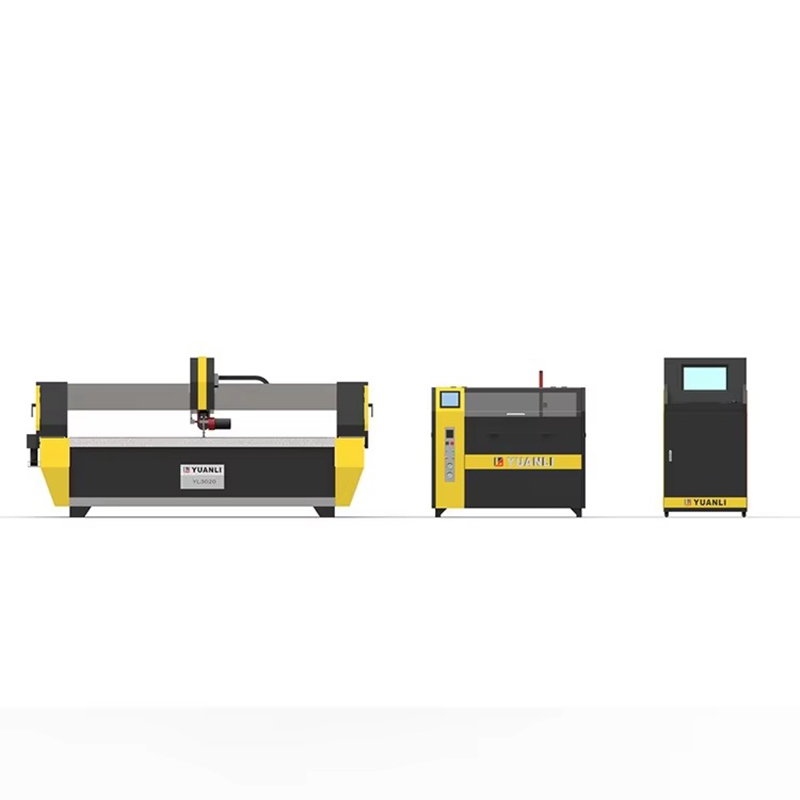

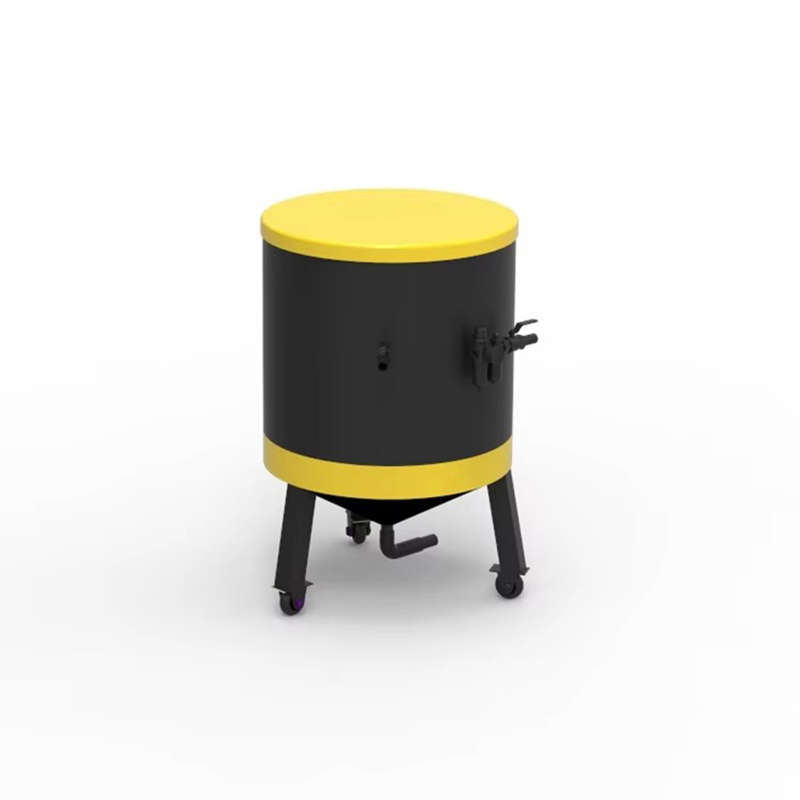

Each unit includes a 37kW high-pressure intensifier pump, five-axis CNC control system with 3D cutting simulation, AC servo drives for all axes, automatic abrasive delivery system, and integrated worktable with stainless steel water catcher. All equipment undergoes 72-hour continuous running tests before delivery, with full inspection documentation provided for commercial procurement verification.
Parameter | Specification | Parameter | Specification |
Product Name | 5-axis CNC Water Jet cutter | Brand Name | Yuanli |
Place of Origin | China | Rated Power | 37kW (49.62hp) |
Voltage Options | 220V/380V/415V customizable | Frequency | 50/60Hz |
X-axis Travel | 2500mm | Y-axis Travel | 1500mm |
Z-axis Travel | 200mm | Total Weight | 4000kg |
A-axis Swing Angle | ±60° | C-axis Rotation | 360° infinite |
Linear Cutting Accuracy | ±0.1mm | Angle Positioning Accuracy | ±0.5° |
Repeatability | ±0.01mm | Rapid Positioning Accuracy | ±0.025mm |
Maximum Working Pressure | 380MPa (55,000psi) | Linear Cutting Speed | 0-12000mm/min |
Maximum Straight Cut Thickness (Steel) | 100mm | Maximum Bevel Cut Thickness | 50mm |
Nozzle Diameter Range | 0.26-0.35mm | Abrasive Specification | 60-120 mesh garnet |
Water Consumption | 3.7L/min | Overall Dimensions (L×W×H) | 4500×3000×2400mm |
Core Components | PLC, Motor, Pump | Control System | AC servo 5-axis CNC |
Certification | CE, ISO9001:2015 | Core Components Warranty | 12 months |
Complete Machine Warranty | 12 months | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | After-Sales Service | Engineers available for overseas service |
The five-axis system automatically compensates for stream lag and taper during high-speed cutting, maintaining consistent edge quality across different cutting speeds and material thicknesses. This function reduces the taper angle from typical 1°-3° in three-axis systems to less than 0.2°, producing edges that meet assembly requirements without additional milling or grinding operations.
The ±60° swing angle supports 45° bevel cuts for welding preparation, chamfering, and V-groove processing in a single setup. This eliminates the need for secondary angle machining operations, reducing total processing time by 35%-40% for parts requiring angled edges. The system supports variable angle cutting along complex contours, producing transition bevels for structural steel components.

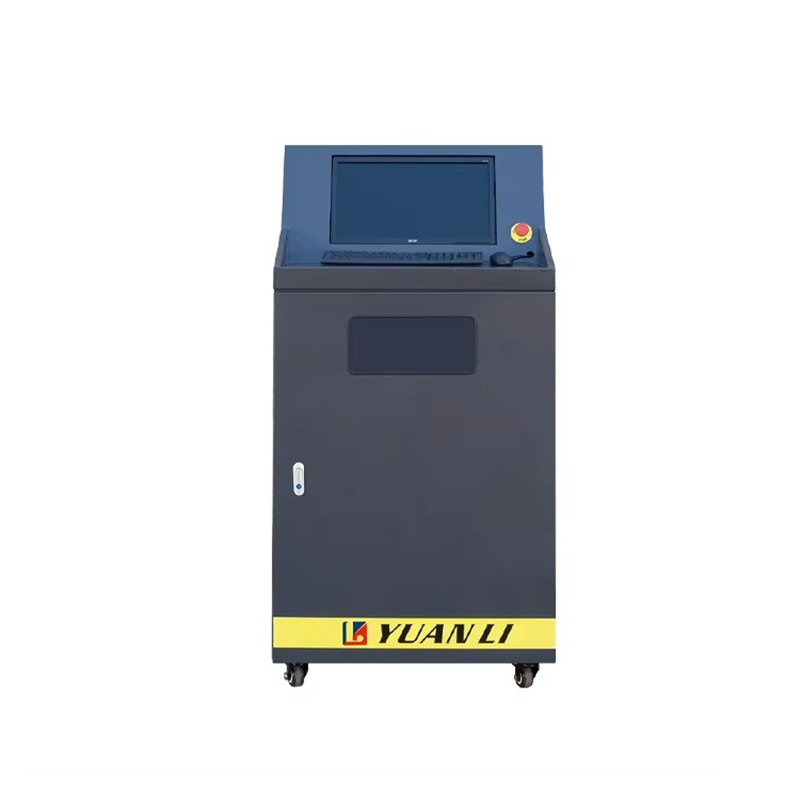

The CNC system includes 3D path simulation software that visualizes cutting head movement and checks for potential collisions before production runs. Operators can import 3D CAD files directly into the control system, which automatically generates five-axis cutting paths. The software includes automatic angle adjustment to maintain consistent cutting speed across curved surfaces.
The five-axis capability expands the range of producible parts compared to standard three-axis systems.
Typical applications include bevel cutting for weld preparation on structural steel components, angled cuts for pipe and tube connections, complex contour metal parts for machinery manufacturing, and precision components for aerospace and automotive supply chains. The system cuts mild steel, stainless steel, aluminum, titanium, and copper alloys without thermal distortion.
For stone fabrication, the system produces seamless countertop joints with 45° miter cuts, sink cutouts with finished edges, and decorative inlays with complex beveled edges. The five-axis motion also supports cutting of laminated glass, ceramic plates, carbon fiber composites, and foam materials for industrial applications.
The 12-month warranty covers all core components including the five-axis cutting head, servo motors, CNC controller, and high-pressure pump. Certified engineers are available for overseas installation, commissioning, and operator training at customer facilities. Remote diagnostic support is available via internet connection for software and control system troubleshooting.
Standard consumable parts including nozzles, orifices, and high-pressure seals are stocked in regional warehouses to reduce delivery lead times. Technical support teams provide programming assistance and process optimization guidance for specific material cutting applications.
Five-axis systems eliminate taper on cut edges, produce bevel cuts in one setup, and cut complex 3D geometries that require multiple setups on three-axis machines. This reduces secondary operations and improves part accuracy for applications requiring angled edges.
Yes, the control system supports both three-axis flat cutting and five-axis angled cutting. Operators can select the appropriate mode for each job, using three-axis mode for simple 2D shapes to maximize cutting speed.
Standard training takes 3-5 days for operators with basic CNC experience. The 3D simulation software includes automatic path generation for common bevel operations, reducing programming complexity for standard applications.
The five-axis head requires periodic lubrication of rotary seals every 500 operating hours, with seal replacement recommended every 2000 hours. The cutting head is designed for modular maintenance, allowing seal replacement without complete disassembly of the rotary assembly.
