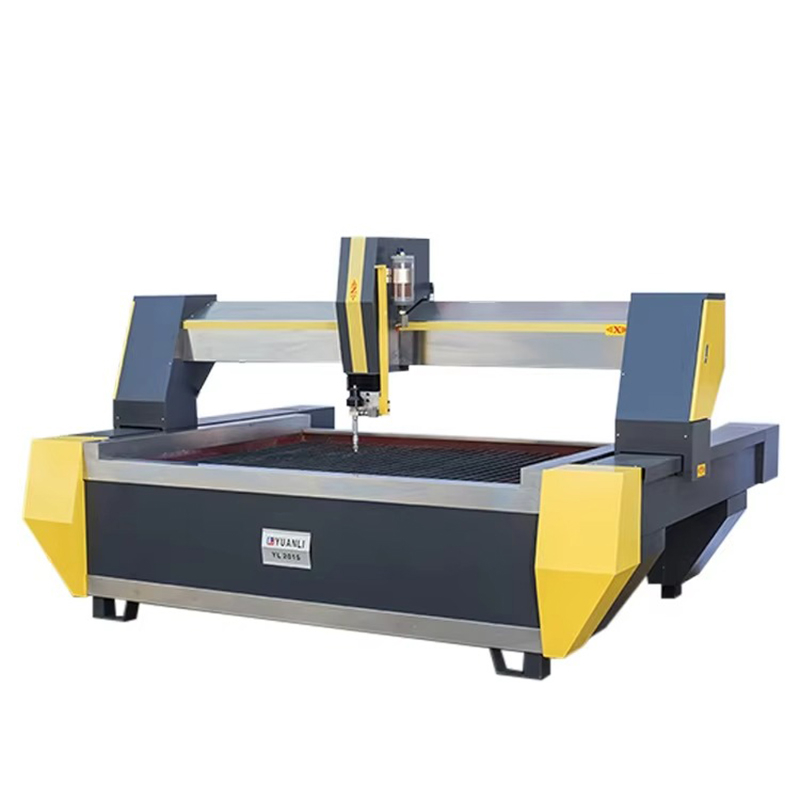

Engineered for high-volume stone and tile processing plants, this 3020 3-axis CNC water jet features a spacious 3000×2000mm cutting bed that accommodates full-size marble, ceramic and sintered stone slabs in a single setup, eliminating repositioning downtime. The PLC-controlled automated system enables single-operator production, reducing labor requirements for tile and stone processing facilities by 40%. Driven by a 37kW AC servo system, it delivers consistent ±0.1mm cutting accuracy across large panels. Manufactured to CE standards with global spare parts supply and remote technical diagnostics, it maximizes uptime for high-throughput production environments.
The Yuanli 3020 3-axis water jet provides a cold-cutting solution for facilities processing flat-sheet materials where vertical cuts meet production requirements. It is optimized for stone slab sizing, ceramic tile fabrication, metal plate cutting and glass processing that primarily requires straight 90° edges without bevel processing. Compared with 5-axis systems, this 3-axis design offers a more compact footprint and lower capital investment, making it cost-effective for entry-level facilities and high-volume straight-cut operations.
It supports standard production workflows including marble and granite slab sizing to finished dimensions, ceramic and porcelain tile cutting for flooring and wall cladding, sink and faucet cutouts in countertop blanks, mild steel and stainless steel plate processing for fabrication shops, aluminum sheet cutting, and decorative and industrial glass fabrication. The cold-cutting process produces no heat-affected zone, allowing immediate part handling without cooling periods and eliminating thermal distortion in thin materials.
The machine uses a fabricated steel frame with precision-machined mounting surfaces for linear motion components, assembled and aligned in a temperature-controlled factory environment. X and Y axes adopt helical rack and pinion drive systems with AC servo motors, delivering higher travel speeds than 5-axis configurations for increased straight-cut throughput. The Z axis uses a ball screw drive with 150mm travel for nozzle height adjustment and material thickness variation.
A 37kW intensifier pump delivers 420MPa operating pressure, with a hydraulic drive system built for continuous duty cycles in production settings. The fixed-angle straight cutting head with manual abrasive metering reduces maintenance complexity compared with articulated 5-axis heads.
The CNC control system includes a 15-inch industrial touchscreen interface, supports standard CAD file formats, and offers basic nesting functionality for material optimization.
Technical Parameter | Value | Technical Parameter | Value |
Power Supply | 380V (220V/415V optional) | Core Components | PLC, Servo Motor, Intensifier Pump |
Warranty Term | 12 Months | Installed Power | 37kW (49.62hp) |
Place of Origin | Foshan, China | Total Machine Weight | 3000 kg |
Brand | Yuanli | After-sales Support | On-site field service available |
Product Name | 3-Axis Water Jet Cutting Machine | Cutting Table Dimensions | 3000mm × 2000mm |
Control Platform | AC Servo CNC System | Linear Cutting Accuracy | ±0.1mm |
Positioning Repeatability | ±0.01mm | Rapid Positioning Accuracy | ±0.025mm |
Power Frequency | 50/60Hz | Certifications | ISO 9001, CE |
Axis Setup | 3-Axis Fixed Straight Cutting Head | Peak Operating Pressure | 420MPa |
Abrasive Consumption | 200-500g/min | Nozzle Diameter | 0.26-0.35mm |
Focusing Tube Bore | 0.76-1.02mm | X-axis Max Travel Speed | 0-20m/min |
Y-axis Max Travel Speed | 0-20m/min | Z-axis Stroke | 150mm |
Transmission Structure | Rack and Pinion + Linear Guide | Water Orifice Diameter | 0.30mm |
For stone processing, the machine cuts marble and granite slabs up to 180mm thick, sintered stone and porcelain panels up to 100mm thick, and ceramic tiles for commercial and residential installations. The fixed vertical cutting head produces consistent 90° edges suitable for standard slab installation with on-site joint finishing. The large-format table accommodates standard full-size slabs, reducing multiple setups when processing large stone panels. The 20m/min travel speed significantly increases throughput for high-volume tile and slab sizing operations.
For metal fabrication, the system cuts mild steel up to 120mm thick, stainless steel up to 100mm thick, and aluminum and copper sheets up to 80mm thick, delivering perpendicular edges ready for welding and assembly without additional edge squaring. For glass processing, it cuts laminated, float and decorative glass up to 80mm thick without edge chipping or cracking associated with mechanical cutting. It also cuts rubber, foam and composite materials for gasket and industrial component production.
The system maintains ±0.1mm linear positioning accuracy across the full work envelope, with ±0.01mm repeatability for consistent part dimensions across batch runs. The rack and pinion drive delivers 20m/min rapid travel speed, reducing non-cutting time between parts and improving overall throughput by approximately 25% compared with ball-screw 5-axis configurations on equivalent cutting paths. This makes the 3-axis configuration highly suitable for mass production of simple-geometry parts.
The fixed cutting head design reduces maintenance requirements compared with articulated 5-axis systems, with fewer moving parts and no angle calibration needed during routine service. Focusing tubes provide 80-120 hours of cutting service before replacement; high-pressure seals require inspection and replacement every 600 operating hours. Abrasive consumption ranges 200-500g/min depending on material thickness and cut quality, with water consumption of 3-4 liters per minute during cutting.
Each machine includes factory-supervised installation and commissioning, plus 3 days of standard operator training covering machine operation, file preparation, routine maintenance and safety procedures. The simplified control interface reduces training time for new operators, with most users achieving independent operation within one week of installation. Remote diagnostic software allows service technicians to connect to the control system for troubleshooting and parameter adjustment without on-site visits.
The machine carries a 12-month warranty against defects in materials and workmanship from the commissioning date. Wear parts including nozzles, focusing tubes and seals are covered against manufacturing defects for 30 days after installation. A complete spare parts kit with common wear items ships with each machine to support initial operation; ongoing spare parts orders are shipped via international courier or sea freight based on delivery urgency. Technical support is available during standard working hours, with emergency support for critical production issues.
3-axis machines perform vertical cutting for straight 90° edges, designed for flat material processing and standard part production. 5-axis machines have an articulated cutting head for angled cuts, bevels and 3D shapes. 3-axis systems offer higher travel speeds and lower acquisition and maintenance costs.
The machine cuts marble and granite up to 180mm thick, sintered stone up to 100mm thick, and ceramic tile 3-20mm thick at production travel speeds. Thicker materials can be cut with reduced feed rates.
The 3-axis frame can accept a 5-axis cutting head upgrade, though this requires control system updates and mechanical modifications. Facilities anticipating bevel cutting requirements within 2 years should evaluate 5-axis configurations at initial purchase.
Standard machines require 380V three-phase power at 50/60Hz with minimum 50A service capacity. 220V and 415V power configurations are available as factory options.
The machine footprint is approximately 4500mm × 3200mm, with an additional 1000mm clearance recommended on all sides for maintenance access and material handling.
