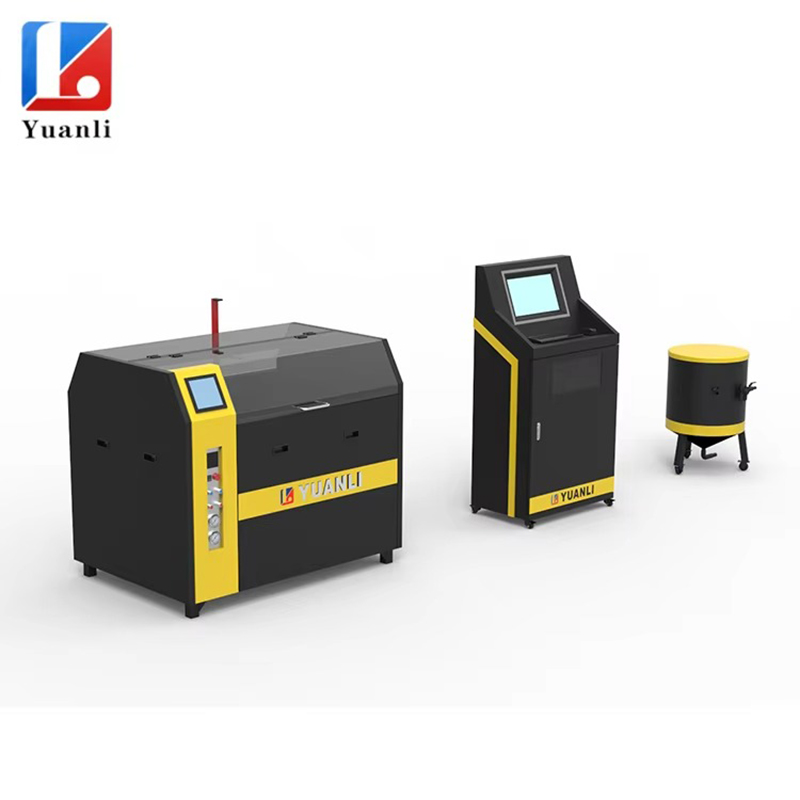

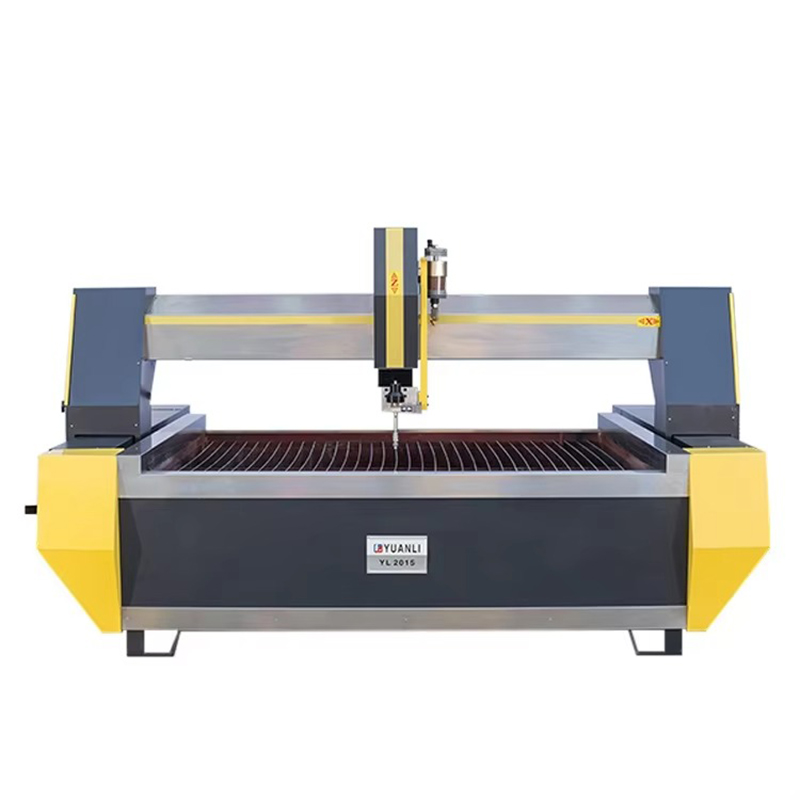

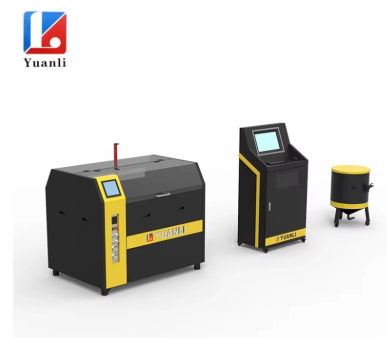

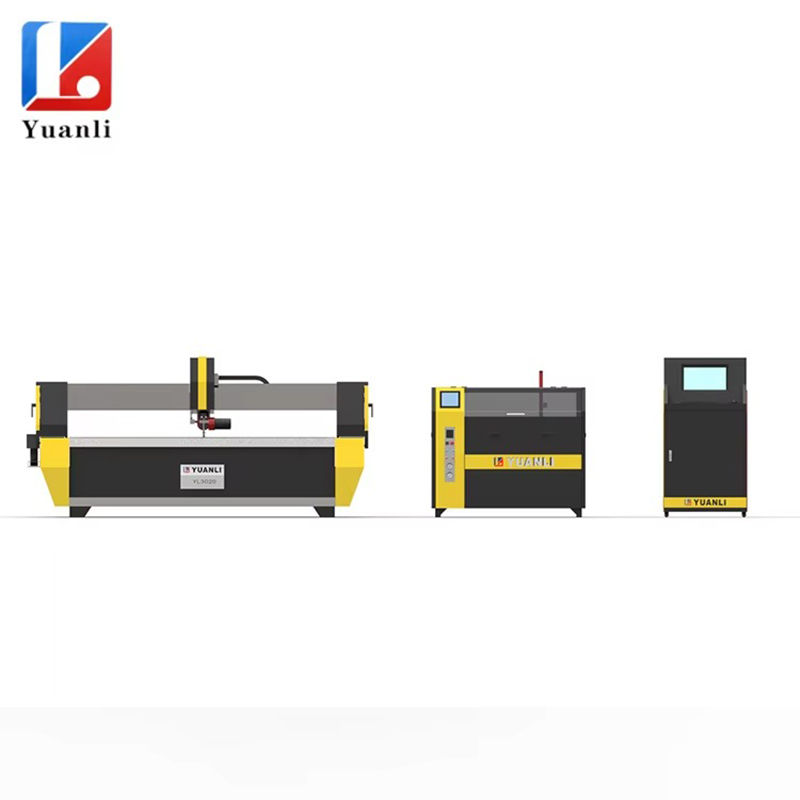

This cold-cutting system operates on 380V three-phase industrial power, configured for continuous operation in stone fabrication and metal processing facilities. The machine integrates a 37kW high-pressure intensifier pump with AC servo motion control for consistent cutting performance across production runs.
Parameter Category | Specification |
|---|---|
Rated Power | 37kW (49.62HP) |
Electrical Supply | 380V, 50/60Hz, 3-phase |
Control System | AC servo CNC system |
Core Components | PLC, servo motor, high-pressure pump |
Parameter Category | Specification |
|---|---|
X-Y Axis Travel | 3000 × 2000mm |
Z Axis Travel | 200mm |
Cutting Accuracy | ±0.1mm |
Repeat Positioning Accuracy | ±0.01mm |
Rapid Traverse Speed | 0-15m/min |
Parameter Category | Specification |
|---|---|
Maximum Working Pressure | 420MPa (60,000PSI) |
Maximum Cutting Thickness (Mild Steel) | 50mm |
Maximum Cutting Thickness (Granite) | 150mm |
Abrasive Feed Rate | 200-600g/min |
Machine Weight | 4000kg |
This model carries CE certification according to European machinery safety standards, with design features verified for installation in commercial production environments.
The electrical cabinet meets IP54 protection rating, with overload protection circuits, emergency stop loops, and insulated wiring that complies with EN 60204-1 requirements. All electrical components carry appropriate certification markings for industrial use.
Moving axes are equipped with physical guards and limit switches to prevent over-travel. The cutting area includes a safety interlock system that pauses operation when access panels are opened during production.
The high-pressure assembly includes burst discs and pressure relief valves set to activate at 450MPa. All high-pressure tubing is tested to 1.5× working pressure before delivery, with documented pressure test reports available for inspection.
The water jet cutting process uses a high-velocity stream of water mixed with abrasive garnet to remove material without generating heat in the workpiece.
This cold-cutting method produces no heat-affected zone (HAZ), eliminating thermal distortion, hardening, or material property changes in the cut edge. This is particularly relevant for stainless steel, aluminum, and heat-treated alloys used in industrial applications.

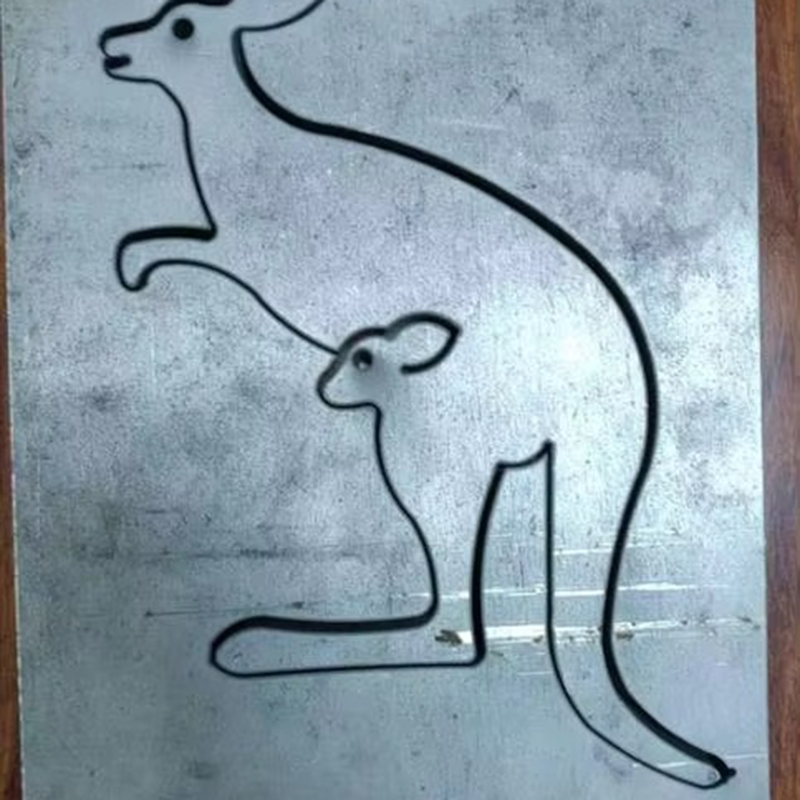

Cut edges typically achieve Ra 3.2-6.3μm surface roughness directly from the machine, reducing the need for secondary grinding or polishing operations on most stone and metal components. Edge taper measures less than 0.1mm per 10mm of material thickness.
For stone countertop production, this process reduces edge polishing time by approximately 40% compared to saw cutting, according to production data from fabrication facilities using this equipment.
The 3-axis cutting head configuration supports straight cutting and 90-degree edge preparation for common production workflows.

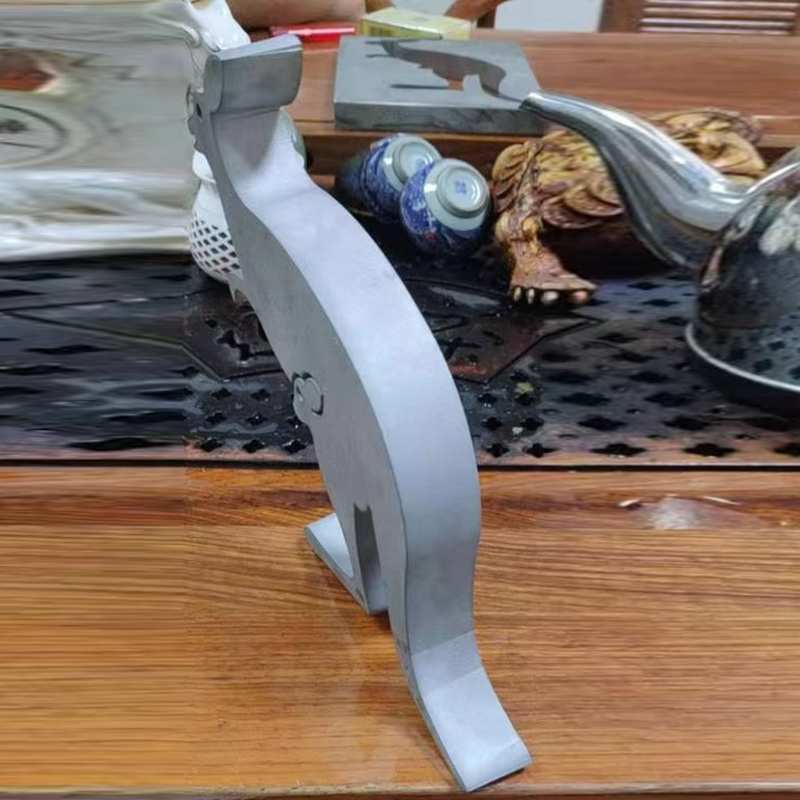

The machine cuts quartz, sintered stone, marble, and granite slabs for kitchen and bathroom countertops. Standard operations include sink cutouts, faucet hole drilling, miter joints for seamless corners, and edge profiling up to 45-degree bevels.
For metal processing facilities, the system cuts mild steel, stainless steel, aluminum, copper, and brass plates up to the specified thicknesses. Typical applications include equipment housings, structural brackets, and custom machine components.
The system cuts laminated glass, carbon fiber panels, and composite materials without delamination, supporting specialty applications in transportation and construction sectors.
The machine carries a 12-month warranty from the date of installation, covering defects in materials and workmanship. Consumable items including nozzles, orifices, and high-pressure seals are not included in warranty coverage.
Online technical support is available during standard business hours (UTC+8, Monday-Friday), with response times within 4 working hours for troubleshooting requests. Remote diagnostics can be performed via the machine's CNC system network connection.
This machine cuts stone materials (granite, marble, quartz, sintered stone), metals (mild steel, stainless steel, aluminum, copper, brass), glass, ceramics, and composite materials using abrasive water jet technology.
Maximum thickness varies by material: 50mm for mild steel, 80mm for stainless steel, 120mm for aluminum, and 150mm for granite and other stone materials.
The machine requires 380V, 50/60Hz, three-phase electrical supply with minimum 80A circuit capacity. Installation requires a dedicated ground connection with resistance less than 4Ω.
The standard warranty period is 12 months from installation or 14 months from shipment, whichever comes first. Extended warranty packages are available for commercial procurement orders.
