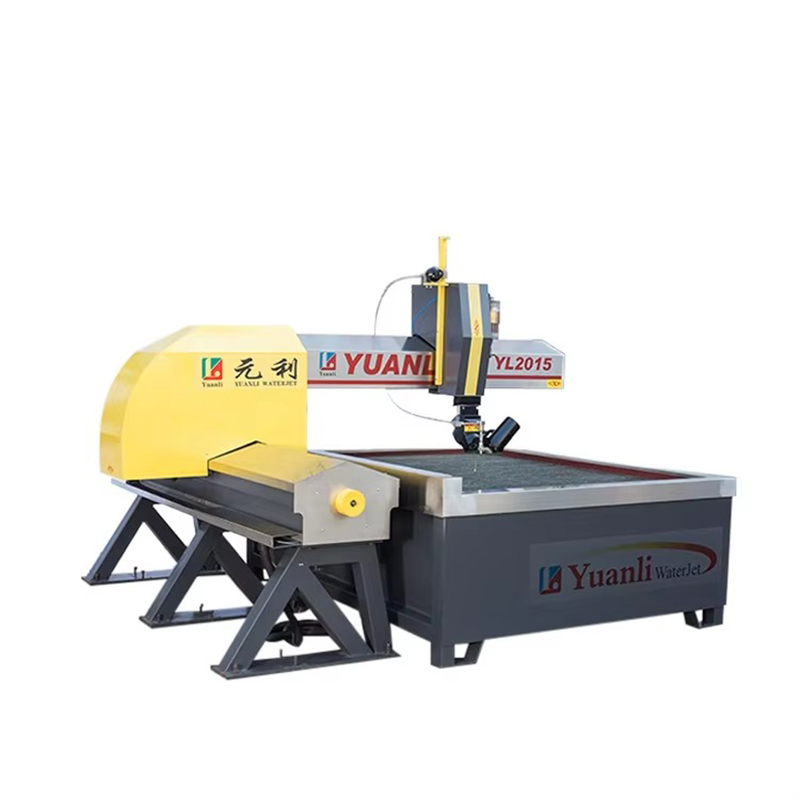

Purpose-built for metal fabrication shops and precision component manufacturers, this engine-powered abrasive water jet delivers clean, precision cutting for brass, aluminum, copper, stainless steel and titanium alloys without thermal distortion. Driven by a 37kW intensifier pump delivering steady 420MPa pressure, it produces dross-free edges on materials up to 150mm thick, eliminating secondary deburring steps. Unlike plasma or laser cutting, its cold-cutting principle creates no heat-affected zone and causes no material work hardening. CE-certified and backed by a 12-month warranty, it is supported by factory engineer service for metalworking facilities worldwide.
Thick-plate mild steel cutting and structural steel fabrication
Precision stainless steel cutting for equipment components
Aluminum sheet and plate processing for automotive and aerospace parts
Copper and brass sheet cutting for electrical and decorative applications
Titanium and alloy material machining for high-performance components
Bevel cutting for weld preparation in structural engineering
Complex contour metal cutting for custom machinery parts
As a zero-thermal-effect cold cutting solution, Yuanli waterjet machines are also widely applied to large slab processing in the stone and sanitaryware industry, including 45° bevel cutting for quartz and sintered stone, kitchen countertop fabrication, seamless basin processing, decorative marble inlay cutting, laminated glass pattern processing, and carbon fiber composite cutting.
Cold cutting process with zero thermal deformation and no material property change
No heat-affected zone on cut surfaces, eliminating work hardening
High-precision bevel and angle cutting capability for weld preparation
Smooth cutting edges with minimal burr formation, reducing secondary finishing
High flexibility for custom and complex design work without tooling changes
Excellent cut quality on thick-section metals up to 150mm
Stable and efficient CNC control system for long-term heavy-duty operation

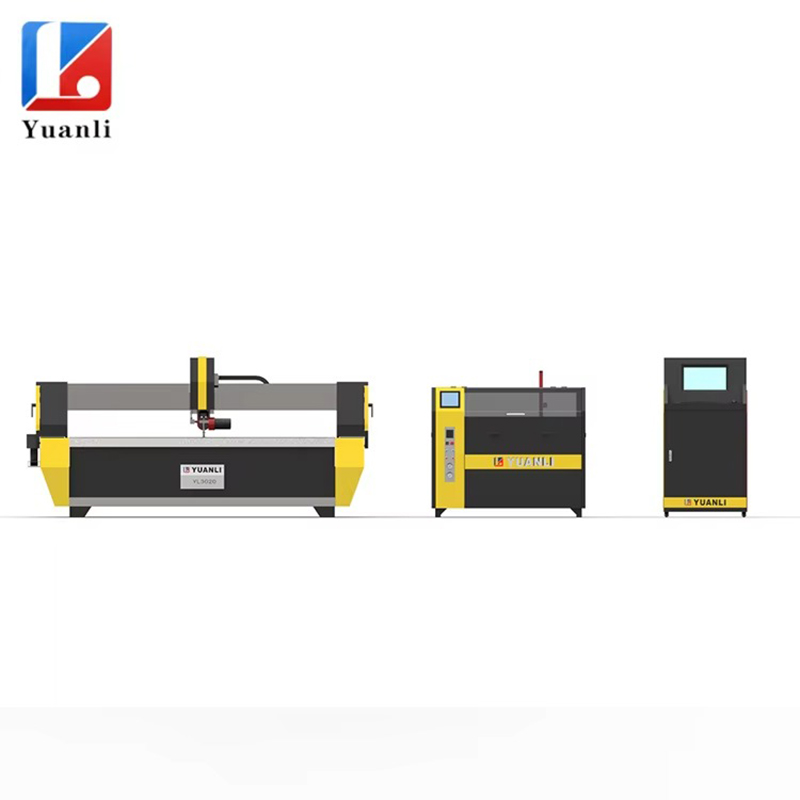

Operating on a cold-cutting principle with no thermal impact on workpieces, the Yuanli 3020 5-axis AC water jet handles angled cutting and complex geometry work for metal and stone fabrication. The 5-axis AC cutting head supports ±60° continuous articulation, enabling bevel cuts for weld preparation, seamless countertop joints and 3D contour shaping that cannot be completed in a single setup on 3-axis systems.
For metal processing, it cuts mild steel plate, stainless steel sheets, aluminum plate, copper, brass and titanium alloys with edge quality that reduces secondary finishing steps. The cold-cutting process eliminates heat-affected zones, work hardening and material distortion common with thermal cutting methods, preserving the original mechanical properties of all materials.
The machine frame uses welded steel construction normalized via stress-relief annealing to maintain structural stability during continuous operation. All three linear axes use precision-ground ball screws and linear guide rails, paired with AC servo motors for closed-loop position control.

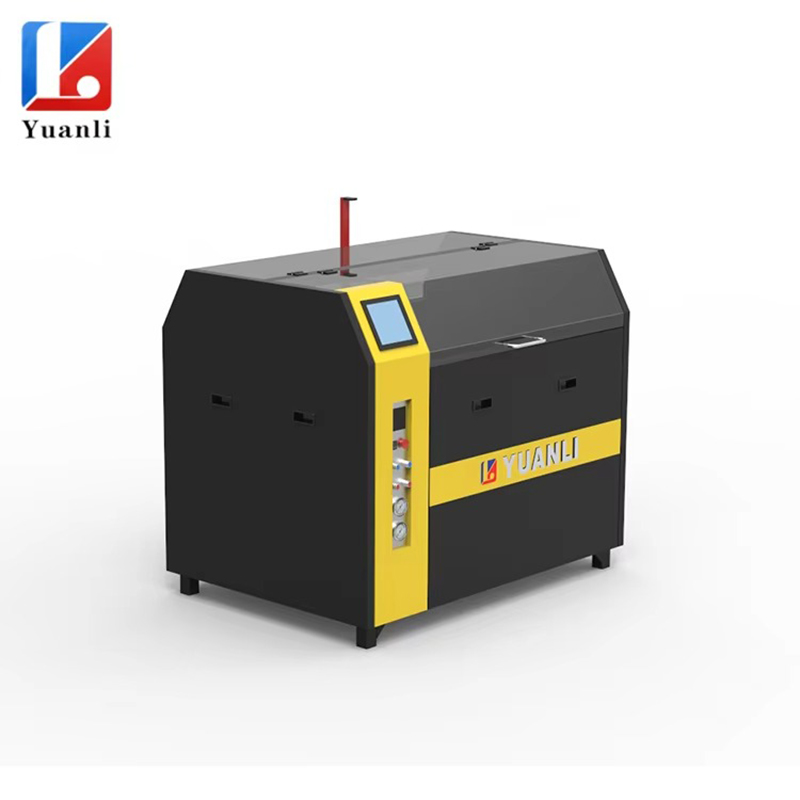

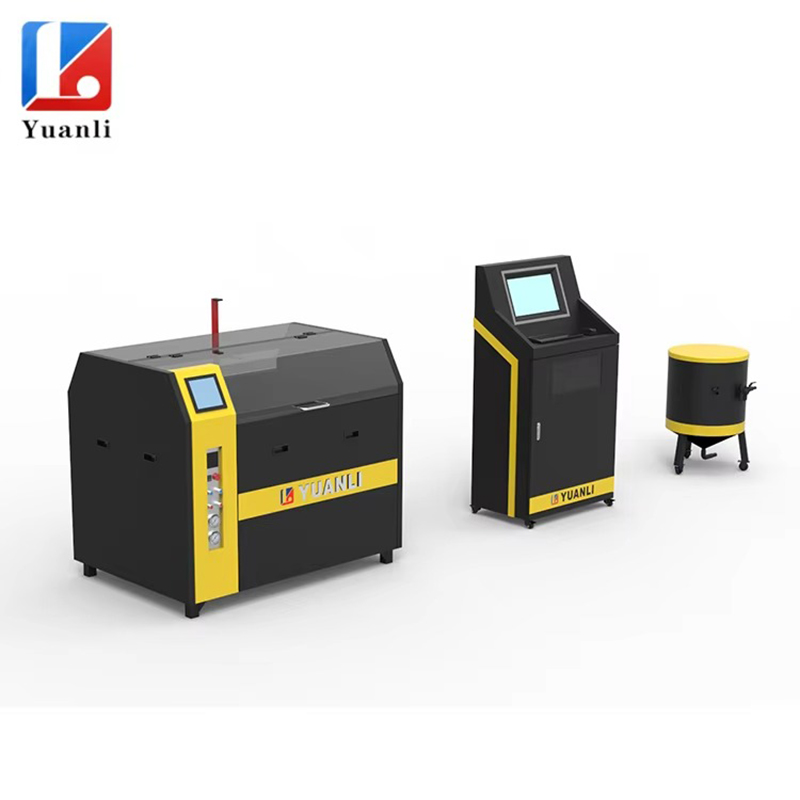

The intensifier pump delivers 420MPa operating pressure, with ceramic plungers and high-pressure seals engineered for extended service intervals. The 5-axis AC cutting head adopts a direct-drive articulation system with zero-backlash gearing to maintain consistent angle accuracy across all cutting positions.

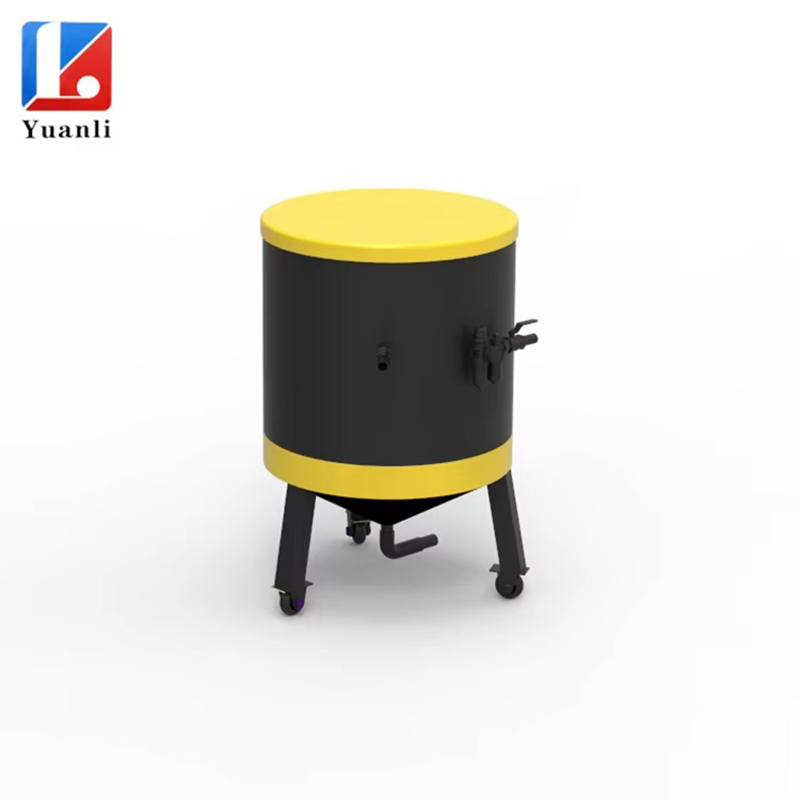

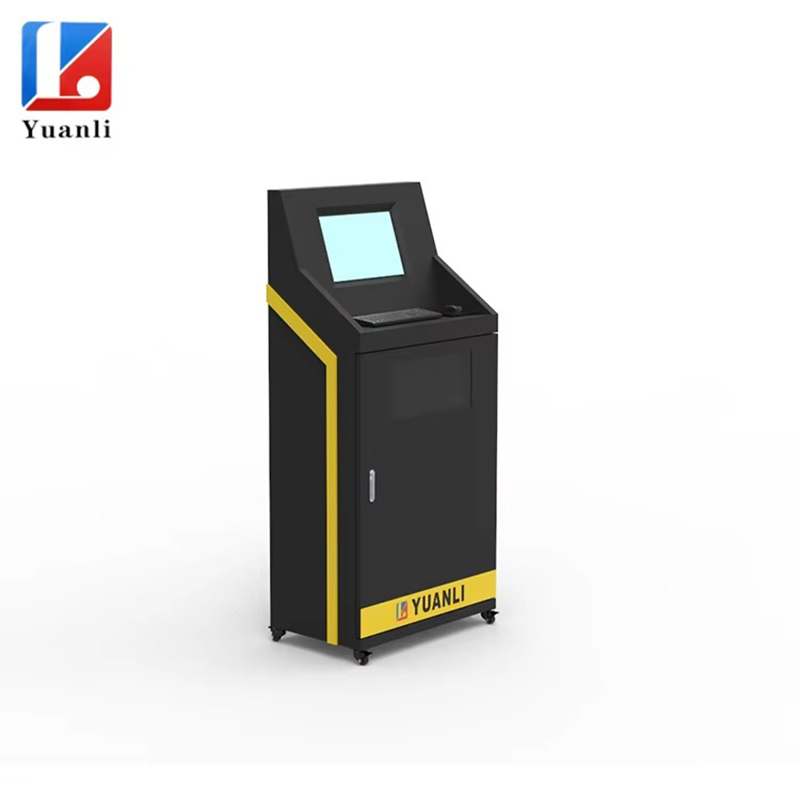

The CNC control system supports DXF, DWG and NC file import, and includes automatic nesting software to optimize material utilization and reduce scrap rates. The abrasive delivery system uses a gravity-fed hopper with precision metering to maintain consistent abrasive flow during cutting.
Specification Item | Parameter | Specification Item | Parameter |
Rated Voltage | 380V (220V/415V optional) | Core Components | PLC, Motor, Intensifier Pump |
Warranty Period | 12 Months | Rated Power Output | 37kW (49.62hp) |
Place of Origin | Foshan, China | Net Machine Weight | 4000 kg |
Brand | Yuanli | After-sales Service | On-site field service available |
Product Name | 5-Axis Water Jet Cutting Machine | Cutting Table Size | 3000mm × 2000mm |
Control Architecture | AC Servo CNC System | Cutting Precision | ±0.1mm |
Positioning Repeatability | ±0.01mm | Rapid Positioning Accuracy | ±0.025mm |
Power Frequency | 50/60Hz | Quality Certifications | ISO 9001, CE |
Axis Arrangement | 5-Axis AC Cutting Head | Max Cutting Head Swing Angle | ±60° |
Maximum Working Pressure | 420MPa | Abrasive Flow Rate | 200-500g/min |
Nozzle Diameter Range | 0.26-0.35mm | Focusing Tube Inner Diameter | 0.76-1.02mm |
X-axis Travel Speed Range | 0-15m/min | Y-axis Travel Speed Range | 0-15m/min |
Z-axis Travel Distance | 200mm | Positioning Drive Method | Ball Screw + Linear Guide |
For metal fabrication, the system cuts mild steel up to 150mm thick, stainless steel up to 120mm thick, aluminum and copper alloys up to 100mm thick, and titanium alloys for high-precision components. Its bevel cutting capability supports weld preparation cuts at standard 15° to 45° angles, eliminating secondary grinding operations in structural steel fabrication. All cuts produce no delamination or work hardening.
For stone and ceramic applications, the machine cuts marble and granite up to 200mm thick, sintered stone and porcelain slabs up to 120mm thick, and glass and ceramic materials up to 100mm thick. The 5-axis articulation allows fabricators to cut miter edges for seamless countertop joints without secondary edge processing, reducing total processing time per workpiece by 30-40%.
The system maintains ±0.1mm linear positioning accuracy across the full 3000×2000mm work envelope, with ±0.01mm repeatability for consistent production run quality. The 5-axis head maintains ±0.1° angle accuracy across all articulation positions, ensuring uniform bevel angles across large workpieces. These tight tolerances support precision assembly requirements for both stone installation and metal component fabrication.
The 37kW intensifier pump supports continuous 24-hour operation, with a recommended 15-minute cool-down after every 8 hours of continuous cutting. Focusing tubes provide 80-120 hours of cutting time before replacement; high-pressure seals require servicing every 500-600 operating hours. Automatic nesting software improves material utilization by 15-25% compared with manual layout, reducing material waste in high-volume production.
Each machine includes on-site installation and commissioning by factory-trained technicians, plus 3-5 days of operator training covering machine operation, basic maintenance and cutting parameter optimization for metal processing. Remote diagnostic capabilities allow service engineers to troubleshoot control system issues via internet connection, reducing downtime for software-related faults.
The machine includes a 12-month warranty covering manufacturing defects in materials and workmanship, with extended warranty packages available for purchase. Spare parts are stocked in regional warehouses, with standard wear parts available for shipment within 48 hours of order confirmation. Technical support is available via phone, email and video call during standard business hours.
The system processes stone including marble, granite, quartz and sintered stone; metals including mild steel, stainless steel, aluminum, copper and brass; and other materials such as glass, ceramics and composites. Material-specific cutting parameters are preloaded in the control system.
Maximum thickness varies by material: 150mm for mild steel, 120mm for stainless steel, 100mm for aluminum and copper alloys. Thicker materials can be cut at reduced travel speeds.
The standard configuration operates on 380V 50/60Hz three-phase power. 220V and 415V configurations are available as factory options.
Standard production lead time is 30-45 working days from receipt of deposit, depending on order volume and customization requirements. Shipping time varies by destination port.
On-site training covers startup/shutdown procedures, control system operation, file preparation and nesting, routine maintenance and basic troubleshooting. Additional training sessions can be arranged upon request.
