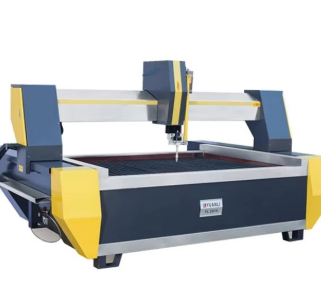

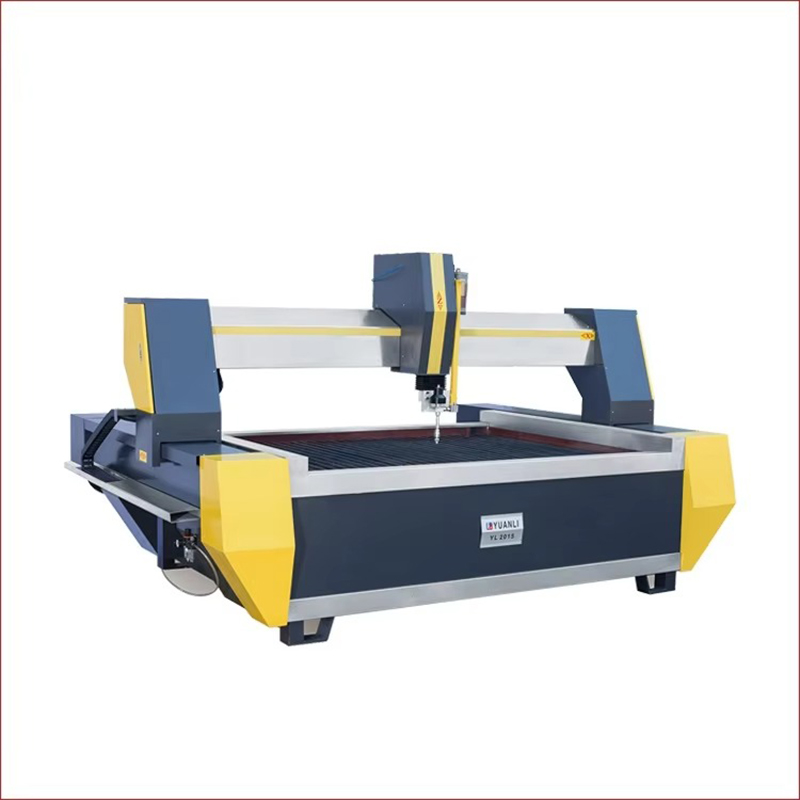

Foshan Yuanli Precision Machinery Co., Ltd. manufactures the YL2515 Water Jet cutting system with 15+ years of specialization in ultra-high pressure cutting equipment. This system utilizes cold cutting technology with no thermal effect on workpieces, making it suitable for processing materials that are sensitive to heat distortion. The equipment supports multi-material cutting operations across stone processing, metal fabrication, glass manufacturing, and composite material industries.
The system operates by pressurizing water to 380MPa and directing it through a precision orifice mixed with garnet abrasive. This process creates a focused cutting stream that removes material through erosion without generating heat-affected zones. Workpieces maintain their original material properties without warping, discoloration, or structural changes caused by thermal cutting methods. The cutting edge produces a surface finish of Ra 1.6-3.2μm, reducing requirements for secondary polishing operations.

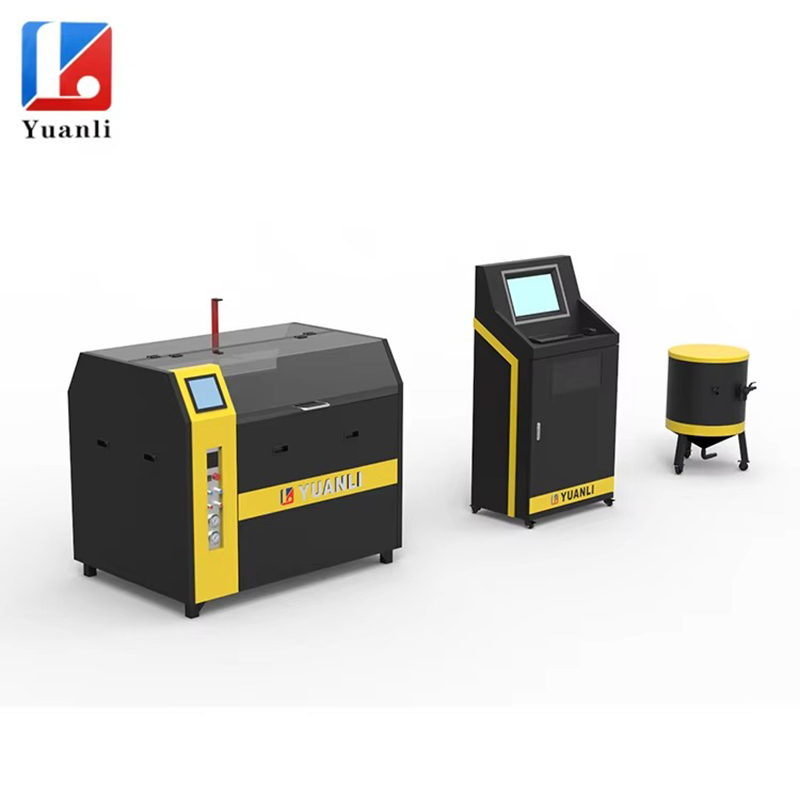

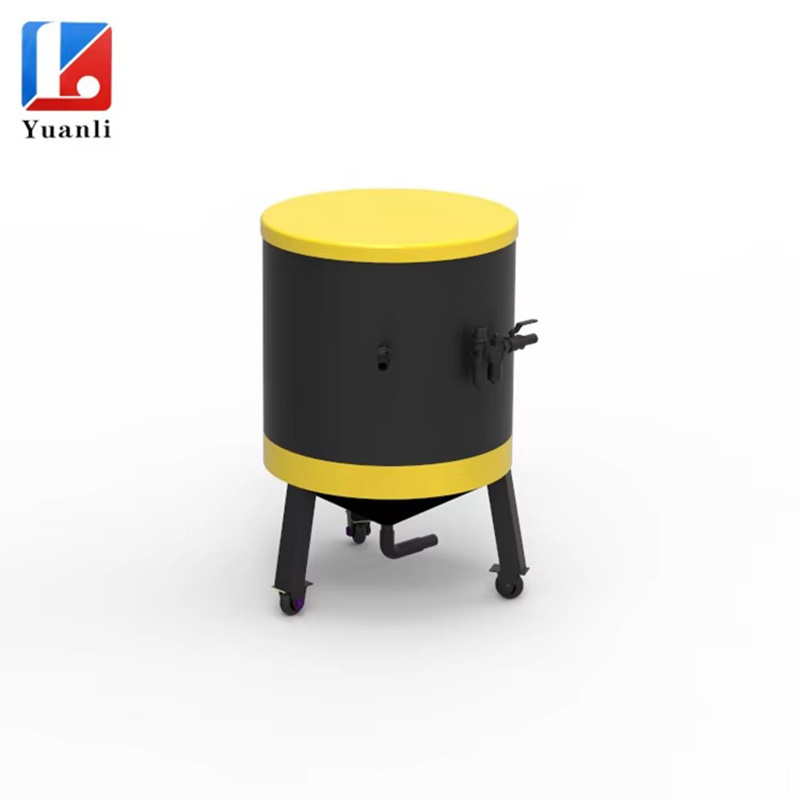

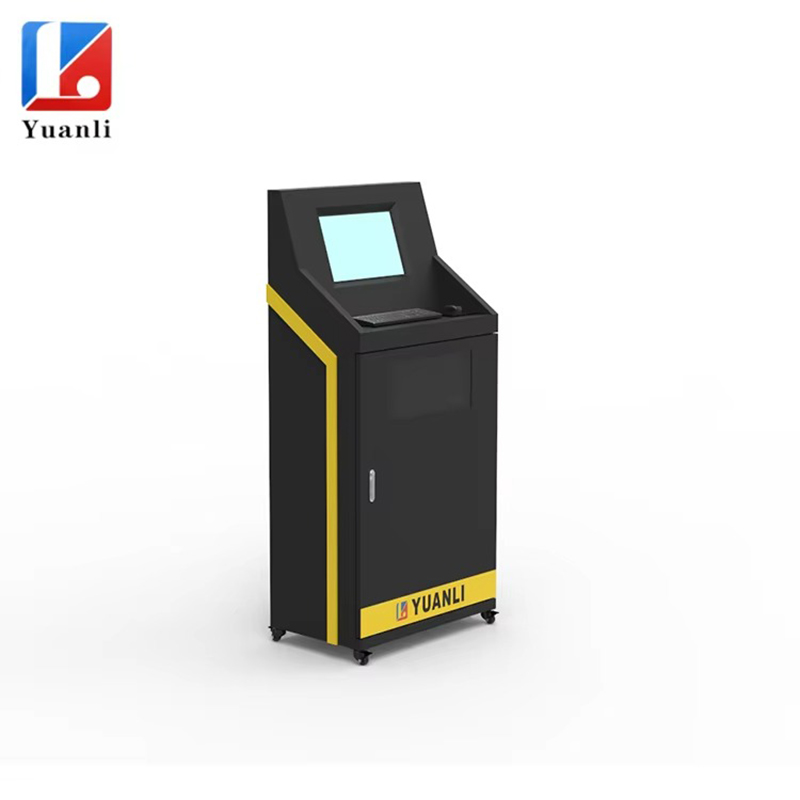

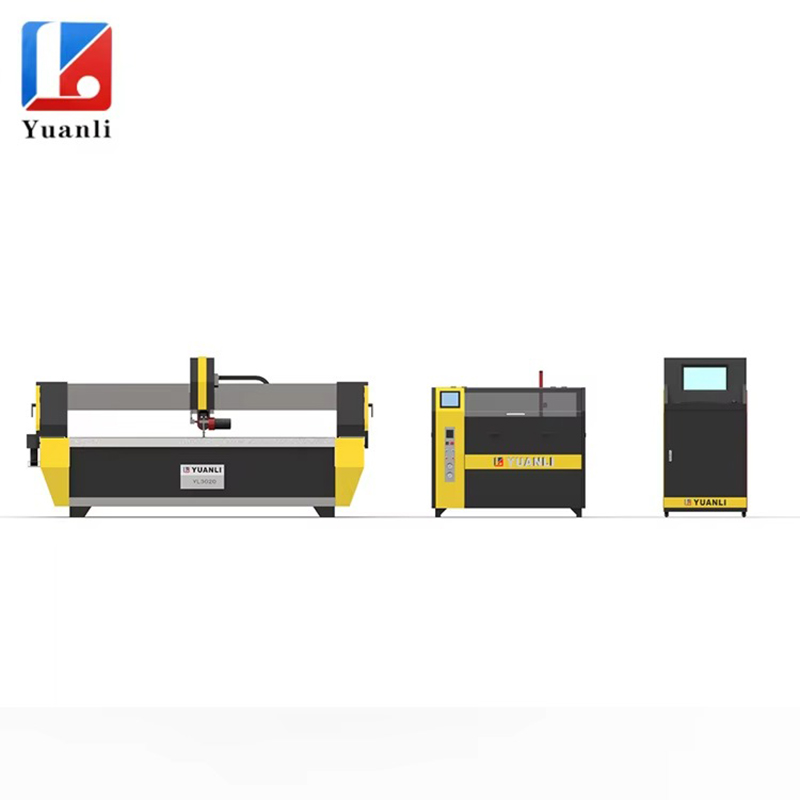

The standard configuration includes a 37kW intensifier pump, AC servo motion system, CNC control unit, cutting table, and abrasive delivery system. All core components undergo 72-hour continuous operation testing before factory delivery, with machinery test reports and video outgoing-inspection documentation provided for each unit.
Parameter | Specification | Parameter | Specification |
Product Name | Water Jet cutting machine | Brand Name | Yuanli |
Place of Origin | Guangdong, China | Rated Power | 37kW (49.62hp) |
Voltage Options | 220V/380V/415V customizable | Frequency | 50/60Hz |
X-axis Travel | 2500mm | Y-axis Travel | 1500mm |
Z-axis Travel | 200mm | Total Weight | 4250kg |
Cutting Accuracy | ±0.1mm | Repeatability | ±0.01mm |
Rapid Positioning Accuracy | ±0.025mm | Positioning Speed | 0-20000mm/min |
Maximum Working Pressure | 380MPa (55,000psi) | Cutting Speed Range | 0-15000mm/min |
Maximum Steel Cutting Thickness | 100mm | Maximum Stone Cutting Thickness | 200mm |
Nozzle Diameter Range | 0.26-0.35mm | Abrasive Specification | 60-120 mesh garnet |
Water Consumption | 3.7L/min | Overall Dimensions (L×W×H) | 4200×2800×2200mm |
Core Components | PLC, Motor, Pump | Control System | AC servo CNC system |
Certification | CE, ISO9001:2015 | Core Components Warranty | 12 months |
Complete Machine Warranty | 12 months | Machinery Test Report | Provided |
Video Outgoing-Inspection | Provided | After-Sales Service | Engineers available for overseas service |
The AC servo drive system provides synchronized motion across all axes, maintaining consistent cutting speed during complex contour operations. The ±0.1mm cutting accuracy supports production of components requiring tight dimensional tolerances, reducing material waste from cutting errors. The steel-welded machine frame undergoes stress-relief annealing to maintain structural stability during long-term operation.

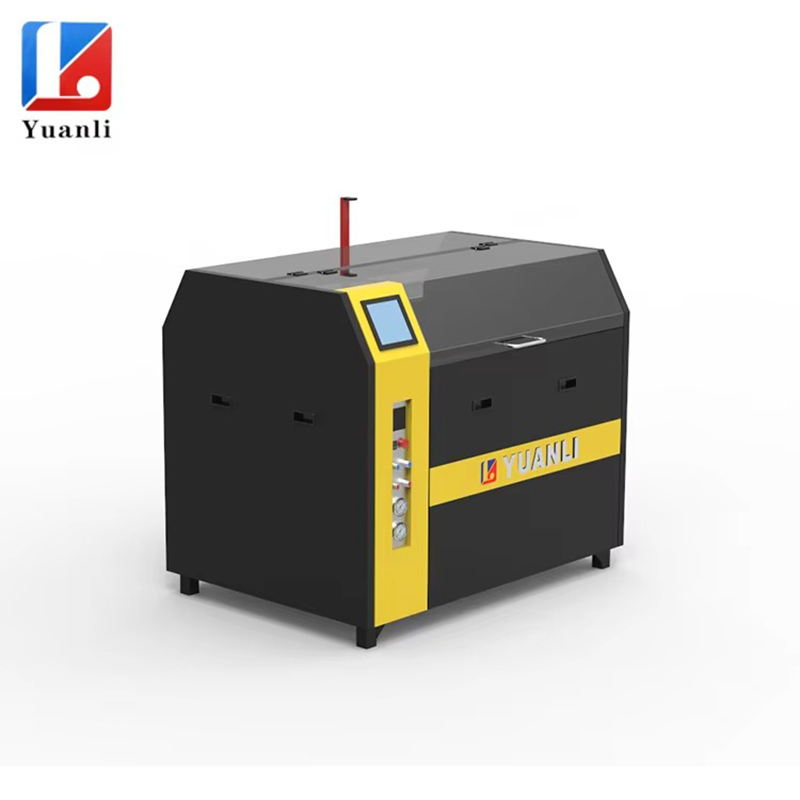

The 37kW intensifier pump delivers consistent pressure output with fluctuation controlled within ±5MPa during extended cutting sessions. The pump design includes separate high-pressure and low-pressure sections, allowing maintenance on seal components without complete disassembly. Standard configuration includes automatic pressure compensation to maintain cutting quality across different material thicknesses.
The system cuts a range of materials without requiring tool changes, including mild steel up to 100mm thickness, stainless steel, aluminum, copper, titanium alloys, marble, granite, sintered stone, laminated glass, ceramics, carbon fiber, and composite materials. This multi-material capability allows fabricators to process diverse job orders with a single piece of equipment.
The YL2515 supports multiple production workflows across different industrial sectors.
Typical applications include 45° bevel cutting for quartz and sintered stone, kitchen countertop processing, sink hole and faucet hole cutting, seamless countertop joint processing, marble and granite slab cutting, decorative stone inlay work, and complex stone pattern cutting for interior decoration projects.
The system handles mild steel thick plate cutting, stainless steel precision cutting, aluminum sheet processing, copper and brass fabrication, bevel cutting for welding preparation, complex contour metal parts, structural steel components, and mechanical engineering parts for equipment manufacturing.
Yuanli provides structured support services for commercial users to minimize equipment downtime.
The 12-month warranty covers the PLC controller, servo motors, and high-pressure pump against manufacturing defects. Warranty service includes on-site diagnosis and replacement of defective components by certified technicians. Extended warranty packages are available for customers requiring longer coverage periods.
Each unit includes installation guidance, operator training, and programming instruction at the customer facility. Technical support is available via remote connection for software troubleshooting, with spare parts stocked in regional warehouses to reduce delivery times for consumable components.
Under standard configuration with 380MPa operating pressure, the machine cuts up to 100mm mild steel, 200mm stone and concrete, 150mm glass, and 80mm aluminum and copper alloys. Thicker material cutting requires customized pressure configurations.
Standard units support 380V 50Hz three-phase power. Customization for 220V 60Hz and 415V 50Hz configurations is available for customers in North America, Australia, and Southeast Asian regions.
Standard configuration units have a production lead time of 25-30 working days from deposit confirmation. Customized configurations require additional 10-15 working days depending on specific requirements.
Regular consumables include focusing nozzles, orifices, high-pressure seals, and abrasive delivery tubes. Under standard operating conditions, focusing nozzles have a service life of 80-120 cutting hours, while high-pressure seals require replacement every 500-600 operating hours.
