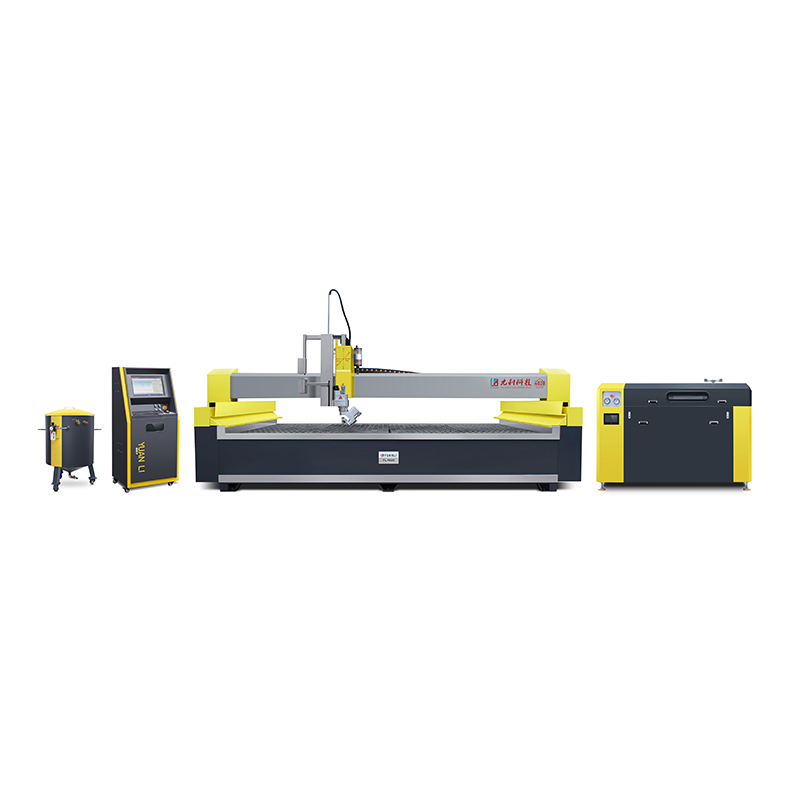

The YUANLI high-accuracy AC 5-axis water jet cutting machine operates on a fully automatic abrasive cold cutting principle with no thermal effect on workpiece material. With a 42KW power rating and five-axis motion capability, this multifunctional model targets industrial production lines requiring thick material cutting, automated operation, and multi-material processing capacity in a single system.
Parameter | Value | Parameter | Value |
Cutting accuracy | ±0.1mm | Repeatability (X/Y/Z) | ±0.025mm |
Table travel (X axis) | 2000mm | Table travel (Y axis) | 1500mm |
Table travel (Z axis) | 150mm | Number of axes | 5 |
Overall dimensions | 5200×2250×1850mm | Automation level | Fully automatic |
Core components | PLC, Motor, Electrical | Key selling point | Multifunctional |
Parameter | Value | Parameter | Value |
Rated power | 42KW (56.32hp) | Voltage | 220V/380V/415V |
Power frequency | 380V/50Hz (customizable) | Warranty period | 12 months |
Weight | 4150 kg | Place of origin | China |
Brand | YUANLI | Machinery test report | Provided |
Video outgoing-inspection | Provided | Package size | 5200×2250×1850mm |

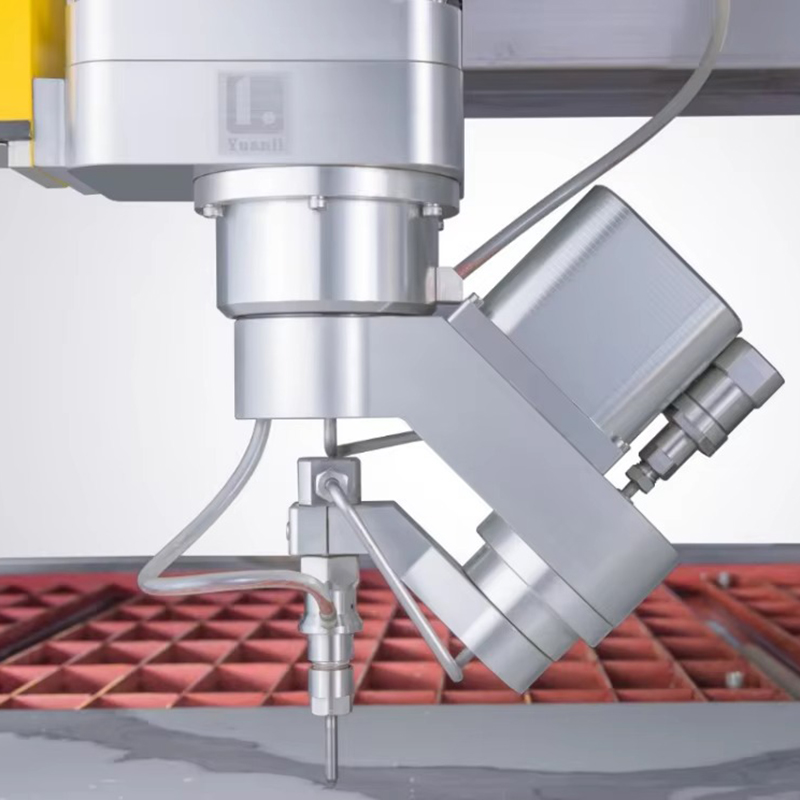

This 5-axis multifunctional system performs 45-degree bevel cutting for quartz and sintered stone, kitchen countertop manufacturing, sink and faucet hole cutting, seamless countertop joint work, marble and granite slab processing, decorative marble inlay fabrication, stone edge beveling, complex stone pattern cutting, curved stone shaping, and large-format sintered stone production.
For industrial metal applications, the machine handles mild steel thick plate cutting, stainless steel precision component fabrication, aluminum sheet and plate processing, copper and brass cutting, titanium and alloy material processing, bevel cutting for welding preparation, complex contour metal cutting, structural steel fabrication, and mechanical engineering part production. It also processes laminated glass, ceramic slabs, and carbon fiber composite materials.
The cold cutting mechanism eliminates heat affected zones and thermal deformation across all material types, preserving material structural integrity for critical industrial components. Cut surfaces show minimal burr formation, reducing secondary finishing operations and associated labor costs in production workflows.
The 42KW power configuration supports thicker material cutting compared to lower-power models, expanding the range of processable workpiece thicknesses for industrial operations. The fully automatic 5-axis system enables continuous production runs with consistent positioning performance, suitable for long-term heavy-duty processing schedules in enterprise manufacturing environments.

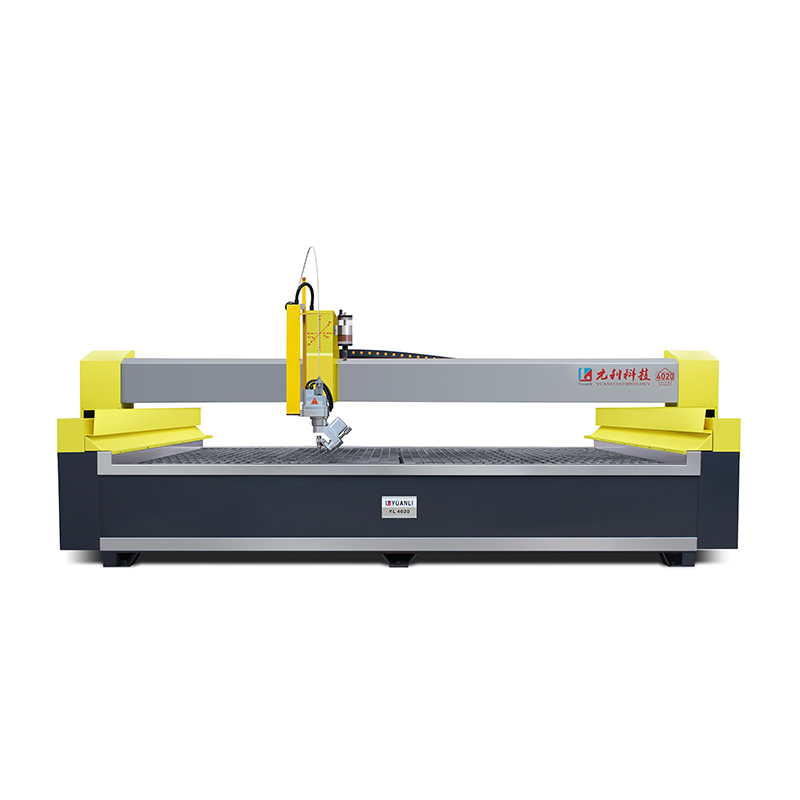

The X-axis travel measures 2000mm, the Y-axis travel measures 1500mm, and the Z-axis travel measures 150mm, with five-axis motion capability for compound angle cutting operations.
The machine has a 42KW (56.32hp) rated power output and supports 220V, 380V, and 415V electrical configurations, with 380V/50Hz as the standard configuration and custom frequency options available.

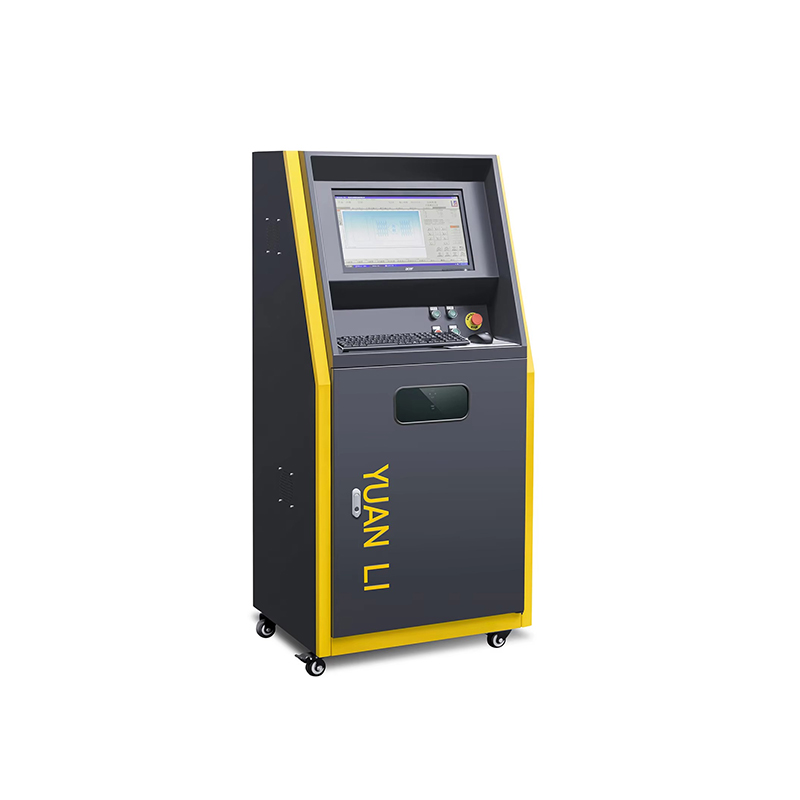

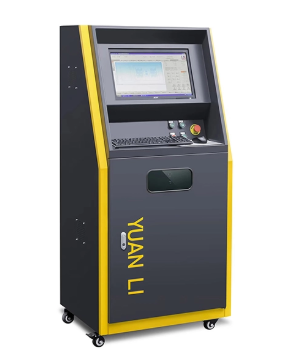

Yes, the system features fully automatic operation capability with PLC control, making it integrable into structured production workflows for industrial manufacturing facilities.
Each unit ships with a machinery test report and video outgoing-inspection documentation, backed by a 12-month warranty covering core components including the PLC system, drive motor, and electrical assembly.
