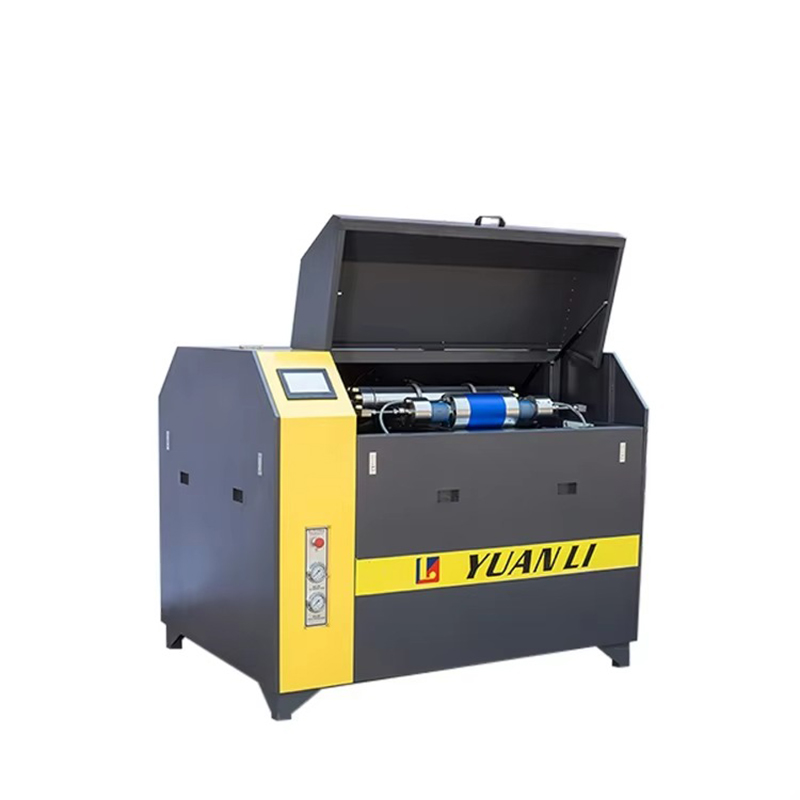

The 37kW Automatic High Pressure Intensifier Pump is a core power unit designed for Water Jet cutting systems, responsible for pressurizing filtered water to operating pressure and delivering consistent flow to cutting heads. This unit is suitable for integration into new Water Jet machines, replacement of aging pump units on existing equipment, and custom Water Jet system builds for industrial applications.

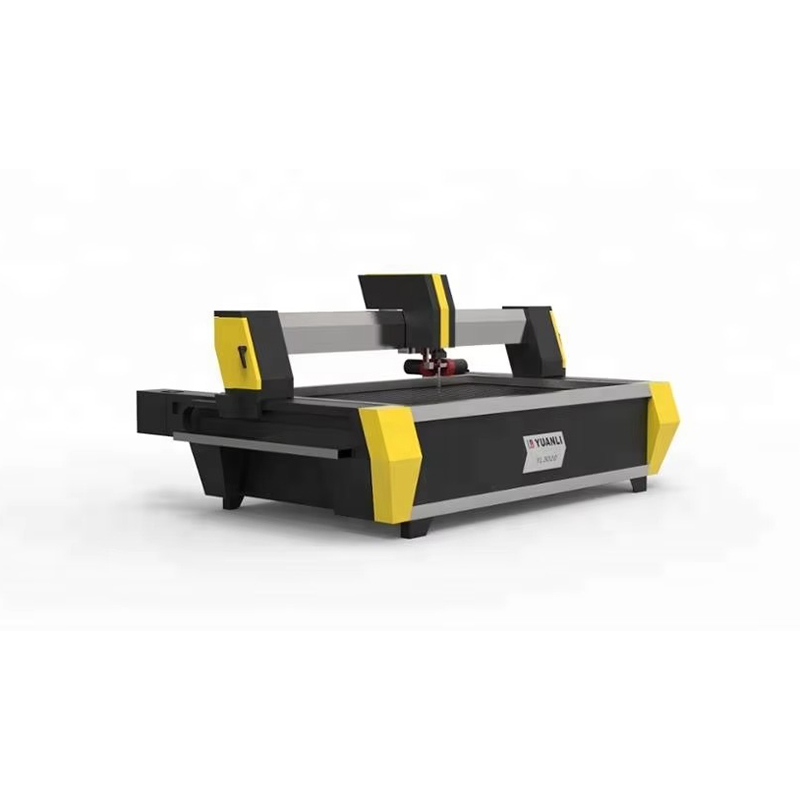

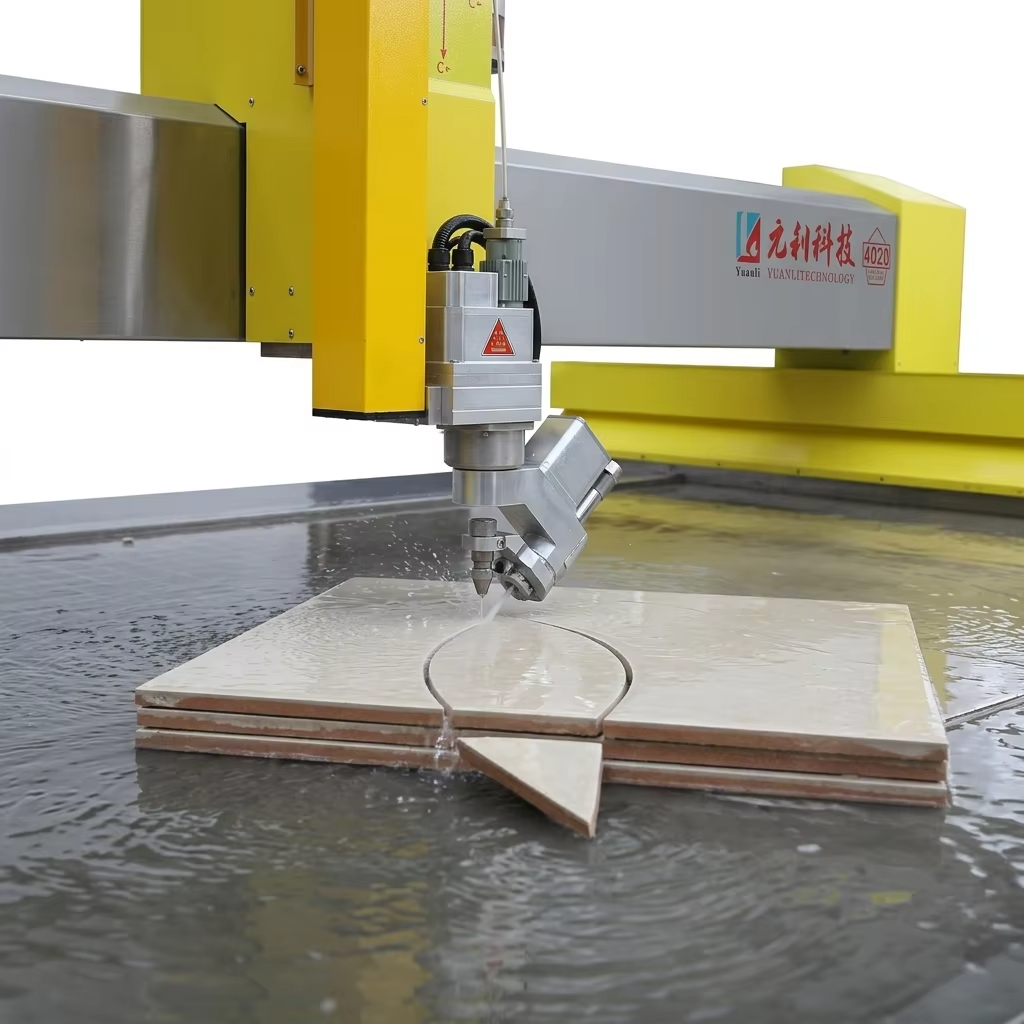

This pump pairs with 3-axis and 5-axis Water Jet cutting machines used in stone fabrication, metal processing, and composite material cutting. Its 3.7L/min flow rate supports both single-head and standard double-head Water Jet system configurations.
The unit features connection dimensions compatible with mainstream Water Jet equipment, allowing direct replacement of same-power intensifier pumps without extensive modification to existing piping or control systems, reducing equipment downtime during upgrades.
It can be integrated into custom Water Jet setups including robotic water cutting cells and dedicated cutting production lines, serving as an independent high-pressure water supply unit for specialized applications.
voltage | 380V/220V/415VAC.50/60HZ | number of axes | 5 |
core components | PLC, Motor, Pressure Vessel | machinery test report | Provided |
warranty | 1 Year | video outgoing-inspection | Provided |
dimension(l×w×h) | 1800×1300×1430mm(70.87×51.18×56.30in) | key selling points | Automatic |
rated power | 37KW(49.62hp) | place of origin | Guangdong, China |
weight (kg) | 4500 | brand name | YuanLi |
Working pressure | 320MPA | MAX flow | 3.7L/min |
Pressure | 450MPA | Water pressure | 0.4MPA |
Capacity of hydraulic oil box | 100L | Super charging ratio | 24:1 |
Max pressure of oil pump | 31.5Mpa | Weight | 1000Kg |
Certification | ISO,CE | Applicable Industries | Cutting service |
Selling Units | Single Item | Single package size | 180X130X143 cm |
Single gross weight | 1000.000 kg |
The electro-hydraulic shifting mechanism and 24:1 supercharging ratio maintain consistent pressure output during operation, keeping pressure fluctuation within standard industrial ranges to avoid uneven cut edges and maintain consistent cutting quality across long production runs.
The modular intensifier assembly allows quick replacement of wear parts such as seals without extensive disassembly. The 100L hydraulic oil tank is paired with an oil cooling system to maintain stable hydraulic oil temperature, extending oil service life and seal replacement intervals, and reducing maintenance downtime.
The unit is equipped with water inlet and return oil filtration systems to prevent contaminants from entering high-pressure components. Pressure overload protection is integrated to prevent component damage from pressure spikes during operation.
Each pump undergoes a 4-hour full-load pressure test and leak inspection before delivery, with a machinery test report and outgoing inspection video provided to confirm operational performance.
The unit includes a 12-month warranty, with remote installation guidance or on-site commissioning support available. Training for maintenance staff covers routine upkeep and troubleshooting, with long-term supply of original spare parts.
The pump requires inlet water pressure of 0.4MPa, paired with a water inlet filter with precision of 0.45μm or higher to prevent particulate damage to high-pressure cylinders.
The 3.7L/min maximum flow supports standard double cutting head configurations for most common cutting applications; parameter matching guidance is available based on specific nozzle sizes.
The pump supports 220V/380V/415V AC power at 50/60Hz, configurable to match regional power supply standards.
Contact our team to request installation dimension drawings and interface parameters to support system integration, or to discuss custom configuration requirements. (Word count: 748)
