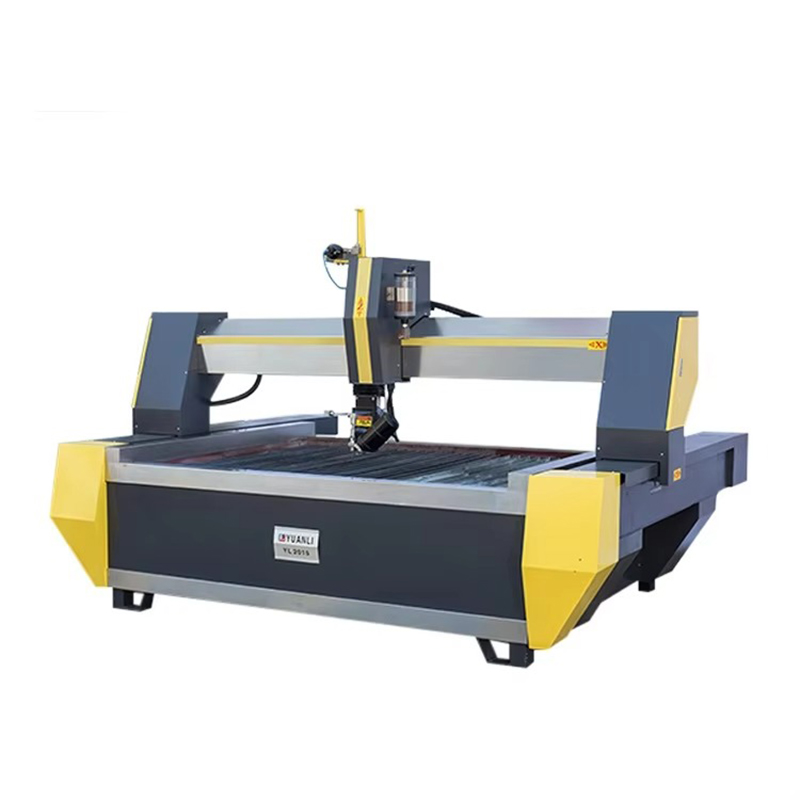

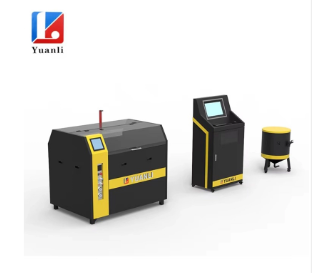

The Yuanli 3020 3 Axis CNC Water Jet Cutting Machine uses a cold cutting process with no thermal effect during operation. This model is configured for large-format material processing across stone, metal, glass, and ceramic industrial applications, supporting production workflows that require consistent cutting accuracy for both standard and complex part geometries.
This machine supports 45° bevel cutting for quartz and sintered stone, kitchen countertop processing, sink and faucet hole cutting, and seamless countertop joint processing. It also handles marble and granite slab cutting, decorative stone inlay work, edge bevel processing, complex pattern cutting, curved shaping, and large-format sintered stone fabrication. The cold cutting process avoids material chipping or discoloration associated with thermal cutting methods.
For metal processing, the unit cuts mild steel thick plates, stainless steel precision parts, aluminum sheets and plates, copper, brass, titanium, and alloy materials. It supports bevel cutting for welding preparation, complex contour cutting, industrial equipment component processing, structural steel fabrication, mechanical part cutting, and aerospace and automotive component production. Cut edges require minimal additional processing before welding or assembly.
The machine cuts laminated glass, decorative glass patterns, ceramic and porcelain slabs, carbon fiber, and other composite materials. It supports multi-material precision fabrication without requiring tool changes for different material types, reducing setup time for mixed-material production runs.
Parameter | Value | Parameter | Value |
Voltage | 220V/380V/415V | Core Components | PLC, Motor, Pump |
Machinery Test Report | Provided | Warranty | 12 Months |
Video Outgoing-Inspection | Provided | Cutting Accuracy | ±0.1mm |
Rated Power | 37kW (49.62hp) | Place of Origin | China |
Weight | 3500kg (7716.18lb) | Brand Name | Yuanli |
After-Sales Service | Engineers available to service machinery overseas | Product Name | Water Jet cutting machine |
CNC Control System | AC servo system | Repeatability | ±0.01mm |
Power Frequency | 50/60Hz | Fast Positioning Accuracy | ±0.025mm |
Packaging Details | 1. Whole machine wrapped in stretch film; 2. All spare parts covered with soft protective material to avoid transit damage | Port of Dispatch | Guangzhou/Shenzhen |
Selling Units | Single item | - | - |
The cold cutting method produces no heat affected zone (HAZ) during operation, eliminating thermal deformation of workpieces. Cut edges have minimal burrs, reducing required polishing and secondary processing steps. The process supports angle and bevel cutting with consistent tolerance across full material thicknesses.
The AC servo CNC system supports programmed cutting paths for complex and custom part designs. The ±0.01mm repeatability tolerance maintains consistent part dimensions across batch production runs. The control interface supports imported CAD files for direct path programming, reducing setup time for custom orders.
The machine frame is constructed for long-term continuous operation in heavy-duty production environments. The 3020 worktable size accommodates large-format slabs up to 3000mm × 2000mm, reducing the need for material repositioning during large part processing.
All units come with 12 months of warranty coverage covering core components. Pre-delivery inspection includes a full machinery test report and outgoing inspection video provided to buyers before shipment. Overseas engineering support is available for on-site installation, commissioning, and operator training as requested.
This model supports three voltage configurations: 220V, 380V, and 415V, compatible with 50/60Hz power systems across different regional power grids.
The unit processes stone, sintered stone, mild steel, stainless steel, aluminum, copper, brass, titanium, glass, ceramic, carbon fiber, and most composite materials without thermal damage.
Purchase includes 12 months of core component warranty, pre-delivery test reports and inspection videos, and access to overseas engineering support for on-site service as needed.

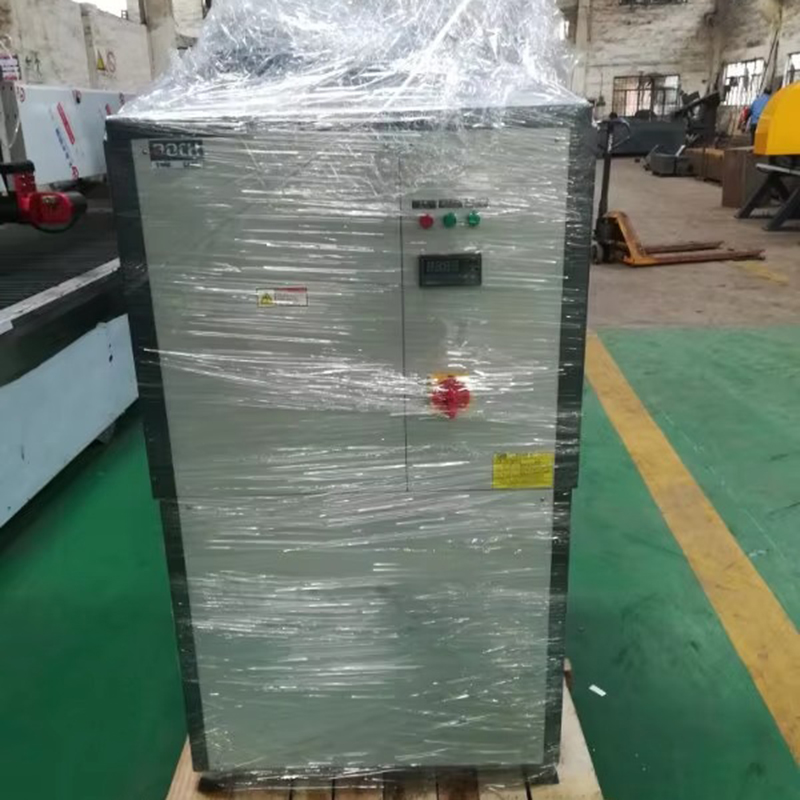

Units ship from Guangzhou or Shenzhen ports, with standard delivery including full protective packaging for the main unit and all spare parts.
