Angled Waterjet Cutting Demonstration

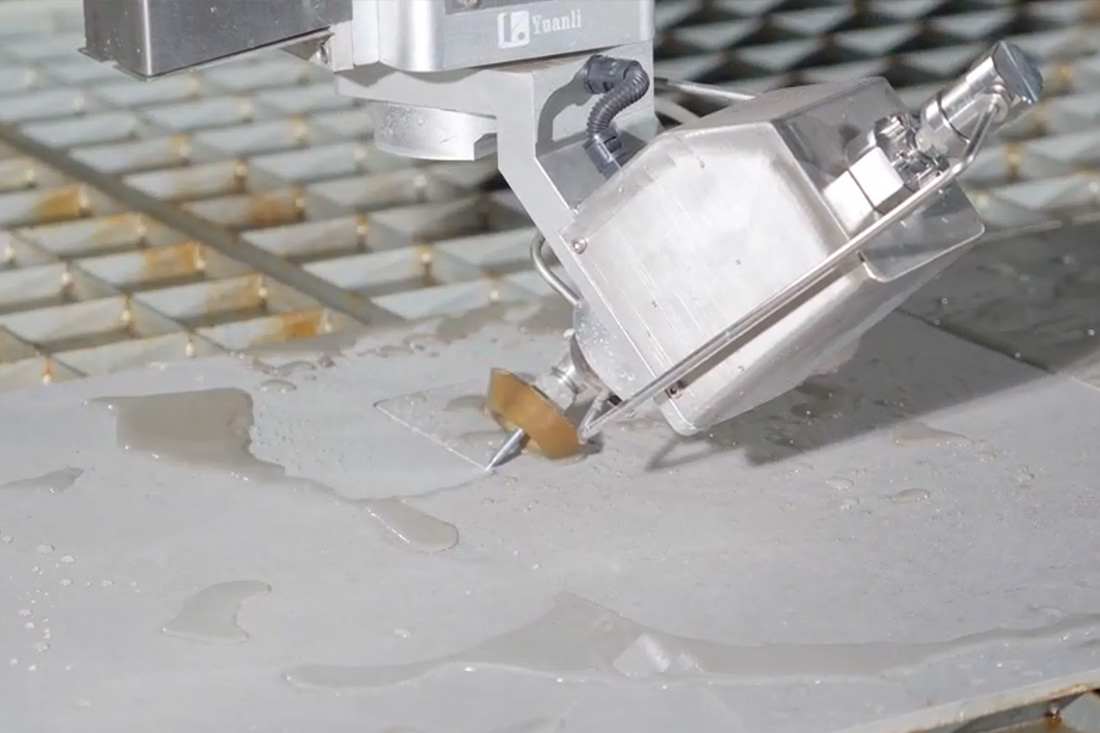

The image shows a tilted Yuanli waterjet cutting head positioned over a slab workpiece. This illustrates the cutting-head orientation used for angled processing. The image alone does not establish a specific cutting angle, material thickness or finished-part accuracy.
Defining Your Angled Cut
When requesting a bevel or angled feature, provide a drawing showing the angle reference, material thickness and required finished dimensions. These details help our team assess the cutting-head configuration and workpiece setup.
Please include:
• Material type and thickness
• Required angle and how it is measured
• Bevel direction and edge geometry
• Maximum workpiece dimensions
• Dimensional tolerances and edge-finish requirements
• Expected production volume
Discuss an AC 5-Axis Configuration
An AC 5-axis waterjet configuration can support bevels and angled cuts. The suitable working range and setup must be confirmed for your selected machine, material and drawing.
Check the Result with a Sample
Sample testing allows you to inspect the bevel, edge finish and dimensions before selecting a production configuration. Send your CAD drawing and material details to discuss a free test cut. Testing arrangements will be confirmed before the test.
